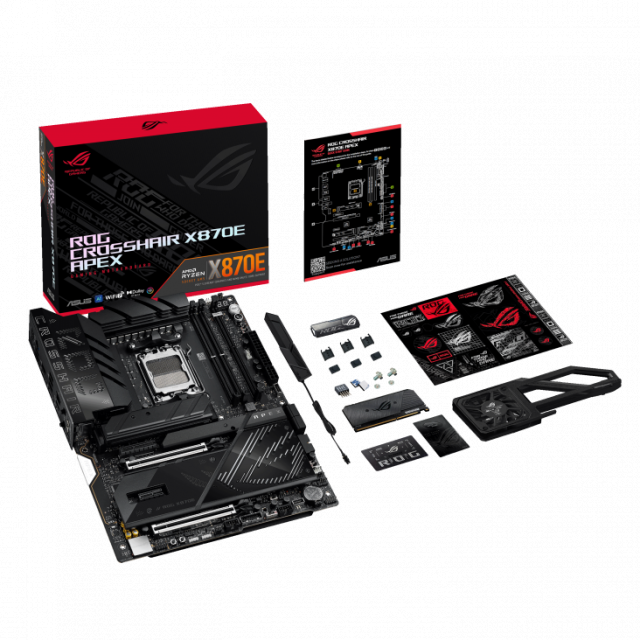

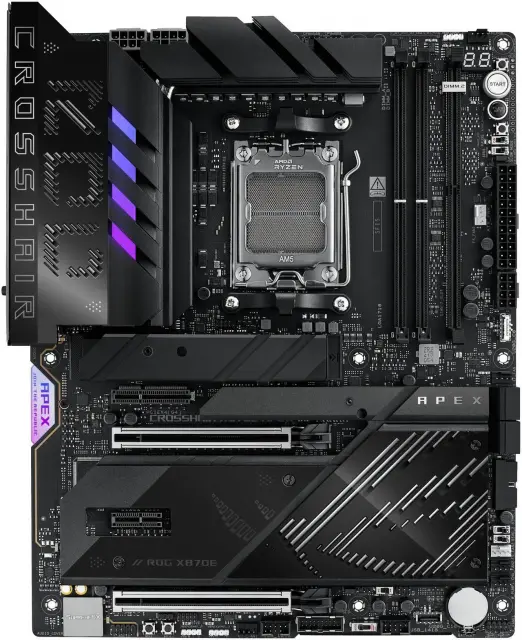

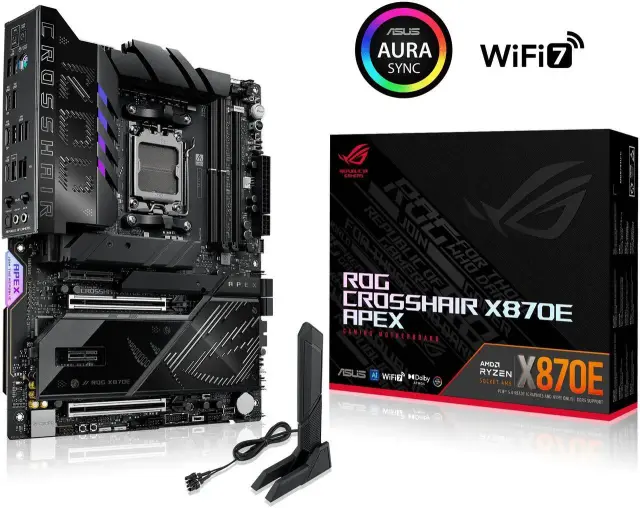

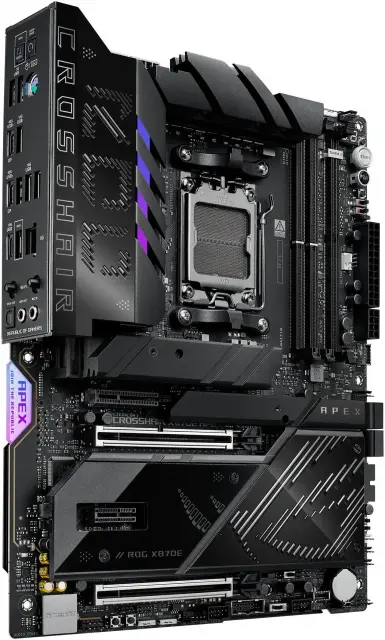

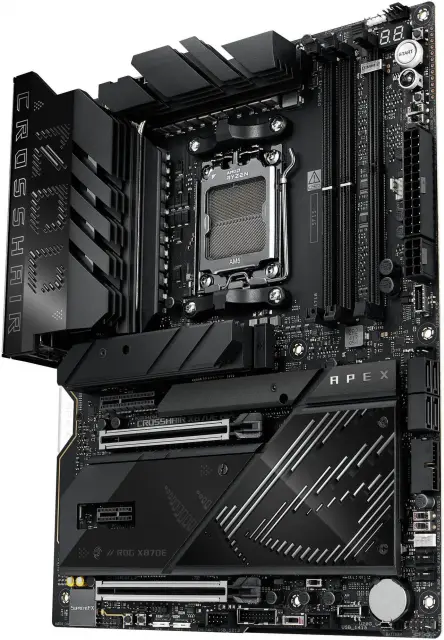

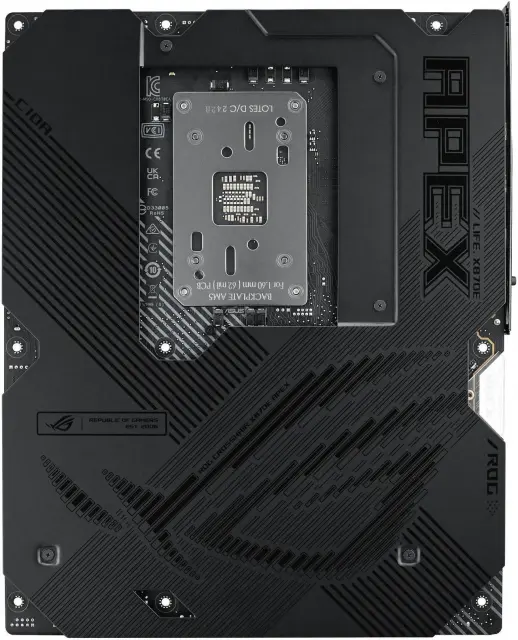

Motherboard ASUS ROG CROSSHAIR X870E APEX WIFI AM5 DDR5

The ASUS ROG Crosshair X870E Apex is a powerhouse motherboard built for extreme performance, especially in overclocking and AI computing. It’s the first Apex board designed for AMD’s AM5 platform, and it’s already making waves in the enthusiast scene.

? Key Features:

• Socket: AMD AM5 — supports Ryzen 7000, 8000, and 9000 series CPUs
• Memory: 2 DIMM slots for DDR5, up to 128 GB, with overclocking potential beyond 9600 MT/s
• Expansion:
  • 2 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 3.0 x1
• Storage:
  • 3 x PCIe 5.0 M.2 slots onboard
  • 2 x PCIe 4.0 M.2 via ROG DIMM.2 card

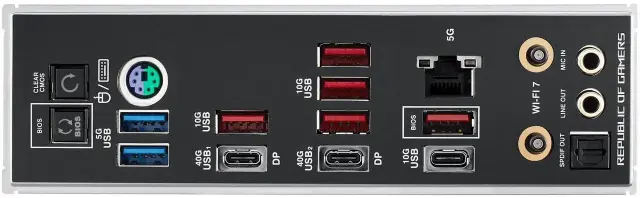

• Connectivity:
  • Dual USB4 Type-C ports
  • Wi-Fi 7 and Realtek 5Gb Ethernet
  • Multiple USB 20Gbps and 10Gbps ports

? AI & Overclocking Arsenal:

• AI Overclocking & AI Cooling II — smart tuning for performance and thermals
• Dynamic OC Switcher — toggles between manual OC and Precision Boost Overdrive
• Core Flex & Asynchronous Clock — fine-grained control over CPU and memory frequencies
• AI Cache Boost — boosts LLM performance by up to 12.75% with Ryzen 9000 CPUs

? Thermal & Power Design:

• 18+2+2 power stages (110A/110A/80A) with ProCool II connectors
• Massive heatsinks, high-conductivity thermal pads, and heatpipe cooling
• ROG Memory Fan Kit for pushing DDR5 to the limit
