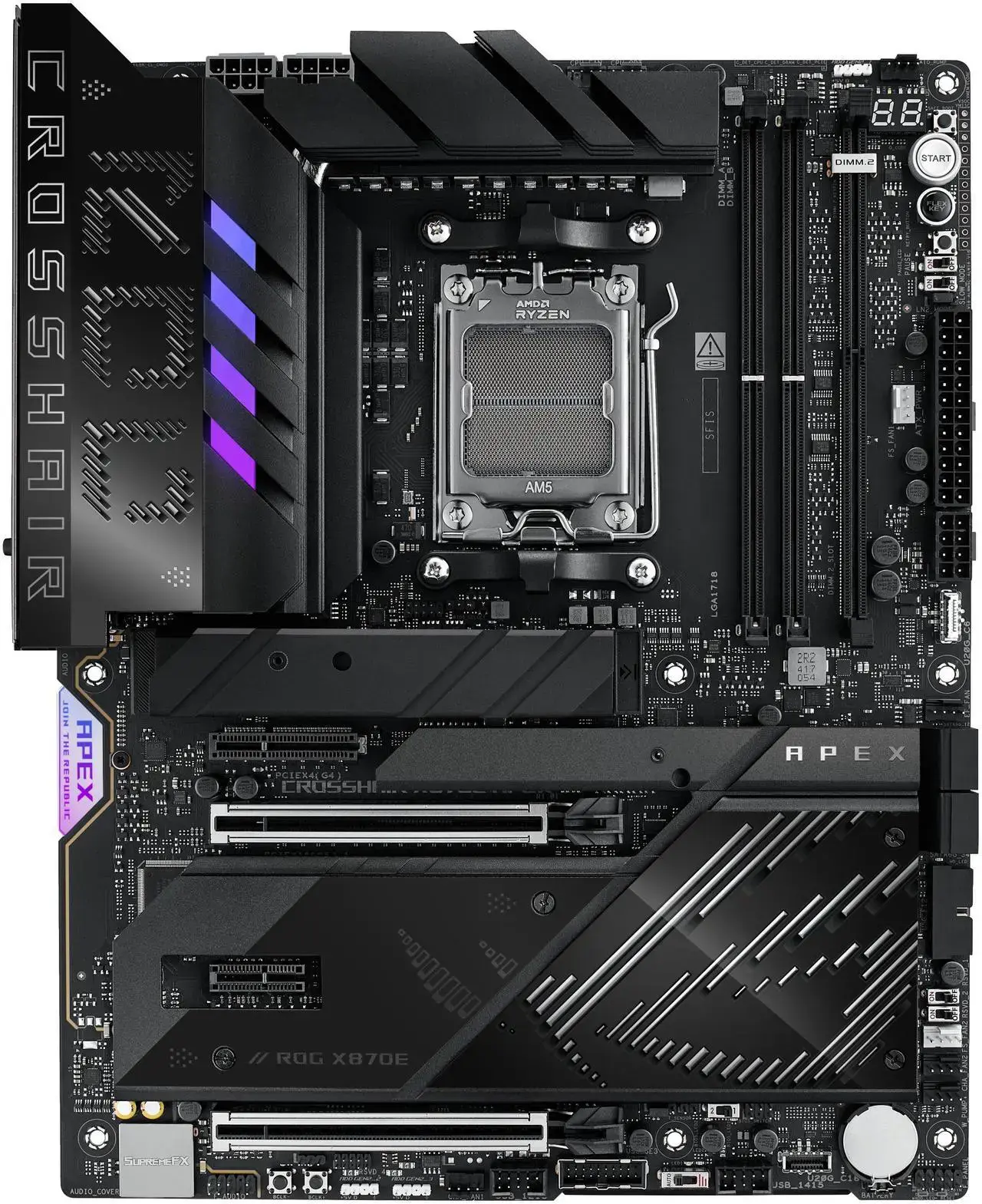

Motherboard ASUS ROG CROSSHAIR X870E APEX WIFI AM5 DDR5
Ref. number: ASUS-MB-ROG-X870E-APEX
Price: 1704.12 BGN
Specifications
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1KR0-M0EAY0 |
| Barcode | 4711387890240 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
9600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Savitech SV3H712 AMP
|
| Integrated LAN |
ASUS LAN Guard
1 x Realtek 5Gb Ethernet
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
2 x PCIe 4.0 x16 slots with Q-Release Slim
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
DIMM.2_1,2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 8-Pin PCIe Power connector
|
| Connectors |
1 x RJ-45
1 x PS/2 Mouse/Keyboard
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
1 x Clear CMOS button
1 x Wi-Fi Module
|
| USB Ports |
2 x USB 5Gbps ports Type-A
5 x USB 10Gbps ports Type-A
2 x USB4 40Gbps ports Type-C
1 x USB 10Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
2 x 256 Mb Flash ROM, UEFI AMI BIOS
|
Description
The ASUS ROG Crosshair X870E Apex is a powerhouse motherboard built for extreme performance, especially in overclocking and AI computing. It’s the first Apex board designed for AMD’s AM5 platform, and it’s already making waves in the enthusiast scene.
? Key Features:
- Socket: AMD AM5 — supports Ryzen 7000, 8000, and 9000 series CPUs
- Memory: 2 DIMM slots for DDR5, up to 128 GB, with overclocking potential beyond 9600 MT/s
- Expansion:
- 2 x PCIe 5.0 x16
- 1 x PCIe 4.0 x4
- 1 x PCIe 3.0 x1
- Storage:
- 3 x PCIe 5.0 M.2 slots onboard
- 2 x PCIe 4.0 M.2 via ROG DIMM.2 card
- Connectivity:
- Dual USB4 Type-C ports
- Wi-Fi 7 and Realtek 5Gb Ethernet
- Multiple USB 20Gbps and 10Gbps ports
? AI & Overclocking Arsenal:
- AI Overclocking & AI Cooling II — smart tuning for performance and thermals
- Dynamic OC Switcher — toggles between manual OC and Precision Boost Overdrive
- Core Flex & Asynchronous Clock — fine-grained control over CPU and memory frequencies
- AI Cache Boost — boosts LLM performance by up to 12.75% with Ryzen 9000 CPUs
? Thermal & Power Design:
- 18+2+2 power stages (110A/110A/80A) with ProCool II connectors
- Massive heatsinks, high-conductivity thermal pads, and heatpipe cooling
- ROG Memory Fan Kit for pushing DDR5 to the limit
