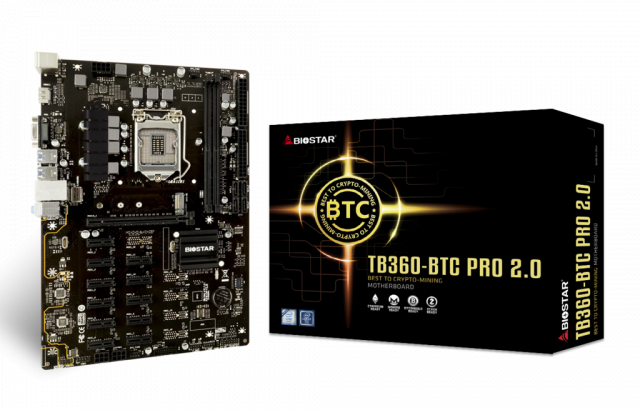

Motherboard BIOSTAR TB360-BTC PRO 2.0 Intel Socket 1151
Ref. number: BIO-MB-TB360-BTC-PRO
available
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard BIOSTAR TB360-BTC PRO 2.0 Intel Socket 1151
available
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: BIO-MB-TB360-BTC-PRO
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy

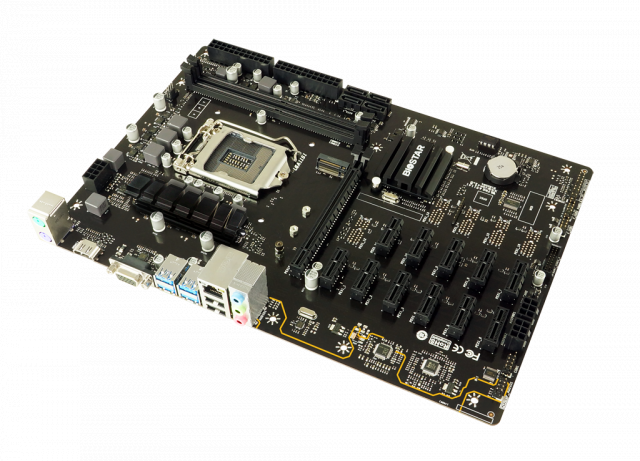

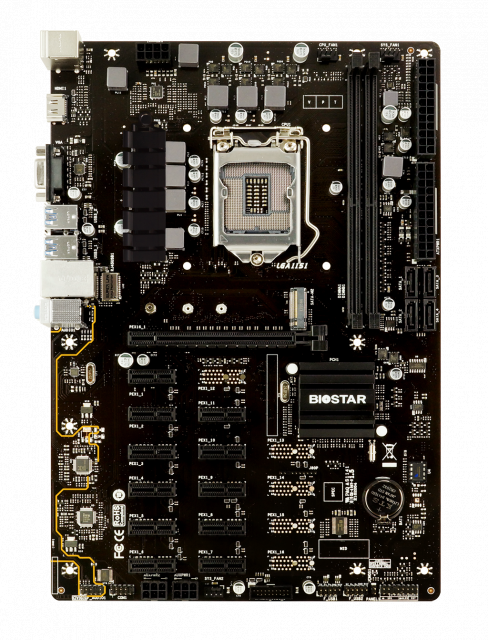

The TB360-BTC PRO 2.0 is a motherboard designed specifically for cryptocurrency mining. It supports up to 12 graphics cards with 12 PCI-E 3.0 slots, making it ideal for large-scale mining setups. Here are some of its key features:
- Dual Power Supply Support: It has two 24-pin power supply connectors, allowing you to use two power supplies simultaneously without additional setup.
- Surge Protection: Equipped with SUPER LAN Surge Protection to safeguard your mining rig against electrical surges.
- Mining Optimization: Includes a unique BIOS setting for mining mode, which is enabled by default to boost mining performance.
- Compatibility: Supports 8th and 9th Generation Intel Core processors and up to 32GB of DDR4 memory.
- Cost Efficiency: By supporting 12 GPUs, it reduces the need for additional components like CPUs, motherboards, and memory cards.
| Manufacturer | BIOSTAR |
| Warranty | 24 months |
| Product code | TB360BTC PRO 2.0 |
| Barcode | 4712960685284 |
| CPU Socket |
1151
|
| Chipset |
B360
|
| CPU supports |
8th Generation Intel
9th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
32 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
2666 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC887
|
| Integrated LAN |
10/100/1000 Mbps
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1
|
| PCI Express x4 | |
| PCI-E x1 |
11 x PCIe 3.0
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module
|
| Raid support | |
| Power Connector |
1 x 8-pin ATX 12V Power connector
2 x 24-Pin Power Connectors
|

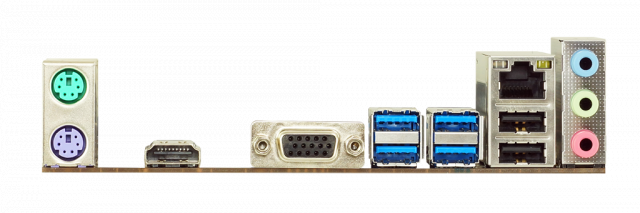

| Connectors |
1 x VGA
1 x HDMI port
1 x RJ-45
1 x PS/2 Keyboard
1 x PS/2 Mouse
3 x Audio jacks
|
| USB Ports |
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
ATX - 29.5 x 21.00 cm
|
| Other | |
| Weight | 0.704 kg |
