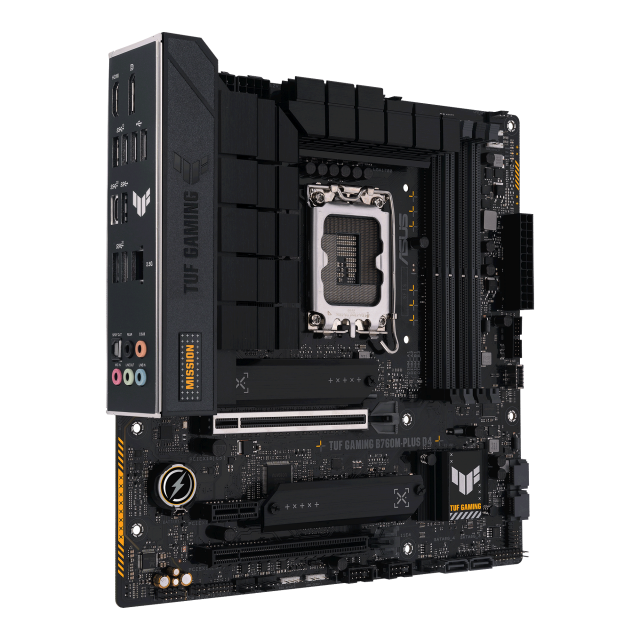

Motherboard ASUS TUF GAMING B760M-PLUS D4 - Micro ATX
Ref. number: ASUS-MB-TUF-B760M-PL-D4
not available
View availability
Няма наличност
Motherboard ASUS TUF GAMING B760M-PLUS D4 - Micro ATX
not available
View availability
Няма наличност
Ref. number: ASUS-MB-TUF-B760M-PL-D4
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1DI0-M1EAY0 |
| Barcode | 4711387005316 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
5333(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Premium audio capacitors
Audio cover
|
| Integrated LAN |
1 x Intel® 2.5Gb Ethernet
TUF LANGuard
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
| Raid support |
SATA RAID 0/1/5/10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
|
| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
|
| USB Ports |
1 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
2 x USB 2.0
1 x USB Type-C 5Gbps
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 0.848 kg |
