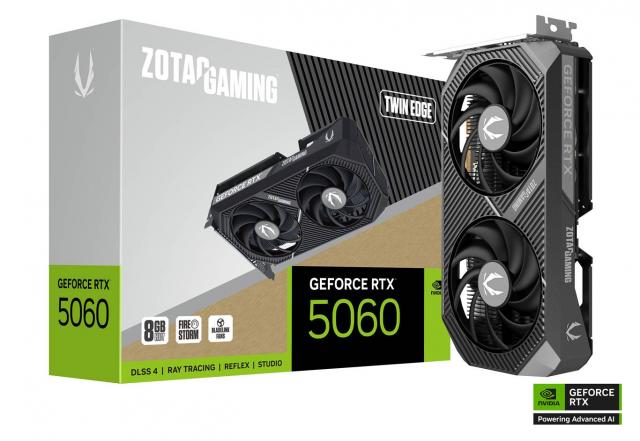

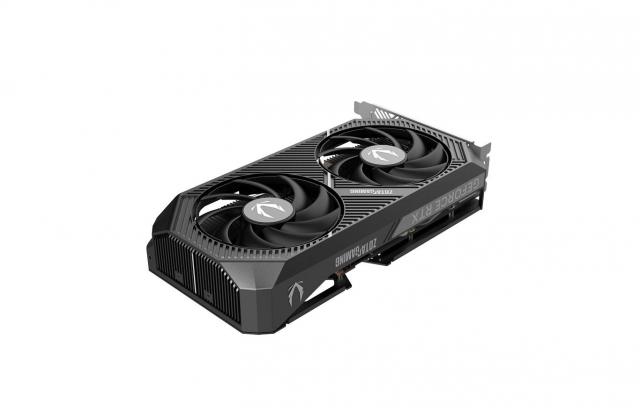

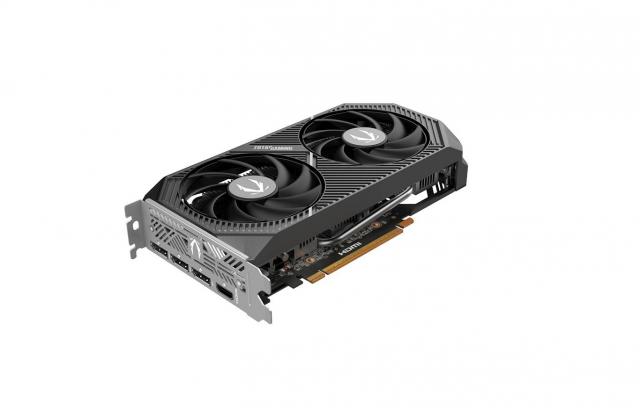

Graphic card ZOTAC GAMING RTX 5060 Twin Edge 8GB GDDR7

ZOTAC GAMING GeForce RTX 5060 Twin Edge, a compact and efficient graphics card built on NVIDIA’s latest Blackwell architecture. It’s designed for gamers who want next-gen performance in a small form factor, without the bells and whistles of factory overclocking.

Core Specs

• GPU: NVIDIA GB206 with 3840 CUDA cores
• Memory: 8GB GDDR7, 128-bit bus, 28 Gbps, 448 GB/s bandwidth
• Boost Clock: Up to 2497 MHz
• Interface: PCIe 5.0 x8
• TDP: 145W, powered via a single 8-pin connector
• Recommended PSU: 550W

Display & Connectivity

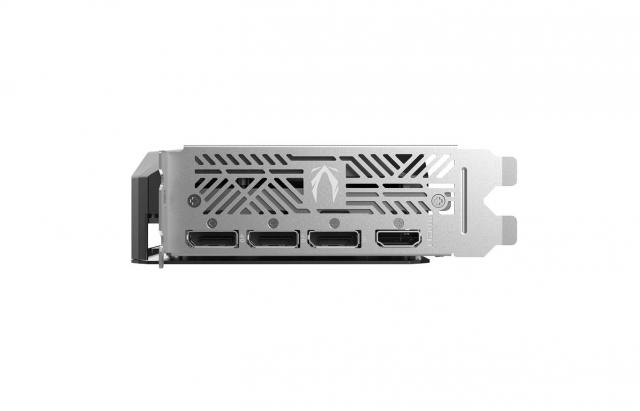

• Outputs: 3x DisplayPort 2.1b (up to 8K 165Hz with DSC), 1x HDMI 2.1b (up to 8K 120Hz HDR)
• Supports up to 4 displays, HDCP 2.3, VR Ready, and G-SYNC compatible

Cooling & Design

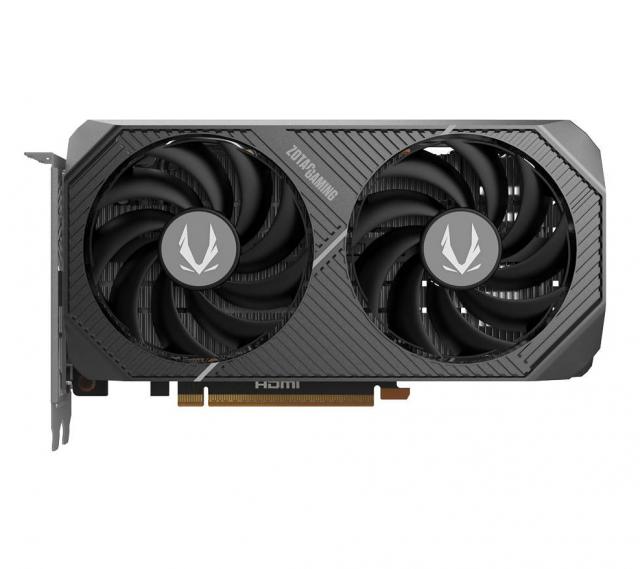

• IceStorm 2.0 cooling with dual 90mm BladeLink fans
• Composite heatpipes and pass-through airflow

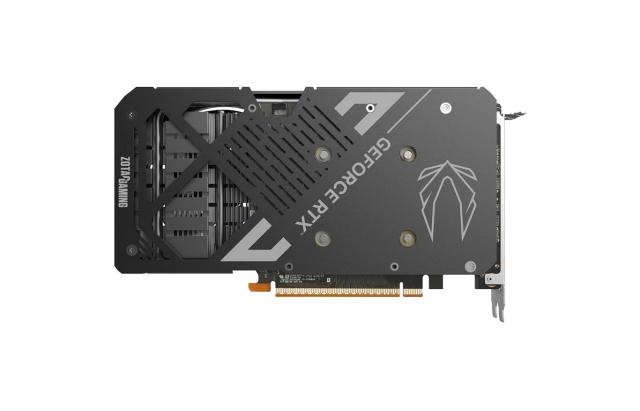

• Metal backplate and FREEZE Fan Stop for silent idle operation
• Compact dual-slot design: 220.5 x 120.25 x 41.6 mm
• SFF-Ready, making it ideal for small form factor builds

Features & Software

• DLSS 4 with Multi Frame Generation
• 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores
• NVIDIA Reflex 2, Broadcast, Studio
• Comes with the all-new ZOTAC FireStorm Utility for performance tuning
