Graphic card ZOTAC GAMING RTX 5060 Twin Edge 8GB GDDR7
Ref. number: ZOTAC-VC-N5060-8GB-TW
Price: 693.18 BGN
Specifications
| Manufacturer | ZOTAC |
| Warranty | 36 months |
| Product code | ZT-B50600E-10M |
| Barcode | 8886307701534 |
| Сhipset |
nVIDIA
|
| Processor graphics |
GeForce RTX 5060
|
| AI Performance | |
| CPU Frequency (MHz) |
2497 MHz
|
| CUDA Core |
3840
|
| Memory Size |
8 GB
|
| Frequency Memory |
28 Gbps
|
| Memory type |
GDDR7
|
| Memory Bus (bits) |
128 b
|
| Interface |
PCI Express 5.0
|
| Type of cooling |
Actively
|
| Max. resolution |
7680 x 4320
|
| Video outputs |
1 x HDMI 2.1
3 x DisplayPort 2.1
|
| Recommended PSU |
550W
|
| Power connectors |
1 x 8-pin
|
| Number of slots |
Dual Slot
|
| Size (mm) |
220.5 x 120.25 x 41.6 mm
|
| Other specifications |
DirectX 12 API
DLSS 4.0
SFF Ready
|
Description

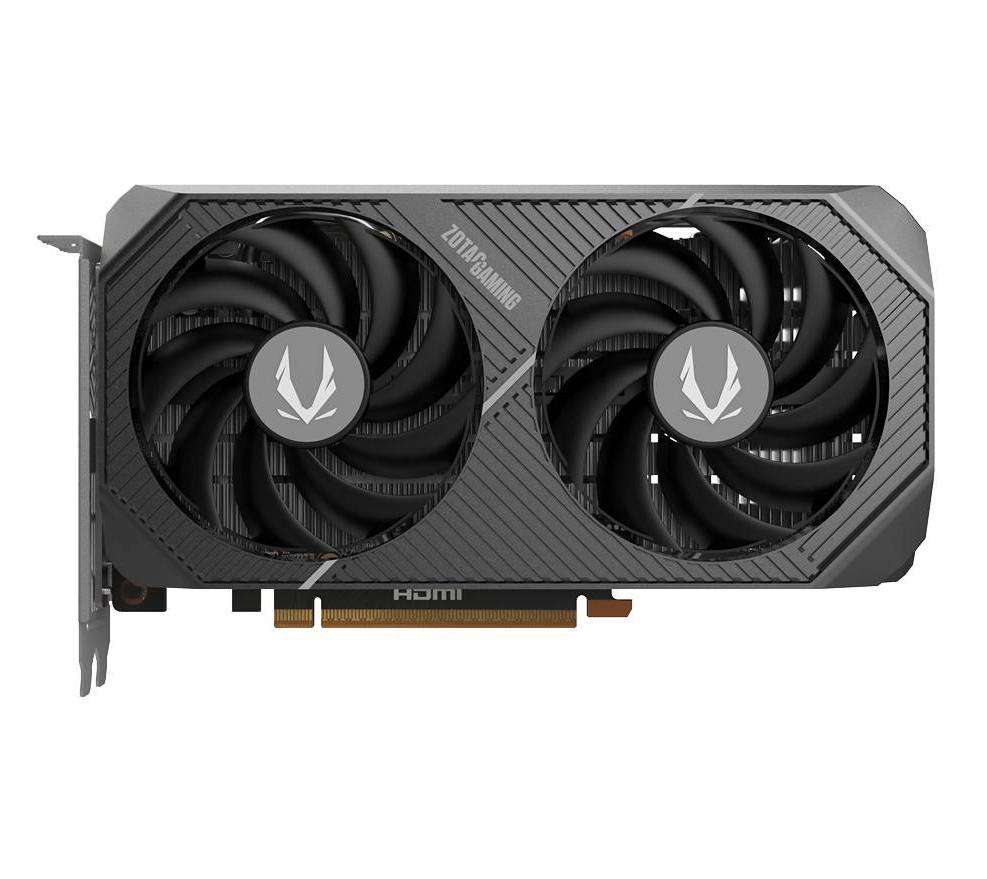

ZOTAC GAMING GeForce RTX 5060 Twin Edge, a compact and efficient graphics card built on NVIDIA’s latest Blackwell architecture. It’s designed for gamers who want next-gen performance in a small form factor, without the bells and whistles of factory overclocking.
Core Specs
- GPU: NVIDIA GB206 with 3840 CUDA cores
- Memory: 8GB GDDR7, 128-bit bus, 28 Gbps, 448 GB/s bandwidth
- Boost Clock: Up to 2497 MHz
- Interface: PCIe 5.0 x8
- TDP: 145W, powered via a single 8-pin connector
- Recommended PSU: 550W
Display & Connectivity
- Outputs: 3x DisplayPort 2.1b (up to 8K 165Hz with DSC), 1x HDMI 2.1b (up to 8K 120Hz HDR)
- Supports up to 4 displays, HDCP 2.3, VR Ready, and G-SYNC compatible
Cooling & Design
- IceStorm 2.0 cooling with dual 90mm BladeLink fans
- Composite heatpipes and pass-through airflow
- Metal backplate and FREEZE Fan Stop for silent idle operation
- Compact dual-slot design: 220.5 x 120.25 x 41.6 mm
- SFF-Ready, making it ideal for small form factor builds
Features & Software
- DLSS 4 with Multi Frame Generation
- 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores
- NVIDIA Reflex 2, Broadcast, Studio
- Comes with the all-new ZOTAC FireStorm Utility for performance tuning
