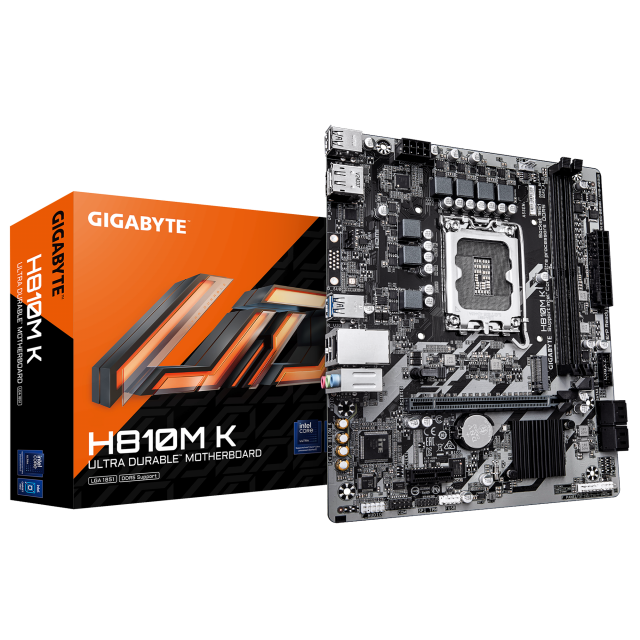

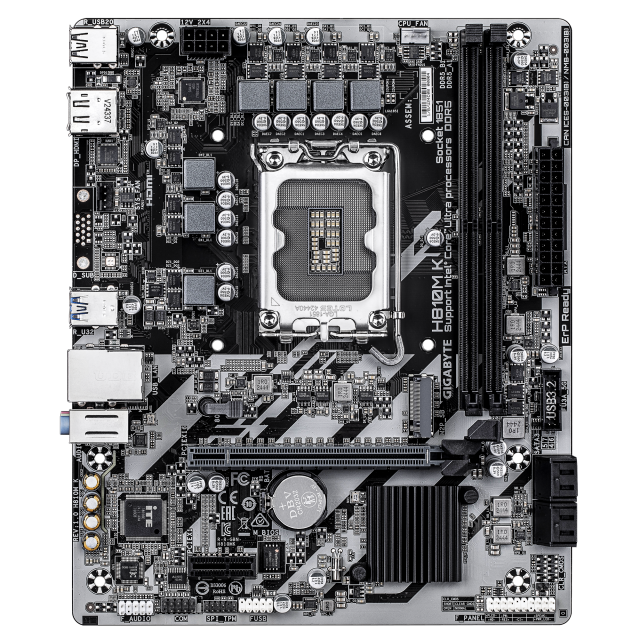

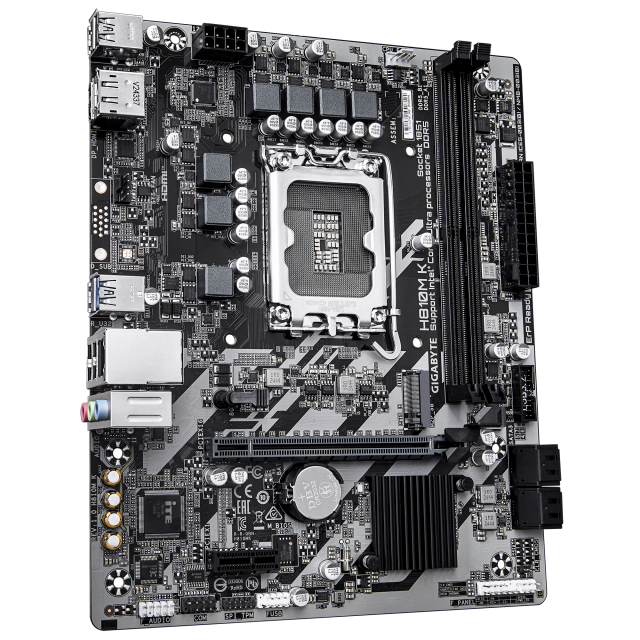

Motherboard GIGABYTE H810M K, LGA 1851
Ref. number: GA-MB-H810M-K
available
View availability
Шереметя
Motherboard GIGABYTE H810M K, LGA 1851
available
View availability
Шереметя
Ref. number: GA-MB-H810M-K
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The GIGABYTE H810M K is a modern and efficient micro‑ATX motherboard built for Intel Core Ultra (Series 2) processors, offering DDR5 support, solid VRM design, PCIe 4.0 storage capability, and reliable connectivity. It delivers a stable, future‑ready platform ideal for everyday computing, productivity, and compact PC builds.
- CPU Support: Designed for Intel® Core™ Ultra (Series 2) processors using the LGA1851 socket.
- Power Design: Features a 3+1+2 phase hybrid VRM solution for stable and efficient power delivery.
- Memory: Supports DDR5 memory up to 6400 MT/s with 2 DIMM slots and a maximum capacity of 128 GB.
- Storage: Includes a PCIe 4.0 M.2 slot for high‑speed NVMe SSDs.
- Graphics Outputs: Offers DisplayPort 2.1 with support for up to 3840×2160@60 Hz when using compatible CPUs.
- Connectivity: Equipped with 1 GbE LAN and USB 3.2 Gen 1 ports for fast and reliable data transfer.
- Cooling: Smart Fan 6 technology ensures quiet, customizable, and efficient cooling performance.
- Durability: Built with GIGABYTE Ultra Durable™ standards for long‑lasting reliability and stable operation.
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | H810M K |
| Barcode | 4719331868697 |
| CPU Socket |
1851
|
| Chipset |
Intel H810
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
6400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek GbE LAN (10/100/1000 Mbit)
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|
| Connectors |

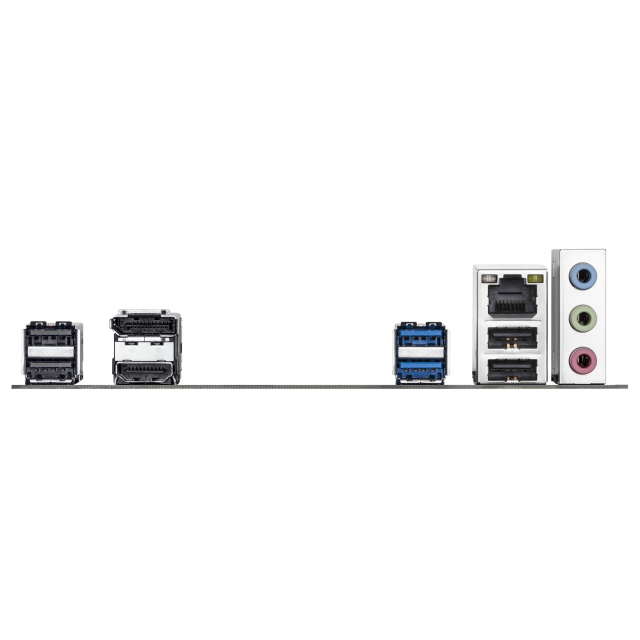

1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Micro ATX - 22.6 x 18.5 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.104 kg |
