New
Motherboard GIGABYTE H810M H, LGA 1851
Ref. number: GA-MB-H810M-H
available
View availability
Шереметя
New
Motherboard GIGABYTE H810M H, LGA 1851
available
View availability
Шереметя
Ref. number: GA-MB-H810M-H
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The GIGABYTE H810M H is a reliable and feature-packed motherboard designed for Intel processors. Here are some of its key features:
- Socket and Chipset: It supports the LGA 1851 socket and is built on the Intel H810 chipset, making it compatible with Intel Core Ultra processors (Series 2).
- Memory: Equipped with two DDR5 slots, it supports up to 128 GB of RAM with speeds of up to 6400 MT/s (overclocked).
- Expansion Slots: Includes one PCIe 4.0 x16 slot for high-performance GPUs and one PCIe 3.0 x1 slot for additional expansion cards.
- Storage: Offers four SATA ports with RAID support (RAID 0, 1, 5, 10) and one PCIe 4.0 M.2 slot for high-speed SSDs.
- Connectivity: Features USB 3.2 Gen 1 and USB 2.0 ports, HDMI and D-Sub video outputs, and a Realtek GbE LAN chip for network connectivity.
- Audio: Comes with Realtek Audio CODEC for 7.1-channel surround sound.
- Form Factor: It has a Micro-ATX form factor, making it suitable for compact PC builds.
This motherboard is a great choice for users looking to build a budget-friendly yet capable system.
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | H810M H 1.0 |
| Barcode | 4719331869540 |
| CPU Socket |
1851
|
| Chipset |
Intel H810
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
6400(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek GbE LAN (10/100/1000 Mbit)
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

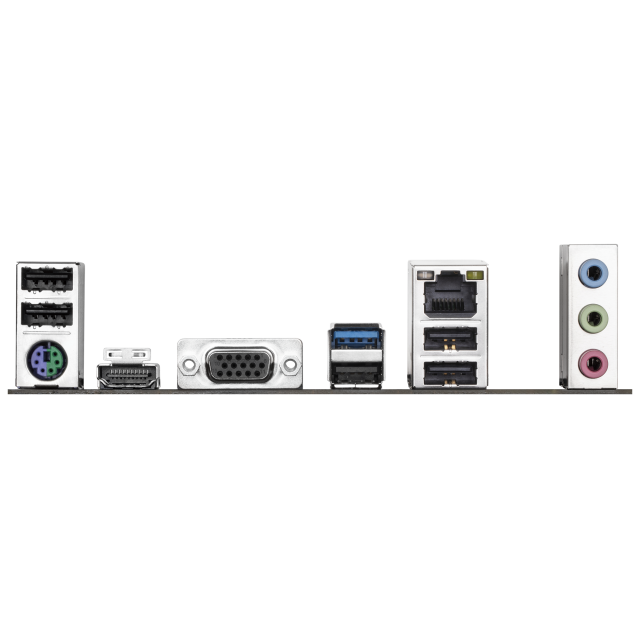

| Connectors |
1 x VGA
1 x HDMI port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
1 x USB 3.2 Gen 1
5 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 21.1 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.104 kg |
