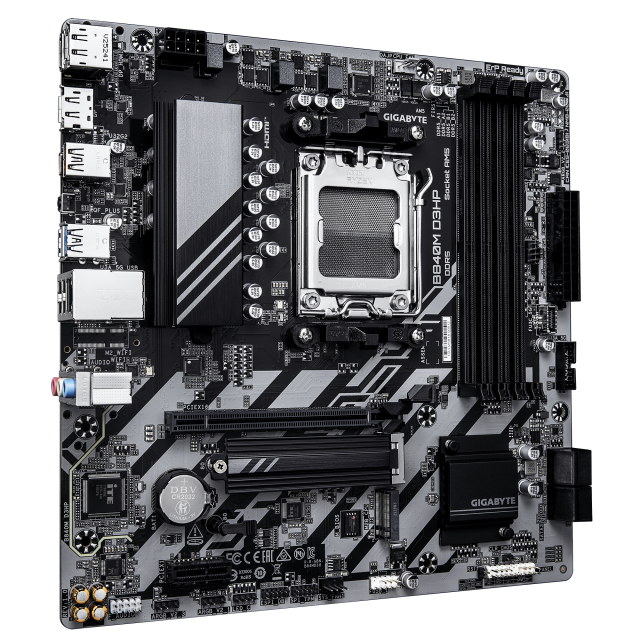

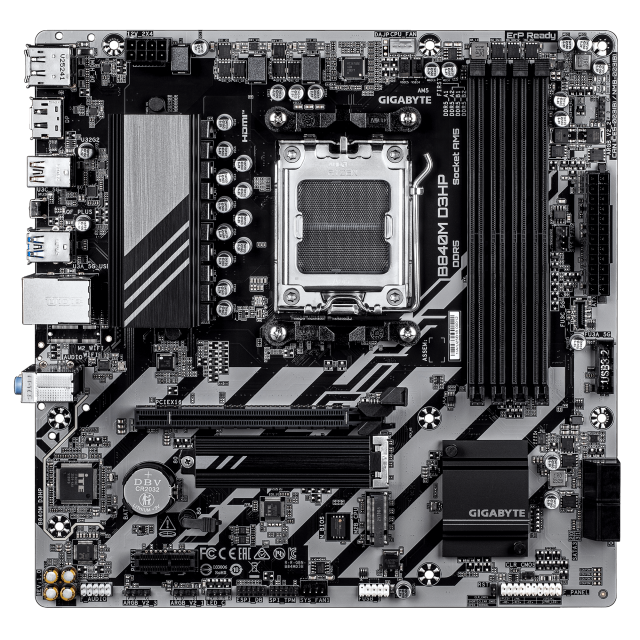

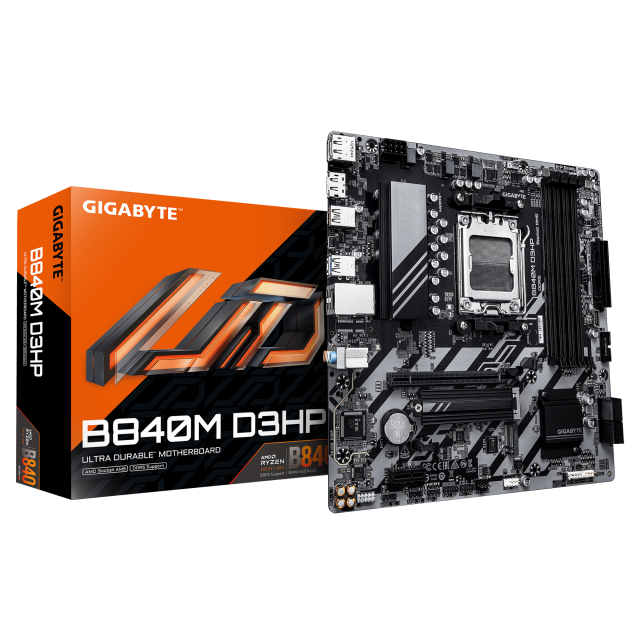

The GIGABYTE B840M D3HP is a compact AM5 motherboard designed for modern AMD Ryzen processors, offering strong power delivery, DDR5 support, and fast PCIe 4.0 connectivity. It’s built for stable performance, efficient thermals, and an easy DIY experience, making it a solid choice for gaming‑focused and productivity‑oriented builds.
- Processor Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 Series CPUs thanks to its AM5 socket.
- Power Design: Features an 8+2+2 digital VRM setup with premium components for stable power delivery.
- Memory: Supports 4× DDR5 DIMMs in dual‑channel configuration for high‑speed, next‑gen memory performance.
- Storage: Includes 2× PCIe 4.0 M.2 slots for fast NVMe SSDs.
- Expansion: Offers a PCIe 4.0 x16 slot with UD reinforcement plus a PCIe 3.0 x1 slot.
- Gaming Features: X3D Turbo Mode enables one‑click optimization to boost gaming performance, even on non‑X3D Ryzen CPUs.
- Build Quality: 6‑layer PCB with mid‑loss materials and UD solid‑pin power connectors for durability and reliability.
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B840M D3HP |
| Barcode | 4719331879761 |
| CPU Socket |
AM5
|
| Chipset |
AMD B840
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|

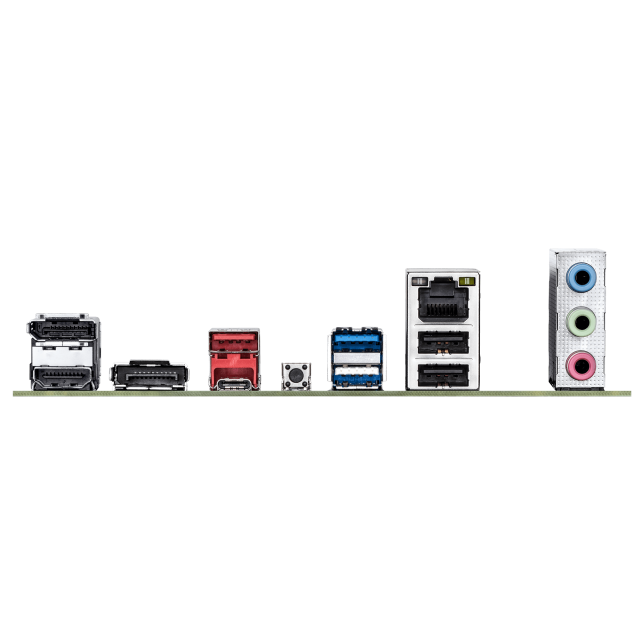

| Connectors |
1 x HDMI port
2 x Display Port
1 x RJ-45
3 x Audio jacks
1 x Q-Flash Plus button
|
| USB Ports |
1 x USB 3.2 Gen 1
1 x USB 3.1 Gen 2
3 x USB 2.0
1 x USB 3.2 Gen1 Type-C
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 0.604 kg |
