Motherboard ASUS X870 MAX GAMING WHITE WiFi7 AM5 DDR5
Ref. number: ASUS-MB-X870-MAX-G-WF-W
available
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard ASUS X870 MAX GAMING WHITE WiFi7 AM5 DDR5
available
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: ASUS-MB-X870-MAX-G-WF-W
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy

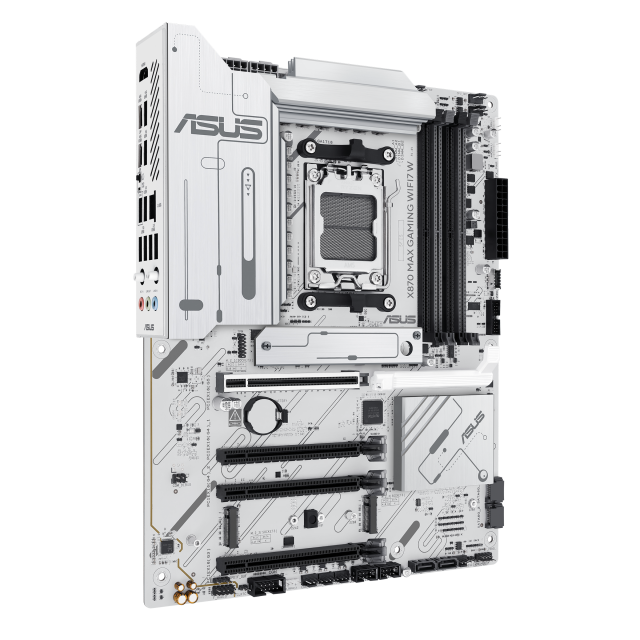

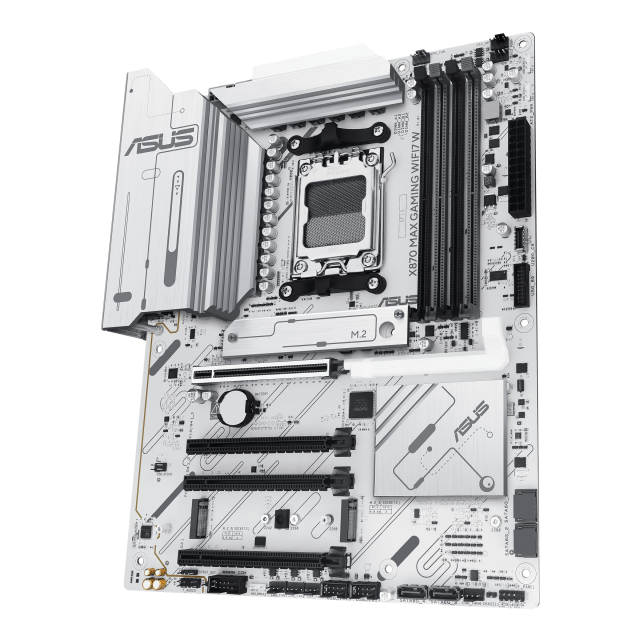

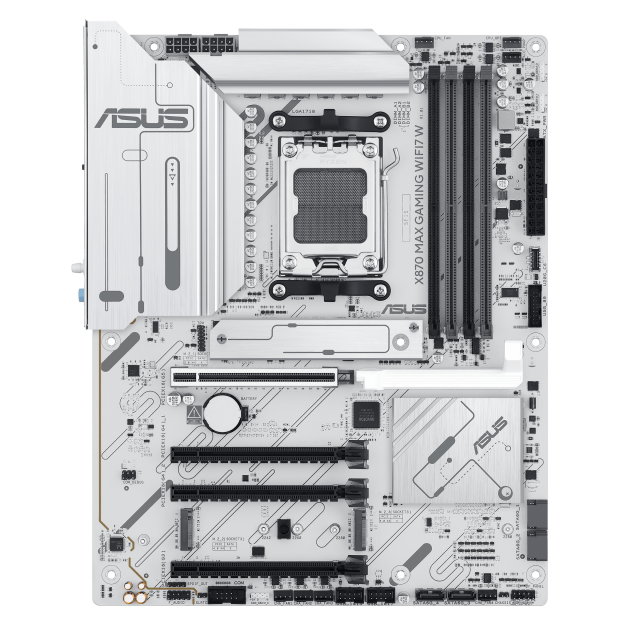

The ASUS X870 MAX GAMING WIFI7 is a high-performance motherboard designed to support AMD Ryzen™ 9000, 8000, and 7000 series processors on the AM5 socket. It features DDR5 memory support, Wi-Fi 7 connectivity, and PCIe 5.0 x16 for next-generation GPUs.
Key Features:
- Powerful Performance: 12+2+1 80A DrMOS power stages ensure stable power delivery.
- Advanced Connectivity: Wi-Fi 7, USB4 Type-C (40Gbps), 2.5Gb LAN, and multiple M.2 slots.
- Cooling & Customization: AI Cooling II, Aura Sync RGB lighting, and Q-Release PCIe slot for easy GPU installation.
- DIY-Friendly Design: Pre-mounted I/O shield, BIOS FlashBack, and Q-Antenna for seamless setup.
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1LZ0-M0EAY0 |
| Barcode | 4711636007856 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
ASUS LANGuard
1 x Realtek 2.5Gb Ethernet port
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot (supports x16 mode)
1 x PCIe 4.0 x16 slot (supports x4 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
3
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|

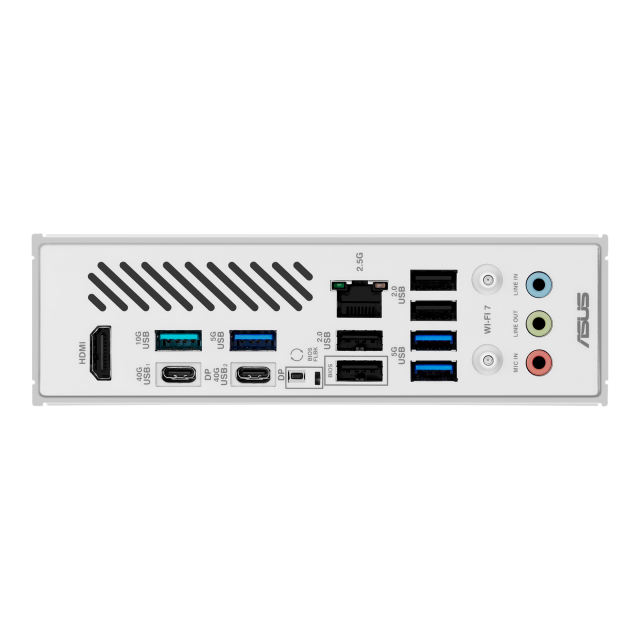

| Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
1 x Wi-Fi Module
|
| USB Ports |
4 x USB 2.0
3 x USB 5Gbps ports Type-A
1 x USB 10Gbps port Type-A
2 x USB4 40Gbps ports Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.240 kg |
