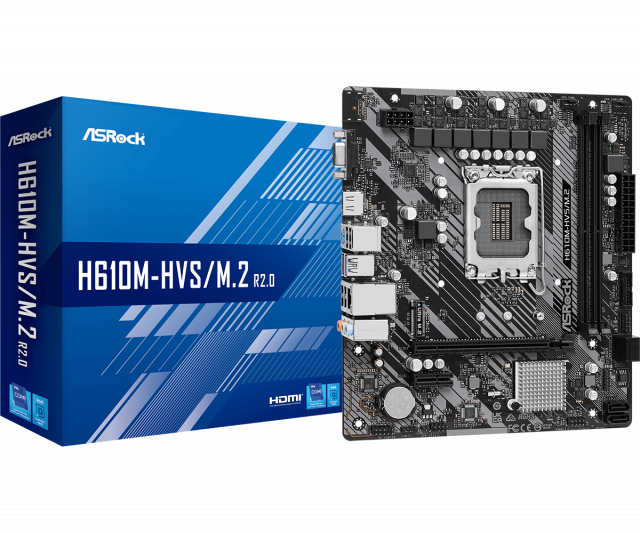

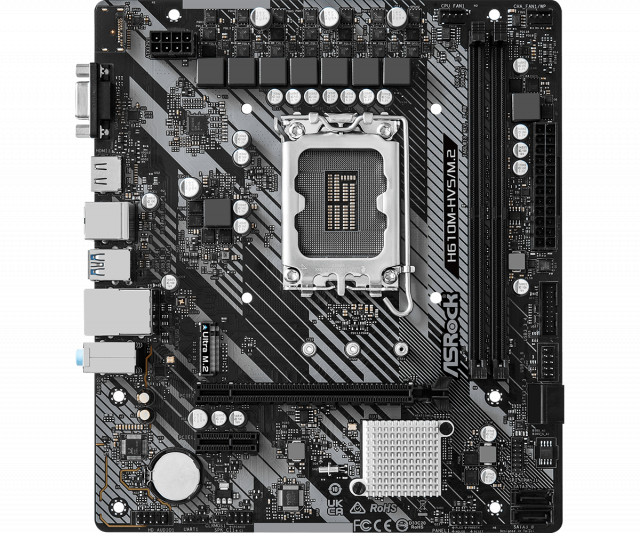

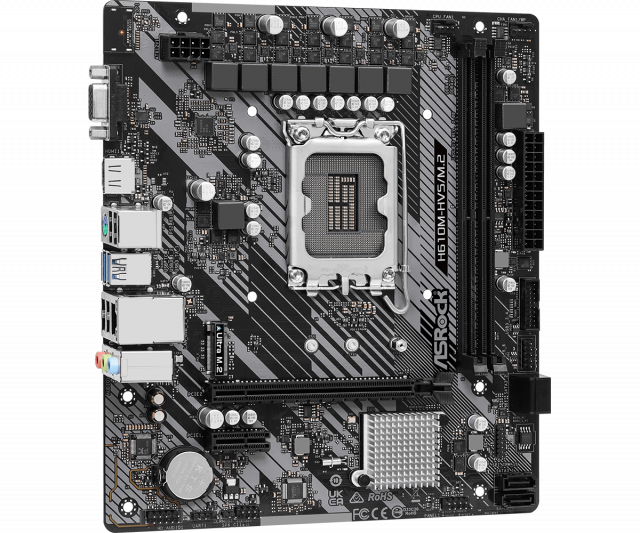

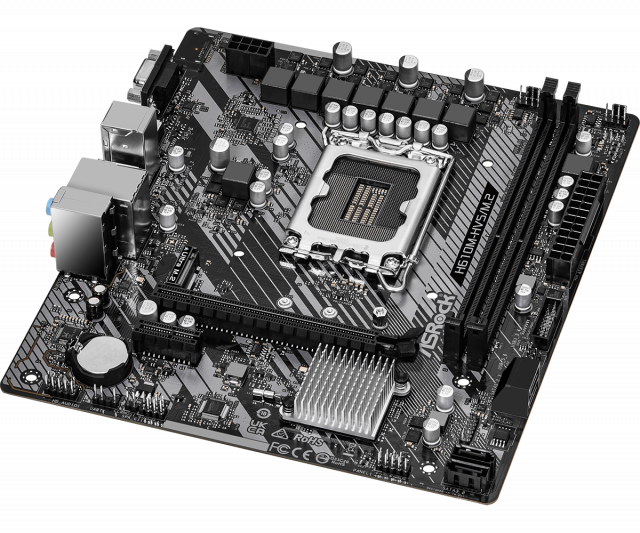

Motherboard ASRock H610M-HVS/M.2 R2.0, LGA1700, DDR4, mATX
Ref. number: ASR-MB-H610M-HVS-M2-R2
available
View availability
Шереметя
Motherboard ASRock H610M-HVS/M.2 R2.0, LGA1700, DDR4, mATX
available
View availability
Шереметя
Ref. number: ASR-MB-H610M-HVS-M2-R2
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy
The ASRock H610M-HVS/M.2 R2.0 is a compact and efficient Micro‑ATX motherboard designed for Intel’s 12th, 13th, and 14th Gen processors, offering essential features like PCIe 4.0, DDR4 support, M.2 storage, and reliable connectivity—making it a strong budget‑friendly foundation for everyday builds.
- CPU Support – Compatible with Intel 14th, 13th & 12th Gen Core processors on the LGA1700 socket, ensuring broad upgrade flexibility.
- Memory – Features 2× DDR4 DIMM slots supporting dual‑channel memory up to 3200 MHz for stable performance.
- Expansion – Includes 1× PCIe 4.0 x16 slot and 1× PCIe 3.0 x1 slot, suitable for modern GPUs and add‑on cards.
- Storage – Offers 1× Ultra M.2 (PCIe Gen3x4) slot and 4× SATA3 ports for flexible SSD/HDD configurations.
- Connectivity – Equipped with HDMI and D‑Sub video outputs, Realtek Gigabit LAN, 4× USB 3.2 Gen1, and 6× USB 2.0 ports.
- Audio – Uses the Realtek ALC897 7.1‑channel HD audio codec for clear and immersive sound.
- Power Design – Built with a 6+1+1 phase digital PWM design for efficient and stable CPU power delivery.
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | H610M-HVS/M.2-R2.0 |
| Barcode | 4710483939914 |
| CPU Socket |
1700
|
| Chipset |
Intel H610
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
64 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Supports Surge Protection
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
|
| Integrated LAN |
Gigabit LAN 10/100/1000 Mb/s
Intel® Gigabit LAN
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) modes
|
| Raid support | |
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|
| Connectors |
1 x VGA
1 x HDMI port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Micro ATX - 22.0 x 19.3 cm
|
| Other | |
| Weight | 0.460 kg |
