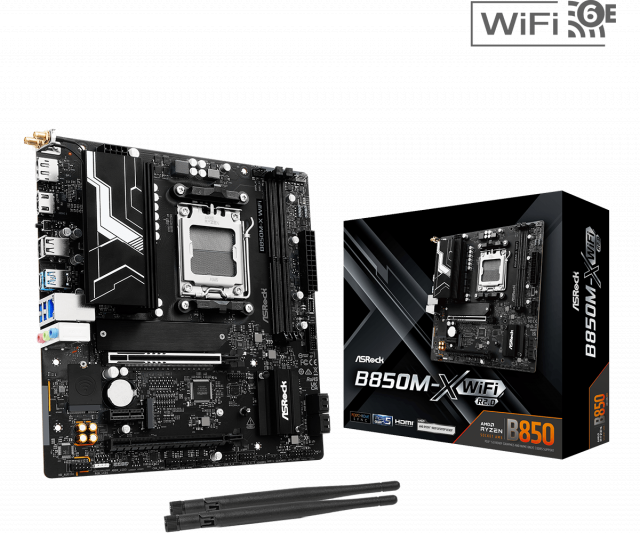

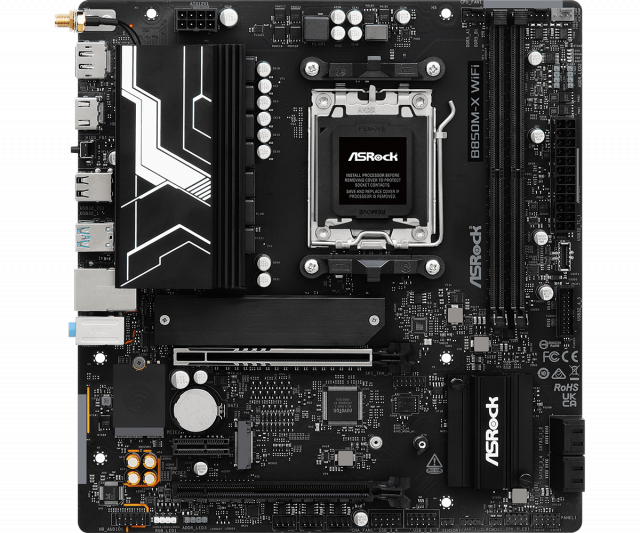

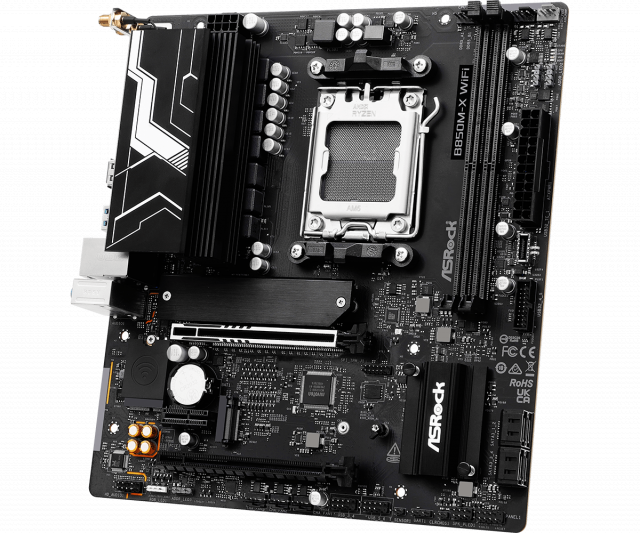

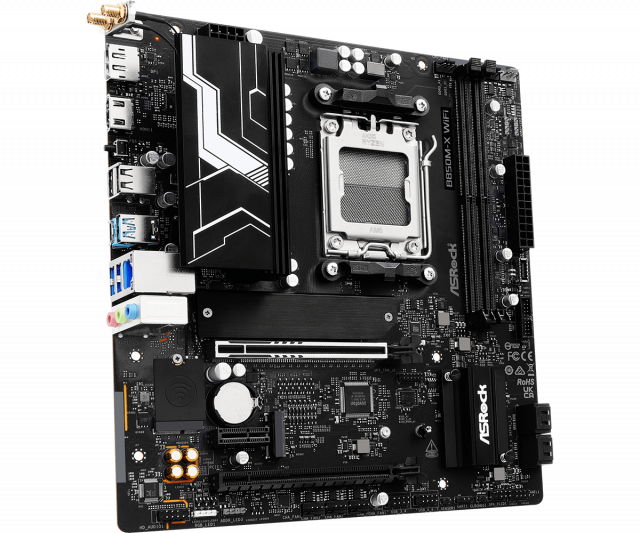

Motherboard ASRock B850M-X WiFi R2.0 socket AM5
Ref. number: ASR-MB-B850M-X-WIFI
available
View availability
Шереметя
Motherboard ASRock B850M-X WiFi R2.0 socket AM5
available
View availability
Шереметя
Ref. number: ASR-MB-B850M-X-WIFI
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
The ASRock B850M-X WiFi R2.0 is a compact powerhouse built for AMD’s latest Ryzen processors, offering cutting-edge features in a Micro-ATX form factor. Here's a deeper dive into what makes it stand out:
Core Specs
- Socket: AM5 – supports Ryzen 7000, 8000, and 9000 series CPUs
- Chipset: AMD B850 – optimized for mainstream performance
- Memory: 2 x DDR5 DIMMs, up to 128 GB, speeds up to 8200+ MHz (OC)
- Expansion Slots:
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x16 (x4 mode)
- 1 x PCIe 4.0 x1
Storage & Connectivity
- M.2 Slots:
- 1 x Blazing M.2 (PCIe Gen5x4)
- 1 x Hyper M.2 (PCIe Gen4x4)
- SATA: 4 x SATA3 ports
- USB Ports:
- Rear: 1 x USB-C, 3 x USB 3.2 Gen1, 2 x USB 2.0
- Front: 1 x USB-C, 2 x USB 3.2 Gen1, 4 x USB 2.0
Networking & Audio
- LAN: Realtek 2.5G Ethernet
- Wireless: Wi-Fi 6E + Bluetooth 5.2
- Audio: Realtek ALC897 7.1 CH HD with Nahimic enhancements
Cooling & Power
- Power Design: 6+1+1 phase with Dr.MOS for stable overclocking
- PCB: 6-layer for better thermal and signal integrity
- Fan Control: PWM/DC support with Fan-Tastic Tuning UI
Style & DIY Features
- RGB: Polychrome RGB headers + SignalRGB support
- BIOS Flashback: Update BIOS without CPU/RAM
- Auto Driver Installer: Simplifies setup for new builds
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B850M-X WIFI R2.0 |
| Barcode | 4711581490765 |
| CPU Socket |
AM5
|
| Chipset |
AMD B850
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
8200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
1 x Realtek® Dragon RTL8125BG 2.5G LAN
|
| Integrated Wi-Fi |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2
|
| PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
|
| PCI Express x4 |
1
|
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|

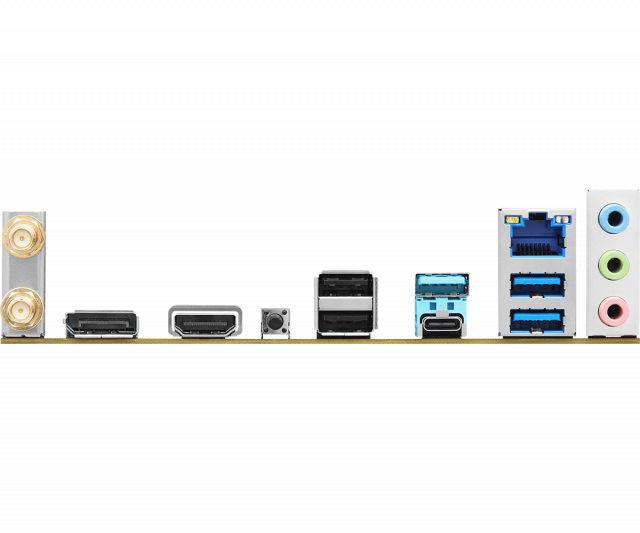

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
|
| USB Ports |
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x USB 3.2 Gen1 Type-C
|
| Dimension |
Micro ATX - 24.4 x 22.6 cm
|
| Other | |
| Weight | 0.760 kg |
