Graphic card ZOTAC GAMING RTX 5060 Twin Edge OC 8GB GDDR7
Ref. number: ZOTAC-VC-N5060-8GB-OC
available
View availability
Шереметя
New
Graphic card ZOTAC GAMING RTX 5060 Twin Edge OC 8GB GDDR7
available
View availability
Шереметя
Ref. number: ZOTAC-VC-N5060-8GB-OC
Client
w/ VAT
w/ VAT


![]() |
![]() |
|
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|

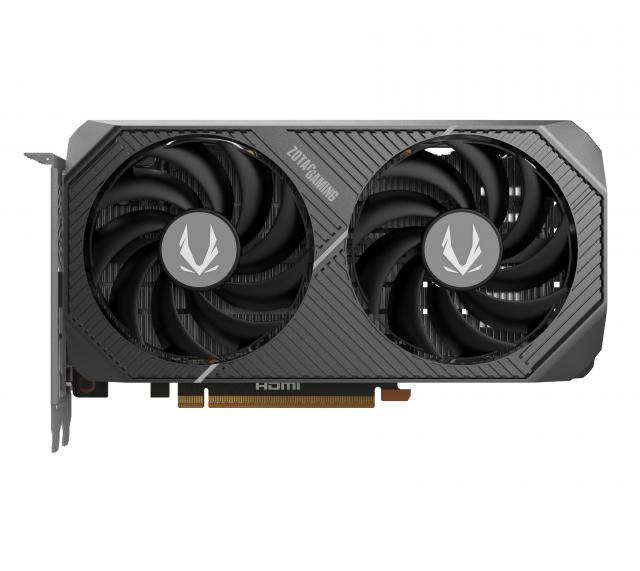

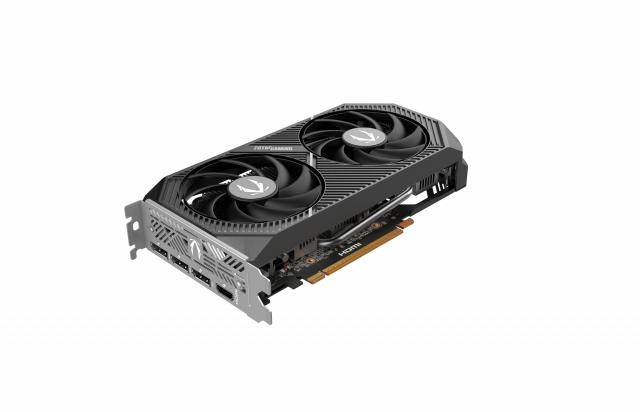

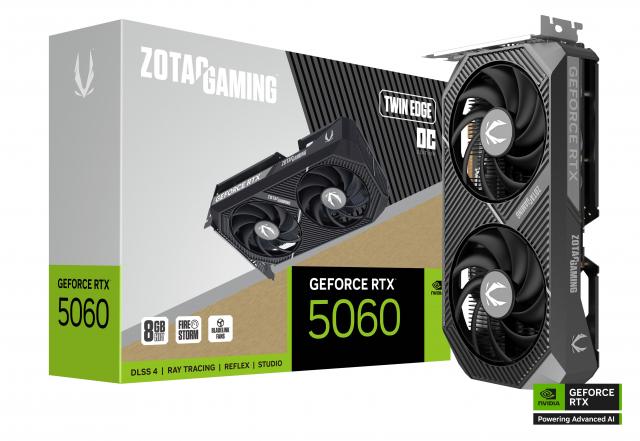

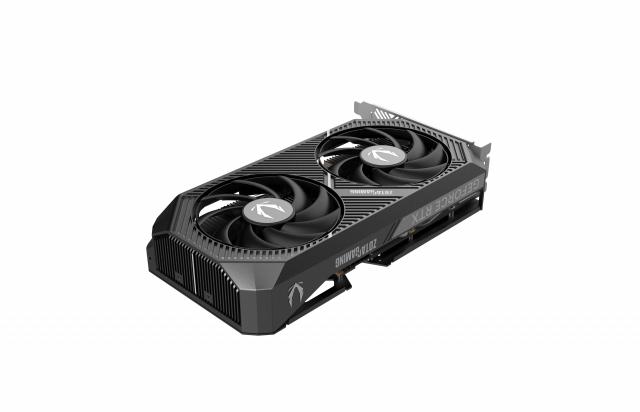

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC, a compact yet powerful graphics card built on NVIDIA’s latest Blackwell architecture. It’s designed for gamers who want next-gen performance in a small form factor without compromising on features.
Key Specs
- GPU: NVIDIA GB206 with 3840 CUDA cores
- Memory: 8GB GDDR7, 128-bit bus, 28 Gbps, 448 GB/s bandwidth
- Clock Speeds: Base – 2280 MHz, Boost – up to 2527 MHz
- Interface: PCIe 5.0 x8
- TDP: 145W, powered via a single 8-pin connector
- Recommended PSU: 300W
Display & Connectivity

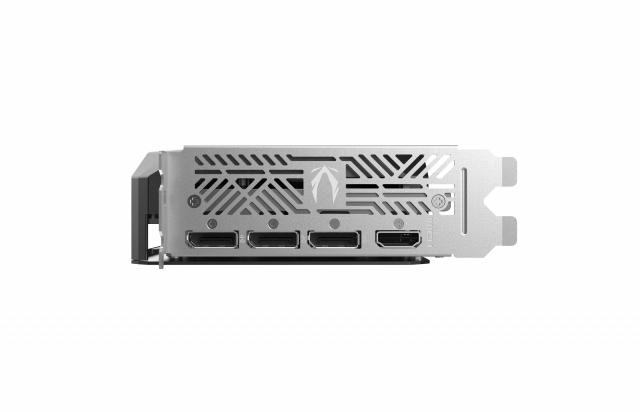

- Outputs: 3x DisplayPort 2.1b (up to 8K 165Hz with DSC), 1x HDMI 2.1b (up to 8K 120Hz HDR)
- Supports up to 4 displays, HDCP 2.3, VR Ready, and G-SYNC compatible
Cooling & Design
- IceStorm 2.0 cooling with dual 90mm BladeLink fans
- Composite heatpipes and pass-through airflow

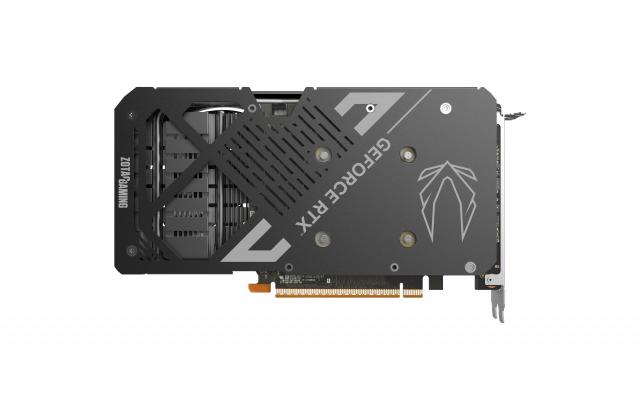

- Metal backplate and FREEZE Fan Stop for silent idle operation
- Compact dual-slot design: 241 x 111 x 40 mm
Features & Software
- DLSS 4 with Multi Frame Generation
- 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores
- NVIDIA Reflex 2, Broadcast, Studio, and ACE support
- Comes with ZOTAC FireStorm Utility for performance tuning
Manufacturer | ZOTAC |
Warranty | 36 months |
Product code | ZT-B50600H-10M |
Barcode | 8886307700834 |
Сhipset |
nVIDIA
|
Processor graphics |
GeForce RTX 5060
|
AI Performance | |
CPU Frequency (MHz) |
2527 MHz
|
CUDA Core |
3840
|
Memory Size |
8 GB
|
Frequency Memory |
28 Gbps
|
Memory type |
GDDR7
|
Memory Bus (bits) |
128 b
|
Interface |
PCI Express 5.0
|
Type of cooling |
Actively
|
Max. resolution |
7680 x 4320
|
Video outputs |
1 x HDMI 2.1
3 x DisplayPort 2.1
|
Recommended PSU |
550W
|
Power connectors |
1 x 8-pin
|
Number of slots |
Dual Slot
|
Size (mm) |
220.5 x 120.25 x 41.6 mm
|
Other specifications |
DirectX 12 API
DLSS 4.0
SFF Ready
|
Weight | 1.204 kg |
