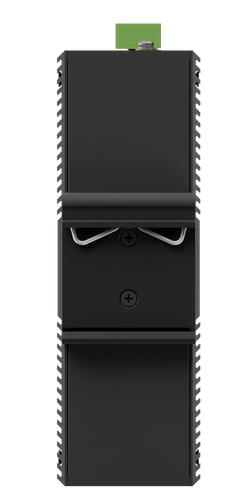

Cudy IG1008P Industrial 8-Port 10/100/1000M PoE+ Switch 65W

Cudy IG1008P is an industrial 8-port Gigabit PoE+ switch designed for operation in harsh environments such as manufacturing, transportation, marine, and mining settings.

Key Features

Ports:

• 8 × Gigabit RJ45

• All 8 ports support PoE+ (IEEE 802.3af/at) – up to 30W per port

• Total PoE budget: up to 240W

• Switching capacity: up to 16 Gbps

• Forwarding Rate: 11.9 Mpps

• Jumbo Frame: up to 9 KB

• Buffer: 1.5 Mbit

• MAC table: up to 4096 addresses

Smart Functions

• PoE Watchdog: automatically restarts devices that are unresponsive for more than 5 minutes

• Operating Modes:

  • Extend Mode – up to 250 meters at 10 Mbps (on ports 1–4)

  • VLAN Mode – isolates ports 1–7 for enhanced security

  • Broadcast Storm Prevention – prevents network congestion

• Physical buttons: for toggling the above modes

Power and Protection

• Power supply: via 4-pin terminal block (DC 44–57V)

• Dual power input: for redundancy

• ESD protection:

  • Contact: 8 kV

  • Air: 15 kV

• Surge protection:

  • RJ45 ports: up to 6 kV

  • Power input: up to 4 kV

• Protection against reverse polarity and short circuit

Environmental Durability

• Operating temperature: from –40°C to +75°C

• Storage: up to +85°C

• Housing: aluminum with IP40 protection

• Resistance to vibration, shock, and drop – compliant with IEC standards
