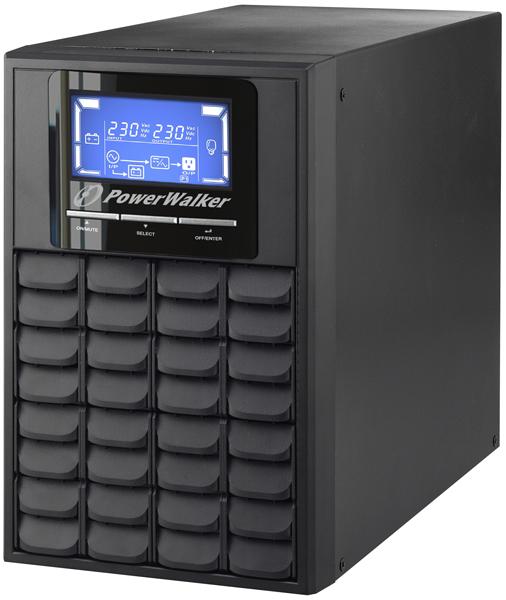

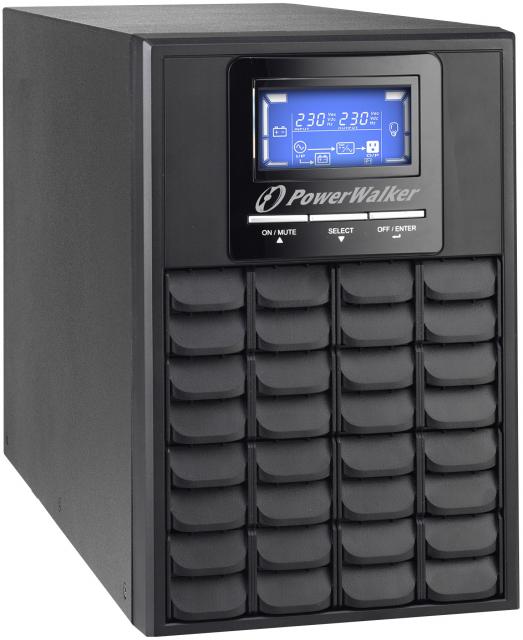

UPS POWERWALKER VFI 1000C LCD, 1000VA, On-Line
UPS POWERWALKER VFI 1000C LCD, 1000VA, On-Line
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Capacity: 1000VA /800W
Input:
Voltage - Low Line Transfer: 110-160VAC ± 5%
Voltage - Low Line Comeback: 120-175 VAC ± 5%
Voltage - High Line Transfer: 300 VAC ± 5%
Voltage - High Line Comeback: 290 VAC ± 5VAC
Frequency Range: 40Hz ~ 70Hz
Phase: Single Phase with ground
Power Factor: ≧ 0,99
Output:
Uotput Voltage: 200/208/220/230/240 VAC
Voltage Regulation (Batt. Mode): ± 1 %
Frequency Range(Synchronized Range): 47 ~ 53Hz or 57 ~ 63Hz
Frequency Range(Batt. Mode): 50 ± 0.25Hz or 60Hz ± 0.3Hz
Current Crest Ratio: 3:1
Harmonic Distortion: ≤ 3% THD (Linear Load); ≤ 6% THD (Non-linear Load)
Transfer Time:
AC Mode to Batt.Mode: Zero
Inverter to Bypass: 4ms
Efficiency:
AC Mode: 88%
Battery Mode: 83%
Battery:
Battery Type: 12V / 9Ah x 2
Recharge Time: 4h for 90% after complete discharge

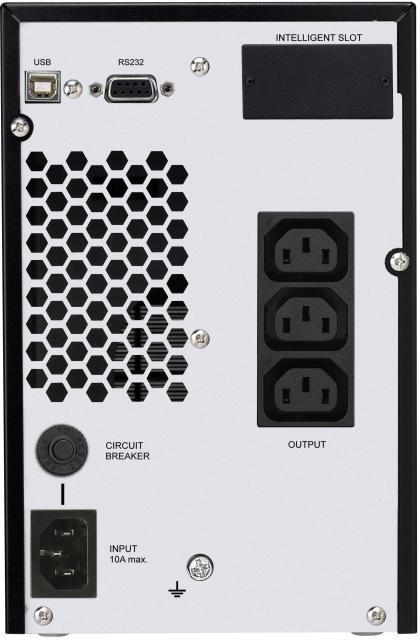

Connections:
Communication: USB & RS-232 port
Outlets: 3 x IEC
Intelligent Slot
Dimension: 282 x 145 x 220mm
Weight: 9.8 kgs
Color: Black
NoiseLevel: Up to 50dB
Additional Features:
LCD Display
Audio Indicators
| Manufacturer | POWERWALKER |
| Warranty | 24 months |
| Barcode | 4260074976557 |
| Type |
On-line
|
| Input Voltage |
110-300 VAC
|
| Capacity |
1000VA / 800W
|
| Nominal Output Voltage |
200/208/220/230/240 VAC
|
| Batteries |
12V/9Ah
|
| Sound Alarm |
Yes
|
| Overload Protection |
Yes
|
| Input Connections |
C14
|
| Output Connections |
3x IEC C13 Outlet
|
| Front Panel |
LCD
|
| Waveform |
Pure Sine Wave
|
| Number of batteries |
2
|
| External Battery Connection |
Optional Battery Pack
|
| Communication |
USB
RS-232
Intelligent Slot
|
| Recharge Time |
9h to 90%
|
| Noise Level |
< 50dB
|
| Backup Time |
Full Load Backup Time - 4 min;Half Load Backup Time - 12.5 min
|
| Frequency Range(Output) |
±0,3Hz (battery mode)
|
| Alarm |
Yes
|
| Dimension |
228 x 145 x 220 mm
|
| Weight | 9.800 kg |
