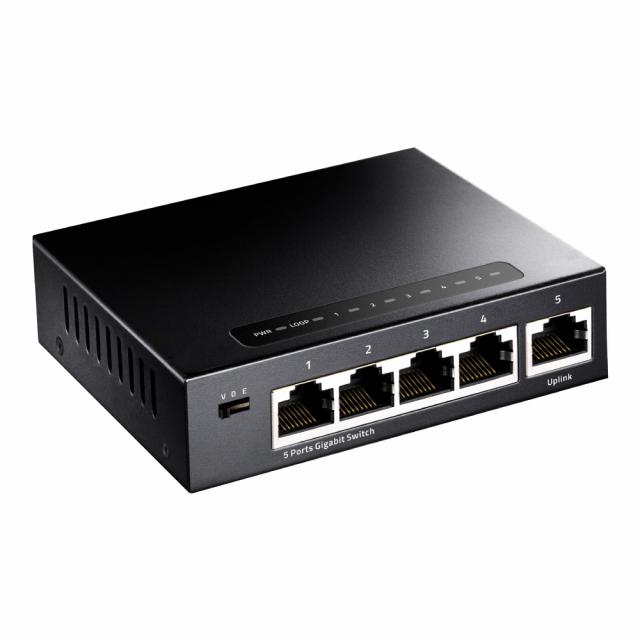

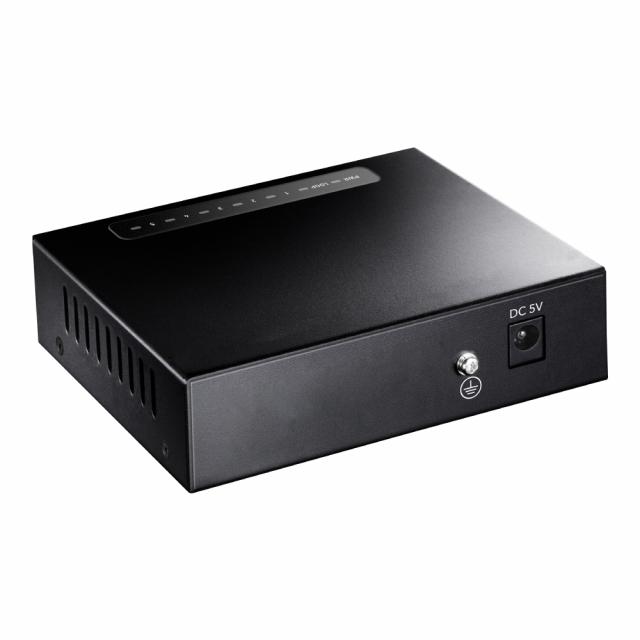

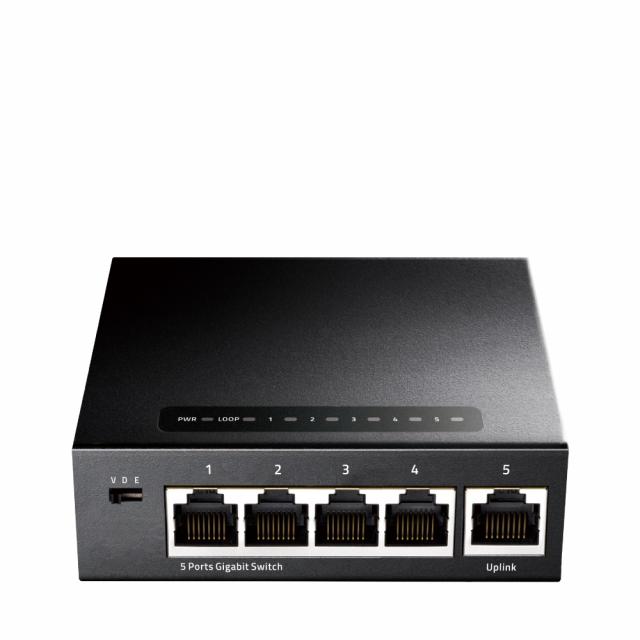

Switch Cudy 5-Port Gigabit Desktop Switch, Model: GS105
Switch Cudy 5-Port Gigabit Desktop Switch, Model: GS105
w/ VAT
● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning and auto-agin
Standard configurati: 5 10/100/1000M RJ-45 adaptive ports
Network protocol: IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Network Medium: 10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m)
LED Indicators: PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Power Voltage: Power Input Voltage ：AC 100-240 V
Switch Input Voltage:：DC 5V
| Manufacturer | Cudy |
| Warranty | 24 months |
| Product code | GS105 |
| Barcode | 6971690790431 |
| Ports |
5 x RJ-45
|
| Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x
|
| MAC Address | |
| Protocols | |
| Operating temperature |
0 to 50°C
|
| Power Requirement |
DC 5V
|
| Buffer Memory |
1M
|
| LED Indicators |
PWR(Power indicator); Link(Network Link); LOOP(Loop alarm)
|
| Rack-mount | |
| PoE | |
| Dimension (mm) |
100 x 70 x 26 mm
|
| Weight |
0.200 kg
|
