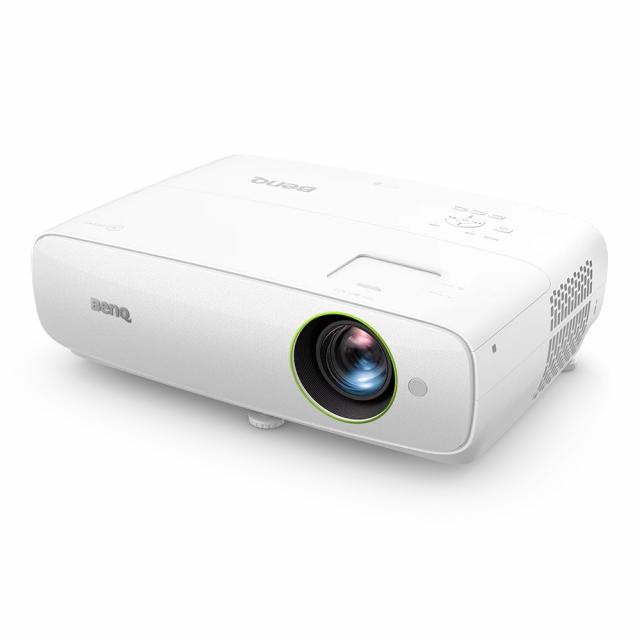

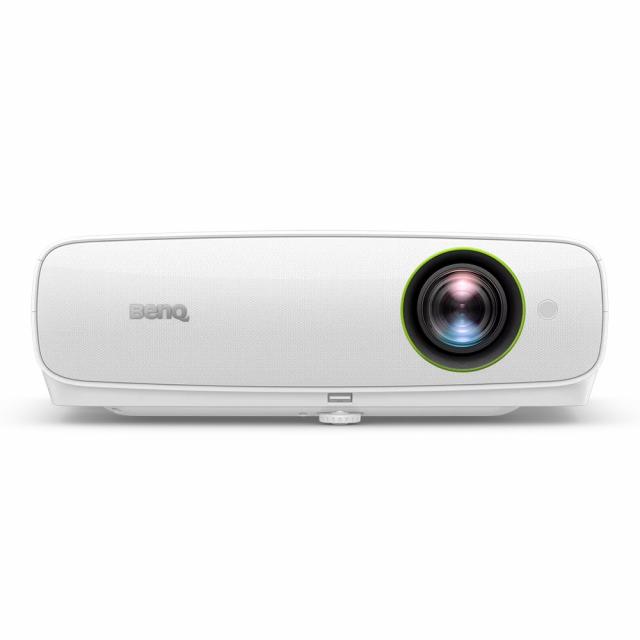

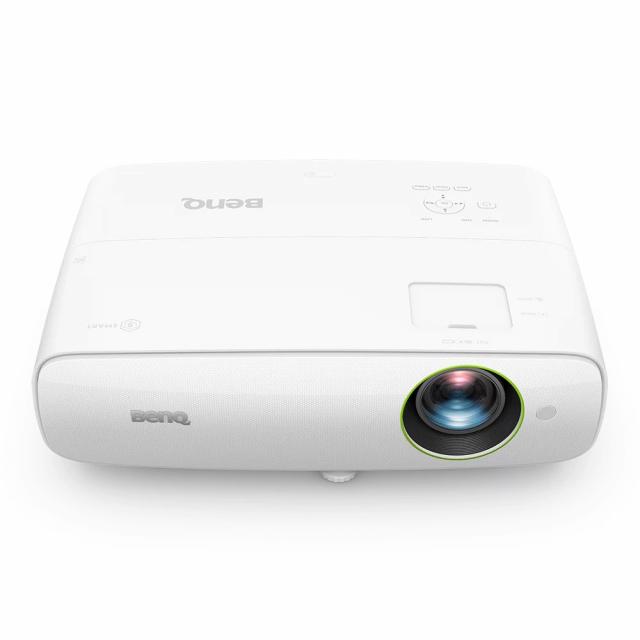

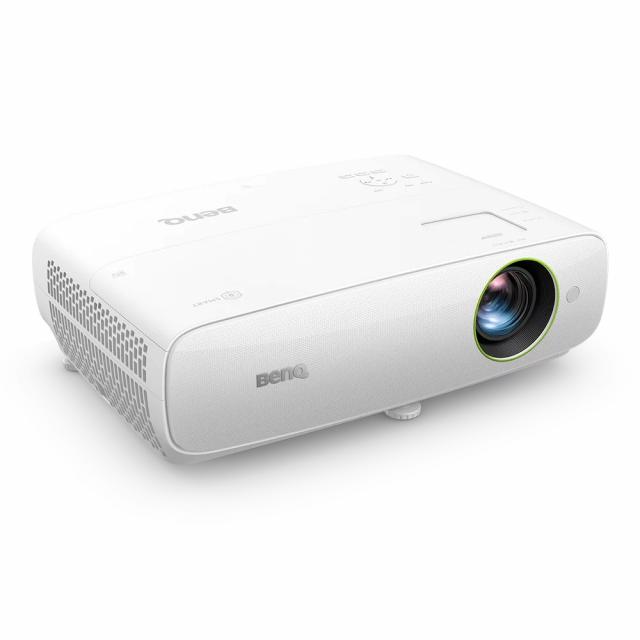

Projector BenQ EH620, DLP, Smart, 3000 ANSI, Built-in Windows 11 IoT Enterprise OS
Projector BenQ EH620, DLP, Smart, 3000 ANSI, Built-in Windows 11 IoT Enterprise OS
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Related products
Projection System: DLP
Brightness (ANSI lumens): 3400
Native Resolution: 1080P (1920x1080)
Native Aspect Ratio: 16:9
Contrast Ratio (FOFO): 15000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Lamp
Light Source Life: a. Normal 4000 hrs, b. ECO 10000 hrs, c. SmartEco 15000 hrs

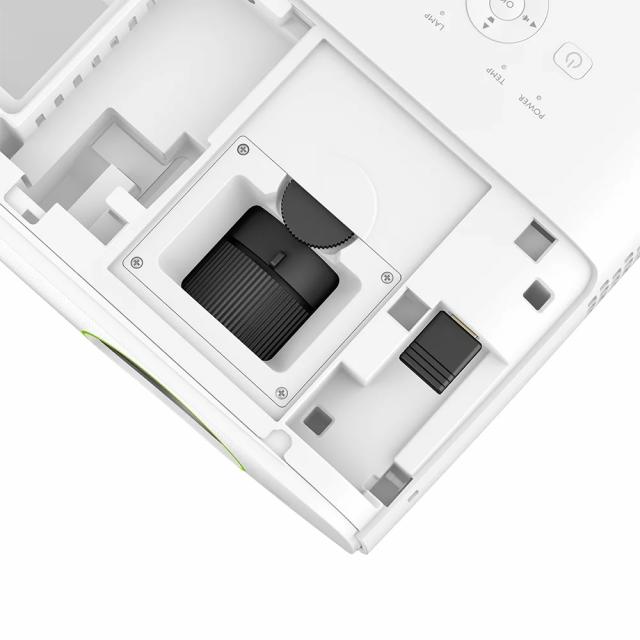

Throw Ratio: 1.13~1.47
Zoom Ratio: 1.3x
Projection Offset (Full-Height): 105%
Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees
Resolution Support: VGA(640 x 480) to Full HD(1920 x 1080)

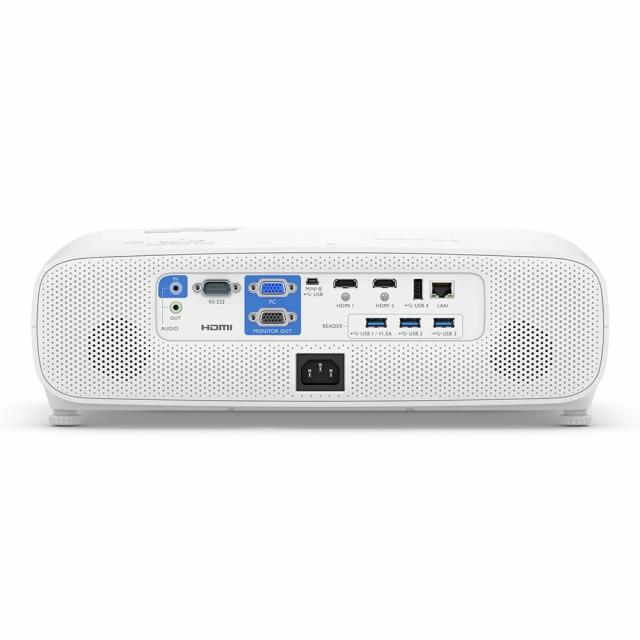

I/O Interface
PC in (D-sub 15pin): (x1)
Monitor out (D-sub 15pin): (x1)
HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
LAN (RJ45): (x1)
USB Type A: USB Type A-1 (3.0/Power Supply1.5A), USB Type A-2 (3.0/Power Supply1.0A),
USB Type A-3 (3.0/Power Supply1.0A), USB Type A-4(2.0),
USB Type A-5 (2.0/Power Supply 0.9A)
USB Type Mini B: (x1)
RS232 in (DB-9pin): (x1)
Audio
Speaker: (x2), 5W
Audio in (3.5mm Mini Jack): (x1)
Audio out (3.5mm Mini Jack): (x1)
Dimensions (WxHxD) (mm): 380 x 127 x 263
Net Weight (kg): 4.2
EH620 3400lms 1080p Windows
Smart Meeting Room Projector
Commence Meetings of the Future
-A hybrid meeting solution with Windows 11 IoT Enterprise OS built-in
-Enterprise-grade WPA2 certified and AES-128 encryption security
-Preloaded with Google Meet, Skype and TeamViewer Meeting meeting apps
-Support Miracast, Airplay*, Google Cast and BenQ InstaShare screen casting
-Auto F/W scan & upgrade via OTA
All-in-One Windows Projector for Enterprise
Commence Meetings of the Future
Built-in Windows 11 IoT Enterprise OS
WPA2 certification and AES-128 encryption
Preloaded with common business apps
Driver-free screen casting from any device
Auto visual and audio set-up features
Two-channel 5Wx2 speakers
Auto firmware scan & upgrade
3rd-party control system compatibility
Effective PC-Free Cloud Meetings
Integrated Hub to Convenience
Transform a conventional meeting room into a modern cloud collaboration space. BenQ EH620 smart projector eliminates the need for laptops and speakers, reducing device clutter but increasing capabilities when connected to a wireless keyboard/mouse set and webcam. Cloud workers can start smooth online meetings instantly.
Project Directly Cloud Presentations
Turn on the EH620 smart projector, launch one of the built-in browsers - Edge or Chrome - and access presentation files either in OneDrive or Microsoft Teams, without using laptops. This effectively reduces meeting preparation time, and everything is getting done on one projector for seamless presentations.
Cast Multiple Presentations Simultaneously
Share content or collaborate from a 4-way split window on a big screen via Miracast, Airplay*, Google Cast, and BenQ InstaShare wireless casting technologies, without extra apps or Wi-Fi dongles. It’s easy for team members to cast their presentations, up to four devices at the same time, for a thorough discussion.
Spark Hybrid Collaboration
Sorted Shortcuts to Launch Meetings Instantly
BenQ-exclusive Launcher interface organises apps into three groups, saving users’ time from downloading, searching, or logging into them. Just click the apps and start the meeting.
Join Video Conferences with Built-in Apps
Use preloaded meeting apps1 like Google Meet, Skype for Business, and TeamViewer Meeting directly on the projector to free up personal devices from public use. Run the whole meeting smoothly without any embarrassing interruptions.
1More apps can be downloaded from Microsoft Store.
Share Content Simultaneously from Multiple Sources
With just one person signing into the meeting, participants in the same room can cast individually and share content via the projector with remote attendees. This ensures every participant is on the same page without switching from image to image.
Amplified Sound with Vocal Clarity
Specially designed for video conferences, EH620 offers two 5W speakers and a voice-enhanced Vocal Mode to let every remote or in-person attendee hear meeting details clearly for effective collaboration.
Smart Installations. Secure Management
Auto-Adjustments for Optimal Settings
From boot to presentation, BenQ EH620 autodetects the meeting content to provide the most suitable visual and audio settings. See instantly and hear clearly without prior adjustments.
Step 1
Turn projector on and set projection angle. Auto Keystone will automatically correct the image.
Step 2
Launch the presentation file and let Auto Picture Mode detect and optimise the projection according to content.
Step 3
Auto Sound Mode detects sources to optimise the effects of voices and sounds.
Reduced Cost and Time-Saving Management
Reduce 50% of Devices Used
The all-in-one projector is simpler to use, and it reduces the management and maintenance of multiple meetings and devices.
Auto Firmware Scan and Upgrade
Auto Firmware updates notifications for downloading and installing, all on the projector.
This function supports BenQ app and Windows driver/security update. For TI, Windows firmware and BIOS update, please contact via service channel.
3rd-Party Central Control
Compatible with control systems such as PJ-Link, Creston, and AMX for easier integration into existing systems.
Wintel OS Offers Upgraded Info Security
Embedded Intel® Celeron® CPU enables comprehensive enterprise-grade security upgrades to provide complete protection over hardware, chips, apps, and wireless casting.
Intel® Celeron® Processor
Intel® Celeron® Processor 4205U boosts Windows application productivity up to 40% with faster connection and security of Intel Runtime BIOS Resilience.
Platform Trust Technology
Intel® PTT supports BitLocker for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
AES 128 & WPA2 Wi-Fi Security
AES 128-bit security encryption and WPA2 authentication protocol ensure that any intellectual property remains private and safe from tampering or unintended disclosure.
| Manufacturer | BenQ |
| Warranty | 36 months |
| Product code | 9H.JPT77.34E |
| Barcode | 4718755087998 |
| Technology |
DLP
|
| Light Source |
Lamp
|
| Type |
Home Movie Projector
|
| Brightness (ANSI lumens) |
3400 lm
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Resolution Support |
VGA (640 x 480) to FND(1920 x 1080)
|
| Contrast |
15000:1
|
| Short Throw |
No
|
| Projection Distance |
Normally
|
| Min. Diagonal (m) |
30"
|
| Max. Diagonal (m) |
300"
|
| Lamp Life (hours) |
3000 hours (normal mode), 4000 hours (eco mode)
|
| Features | |
| Horizontal Scan Rate (kHz) |
15 - 102
|
| Vertical Scan Rate |
23 - 120
|
| Interface |
HDMIx2, VGA, 3.5 mm jack, RS232, USB Mini-B
|
| Displayable Color |
1.07 Billion
|
| Speakers |
2 x 5W
|
| Remote Control |
Yes
|
| Power Consumption |
350 W
|
| Noise Level |
32 dB normal;30 dB eco
|
| Other | |
| 3D |
Yes
|
| LAN |
Yes
|
| 4K |
No
|
| Dimensions |
380 x 127 x 263 mm
|
| Accessories | |
| Weight | 4.200 kg |
