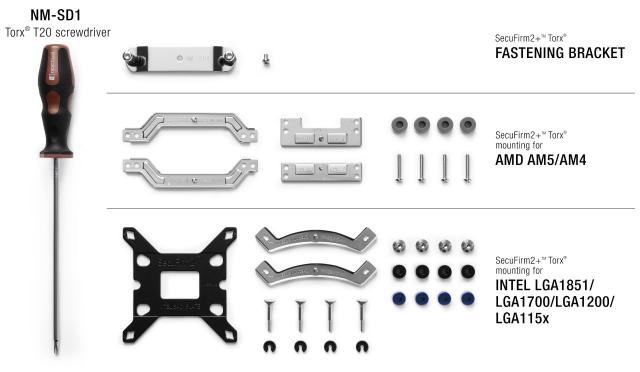

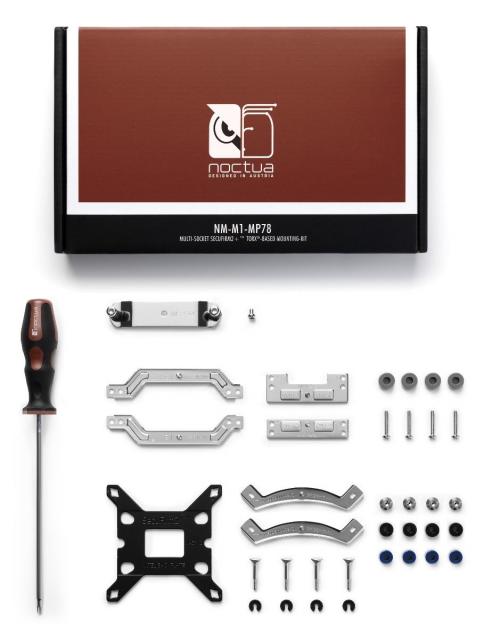

Mounting kit Noctua NM-M1-MP78, Multi-socket SecuFirm2+

Compatible coolers:  NH-D12L, NH-L12S, NH-U9S (chromax.black), NH-U12A (chromax.black), NH-U12S (SE-AM4, chromax.black), NH-U12S redux, NH-U14S

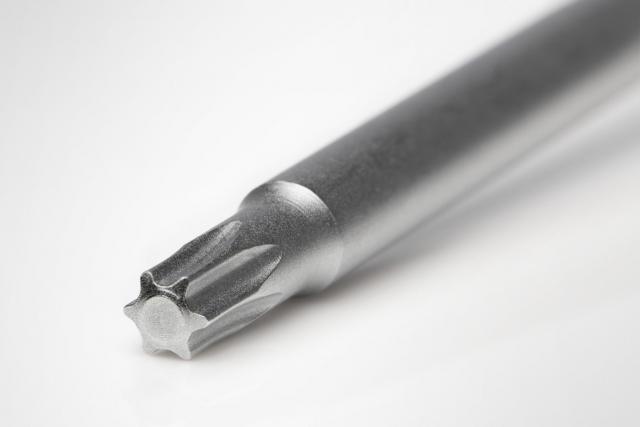

SecuFirm2+™ standard with Torx® - The new SecuFirm2+™ standard uses Torx® T20 instead of Phillips head screws. The reduced cam-out of the Torx® drive makes it easier to operatе

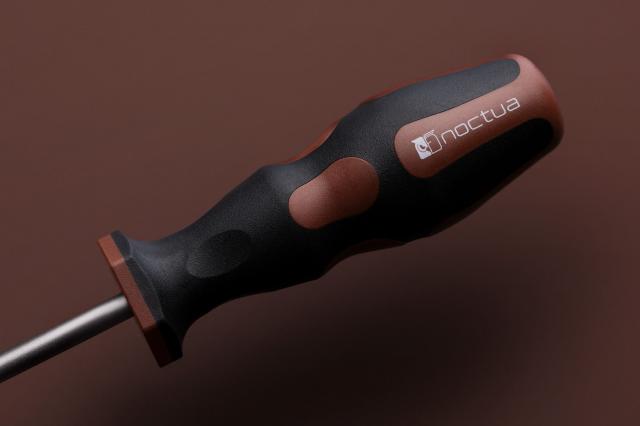

NM-SD1 magnetic tip screwdriver - ideal for all the screws of the kit. Thanks to its magnetic tip and the 150mm long shaft, even remote screws in tightly packed environments such as ITX or HTPC builds are easy to handle without dropping

Multi-socket support - Supporting AMD AM5 and AM4 as well as Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 and LGA1156, it’s the ultimate kit for a wide range of upgrading or switching scenarios

Offset mounting option for AMD AM5 - The NM-M1 includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact pressure right above the Core Complex Die(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.

For Noctua coolers with 78mm mounting pitch
Cooler can be installed turned by 90°
Perfect contact pressure
Integrated fastening brackets
Tailor-made parts for AMD and Intel
Trusted SecuFirm2™ quality
Backwards compatibility
