Motherboard GIGABYTE Z890 AORUS MASTER, LGA 1851
Motherboard GIGABYTE Z890 AORUS MASTER, LGA 1851
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Key Features
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 18+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
DDR Wind Blade : Enhanced Active Cooling for Memory Modules
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 5*M.2 slots, including 2* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL

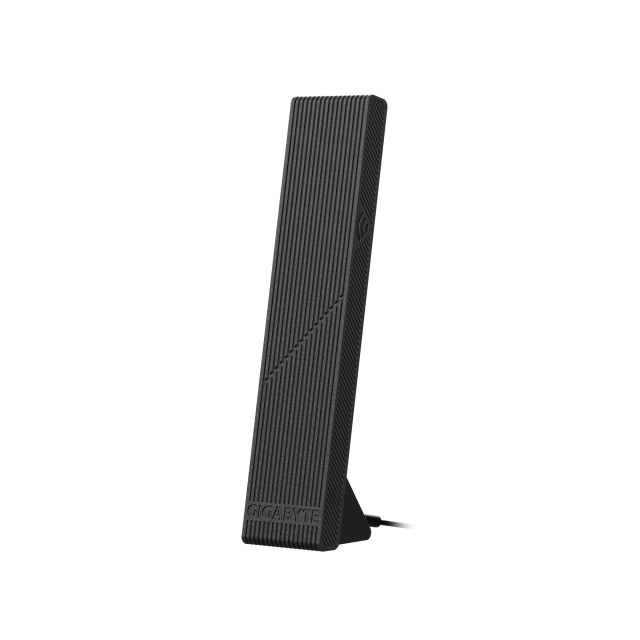

Fast Networking : 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | Z890 AORUS MASTER |
| Barcode | 4719331864903 |
| CPU Socket |
1851
|
| Chipset |
Intel Z890
|
| CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
9500(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
ESS ES9118 DAC chip
DTS:X® Ultra
|
| Integrated LAN |
Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
1 x PCIe 5.0 x16 slot
|
| PCI Express x4 |
1
|
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA 6Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
|

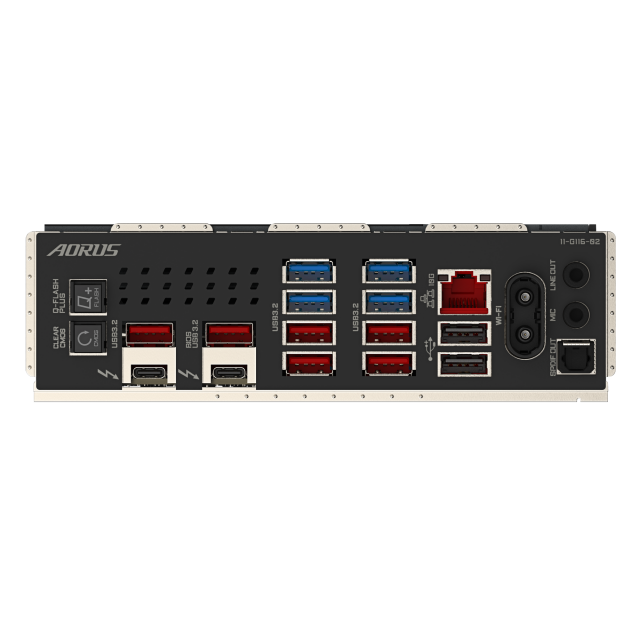

| Connectors |
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
4 x USB 3.2 Gen 1
6 x USB 3.2 Gen 2
2 x USB 2.0
2 x Thunderbolt 4.0 USB Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.224 kg |
