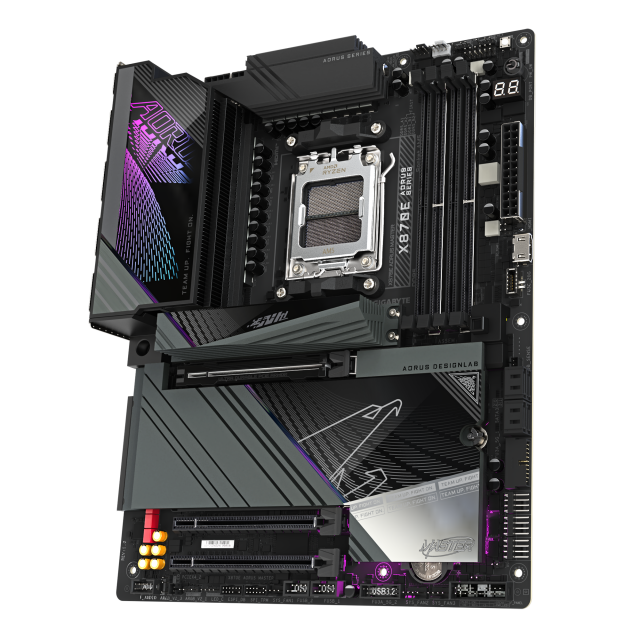

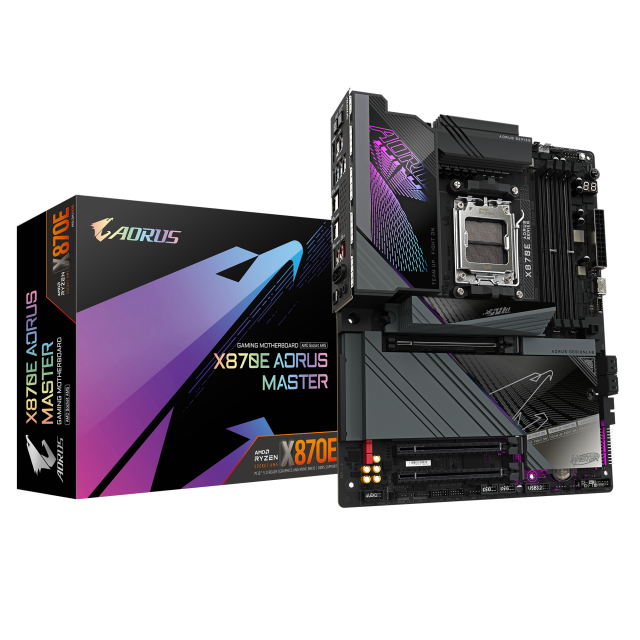

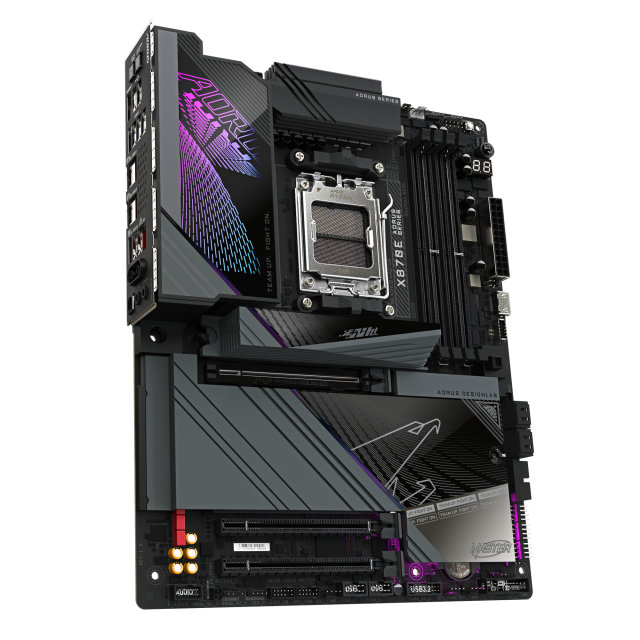

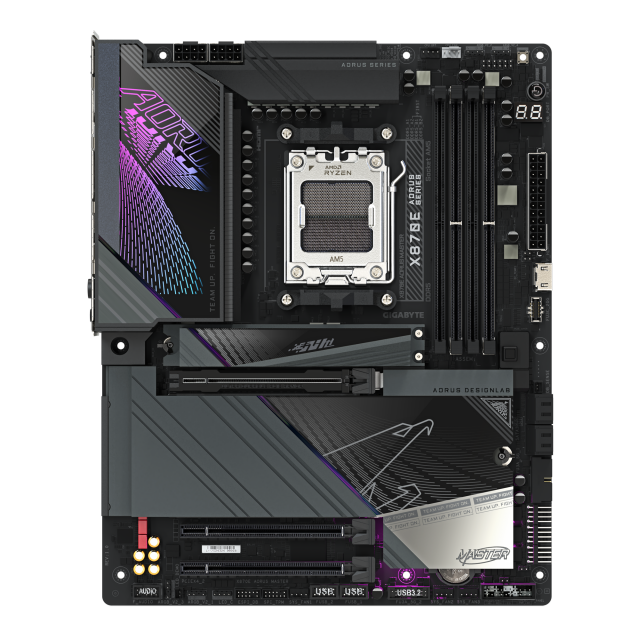

Motherboard GIGABYTE X870E AORUS MASTER, Socket AM5
Motherboard GIGABYTE X870E AORUS MASTER, Socket AM5
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Key Features
DDR5 OC up to 8600MT/s
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
DDR Wind Blade: Enhanced Active Cooling for Memory Modules
M.2 EZ-Match: Magnetic alignment for easy installation of large heatsinks
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Fast Networking：5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio：Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | X870E AORUS MASTER |
| Barcode | 4719331864354 |
| CPU Socket |
AM5
|
| Chipset |
AMD X870E
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
256 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1220
Support for DTS:X® Ultra
|
| Integrated LAN |
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
2x2 Wi-Fi 7 (802.11be)
|
| PCI-E x16 |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24 pin ATX Power Connector
2 x 8-pin +12V Power connector
|

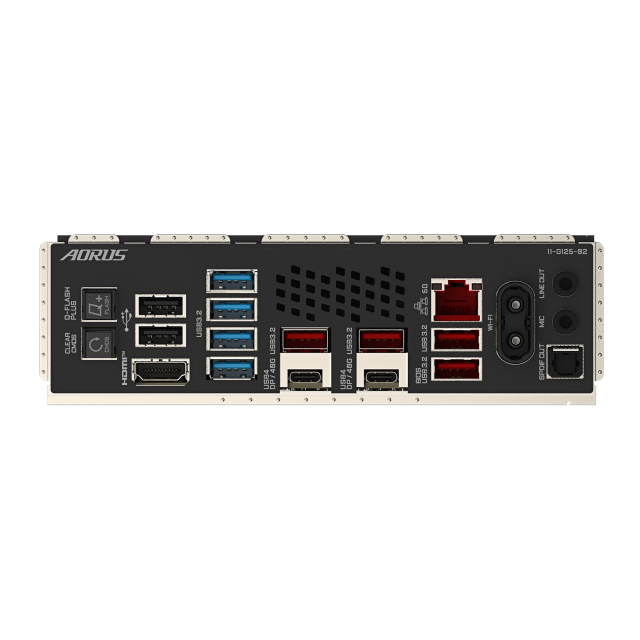

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
1 x Clear CMOS button
|
| USB Ports |
4 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
2 x USB 2.0
2 x USB 3.2 Gen 2 Type-C
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 3.330 kg |
