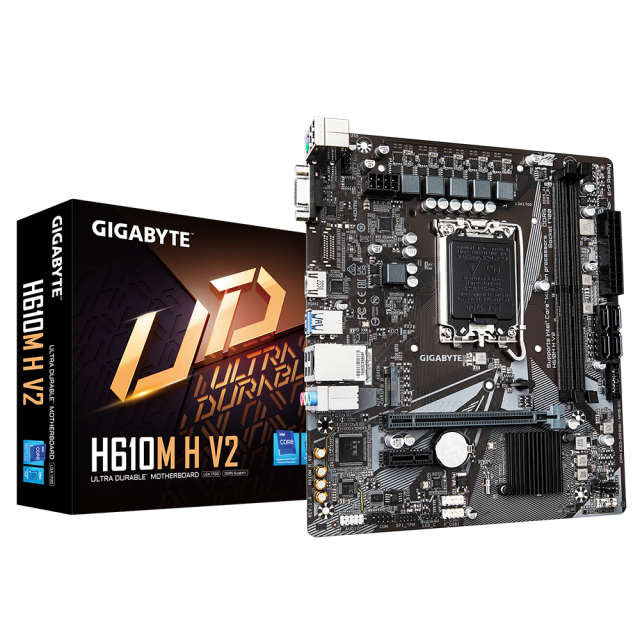

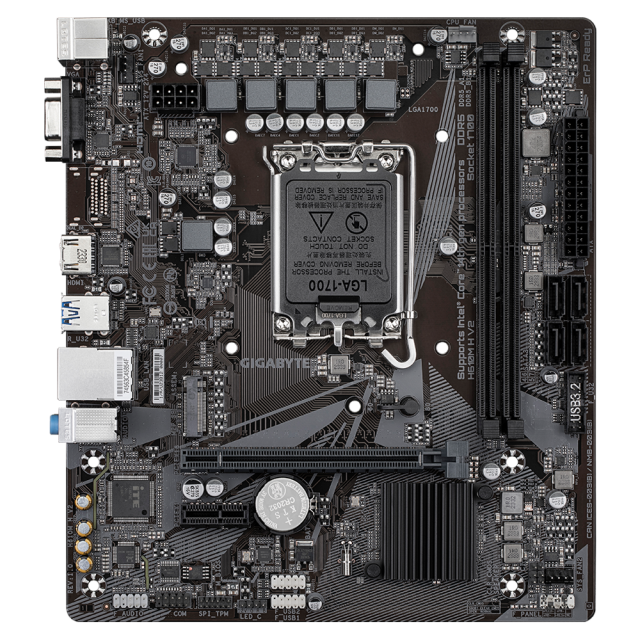

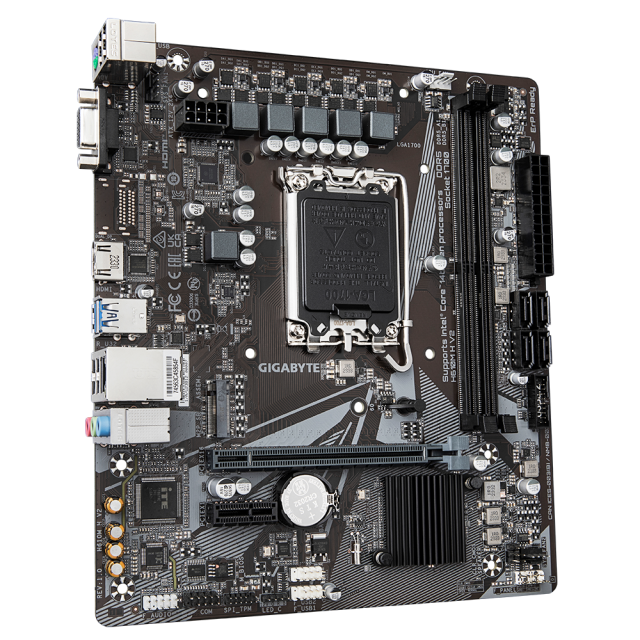

Motherboard GIGABYTE H610M H V2 Socket 1700, DDR5 rev 1.0, Micro ATX
Ref. number: GA-MB-H610M-H-V2
on route
View availability
Няма наличност
Motherboard GIGABYTE H610M H V2 Socket 1700, DDR5 rev 1.0, Micro ATX
on route
View availability
Няма наличност
Ref. number: GA-MB-H610M-H-V2
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | H610M H V2 DDR5 |
| Barcode | 4719331859985 |
| CPU Socket |
1700
|
| Chipset |
Intel H610
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
96 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
5600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
10/100/1000 Mbps
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 4.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
|
| Raid support | |
| Power Connector |
1 x 24 pin ATX Power Connector
1 x 8-pin ATX 12V Power connector
|

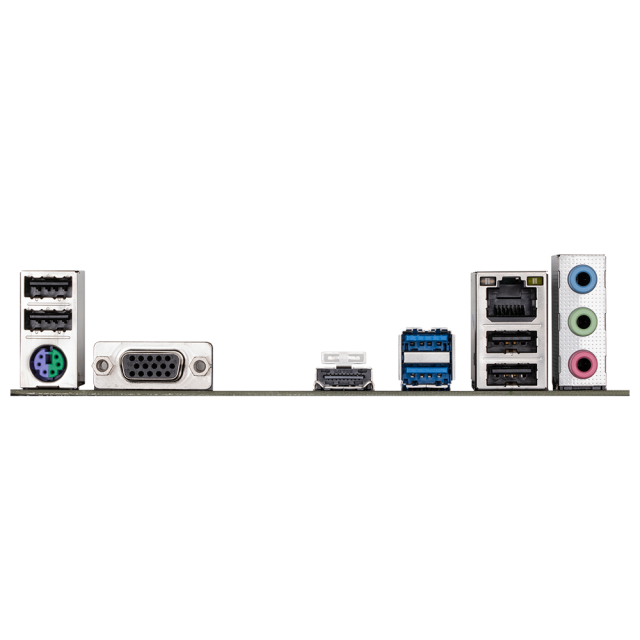

| Connectors |
1 x VGA
1 x HDMI port
1 x RJ-45
1 x PS/2 Keyboard
1 x PS/2 Mouse
3 x Audio jacks
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Micro ATX - 22.3 x 19.6 cm
|
| Other |
128 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 0.694 kg |
