Motherboard GIGABYTE B760M H, socket 1700
Ref. number: GA-MB-B760M-H-D4
available
View availability
София-ул.Христо Ковачев 34
Шереметя
Пловдив-ул.Янко Сакъзов 9
Motherboard GIGABYTE B760M H, socket 1700
available
View availability
София-ул.Христо Ковачев 34
Шереметя
Пловдив-ул.Янко Сакъзов 9
Ref. number: GA-MB-B760M-H-D4
Client
w/ VAT
w/ VAT
![](/resources/frontend/images/ucf_logo.png)
![](/resources/frontend/images/tbi_logo.png)
![]() |
![]() |
|
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|

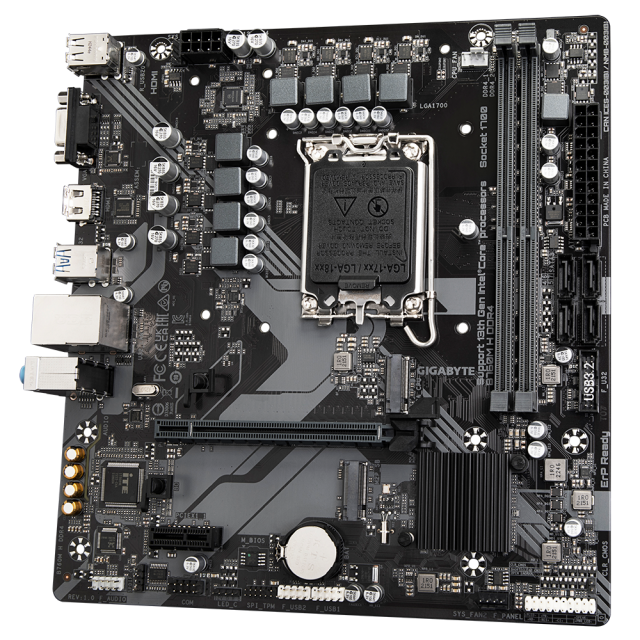

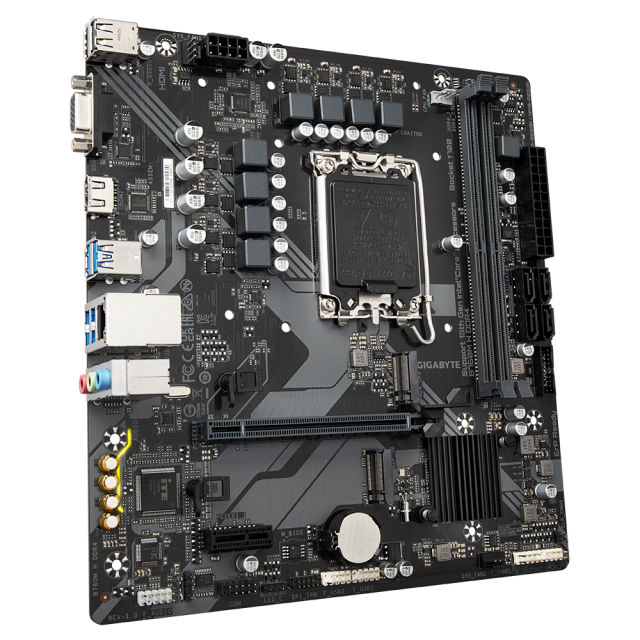

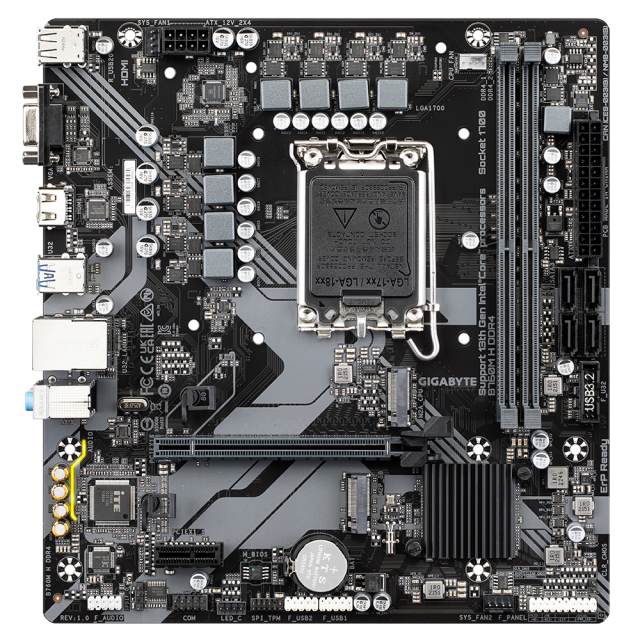

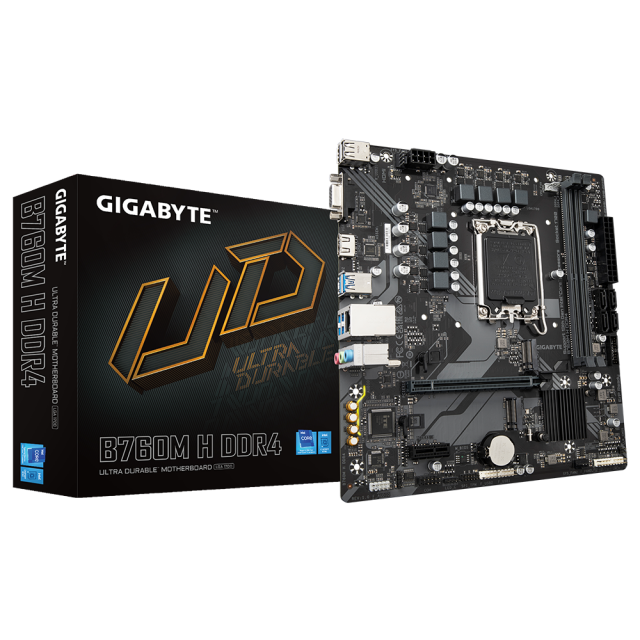

Motherboard GIGABYTE B760M H, socket 1700, mATX, 2xDDR4
- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4:2*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B760M H DDR4 |
Barcode | 4719331854645 |
CPU Socket |
1700
|
Chipset |
Intel B760
|
CPU supports |
12th Generation Intel
13th Generation Intel
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
3200 MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek AUDIO CODEC
|
Integrated LAN |
Realtek® GbE LAN chip (1000/100 Mbit)
|
Integrated Wi-Fi | |
PCI-E x16 |
1 x PCIe 4.0 x16
|
PCI Express x4 | |
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
Raid support |
0, 1, 5, 10
|
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

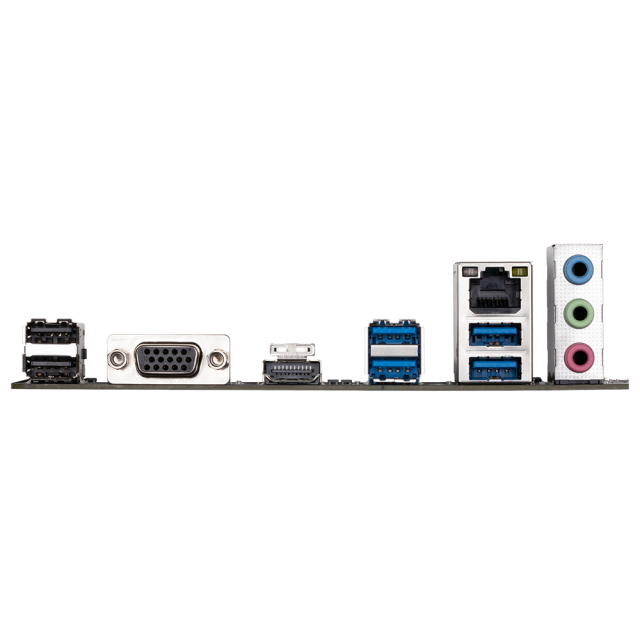

Connectors |
1 x HDMI port
1 x RJ-45
1 x VGA
3 x Audio jacks
|
USB Ports |
4 x USB 3.2 Gen 1
2 x USB 2.0
|
Dimension |
Micro ATX - 23.0 x 21.5 cm
|
Other |
128 Mb ROM, UEFI AMI BIOS
|
