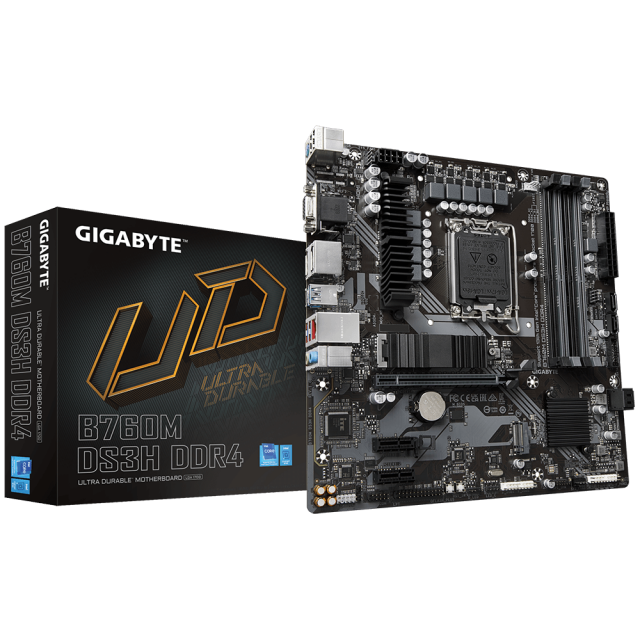

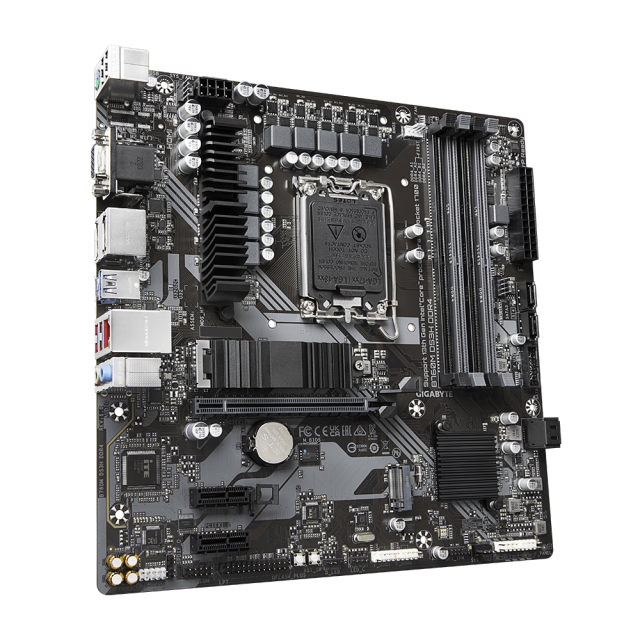

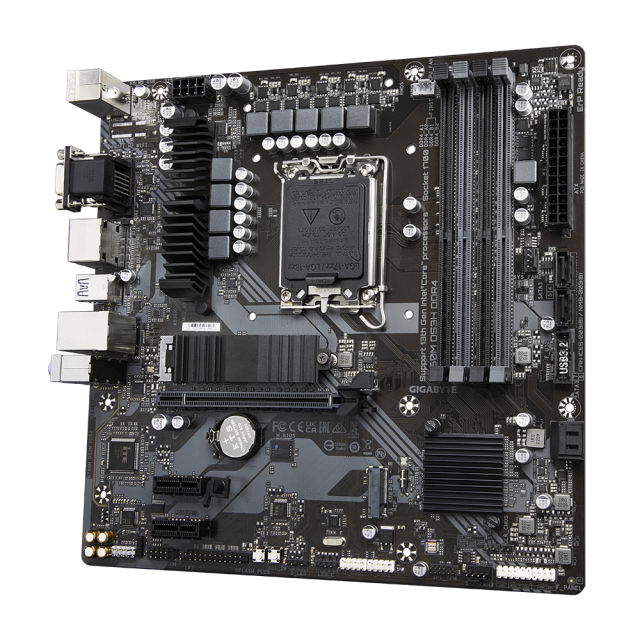

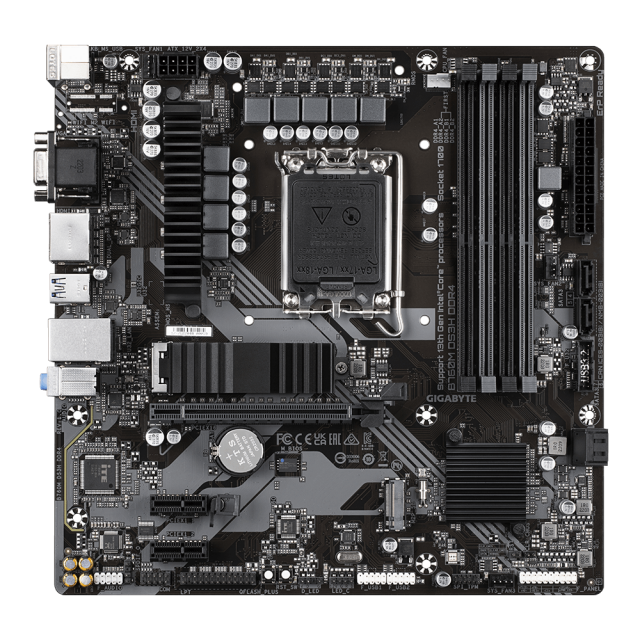

Motherboard GIGABYTE B760M DS3H, socket 1700, ATX
Ref. number: GA-MB-B760M-DS3H-D4
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard GIGABYTE B760M DS3H, socket 1700, ATX
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: GA-MB-B760M-DS3H-D4
Client
w/ VAT
w/ VAT
![](/resources/frontend/images/ucf_logo.png)
![](/resources/frontend/images/tbi_logo.png)
![]() |
![]() |
|
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
- Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
- Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR4:4*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B760M DS3H DDR4 |
Barcode | 4719331850876 |
CPU Socket |
1700
|
Chipset |
Intel B760
|
CPU supports |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
5333(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek AUDIO CODEC
|
Integrated LAN |
Realtek® GbE LAN chip (1000/100 Mbit)
|
Integrated Wi-Fi | |
PCI-E x16 |
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16
|
PCI Express x4 | |
PCI-E x1 |
2
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
|
Raid support |
0, 1, 5, 10
|
Power Connector |
1 x 24-pin;1 x 8-pin
|

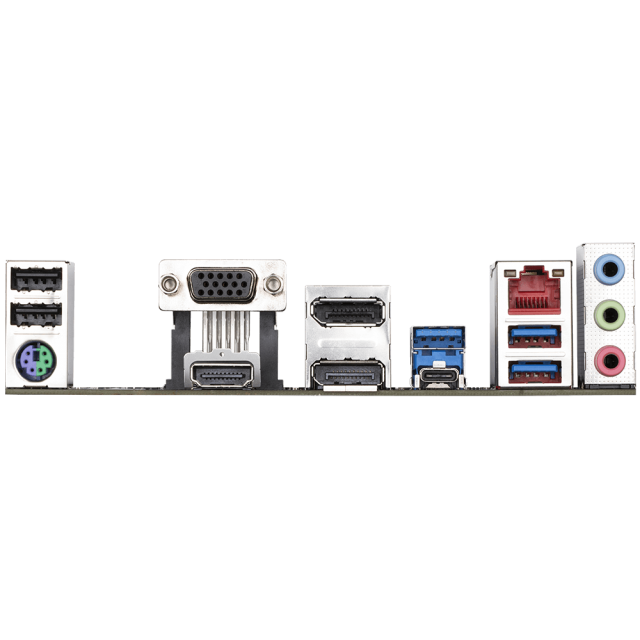

Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x PS/2 Mouse/Keyboard
|
USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 2.0
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other |
128 Mb ROM, UEFI AMI BIOS
|
