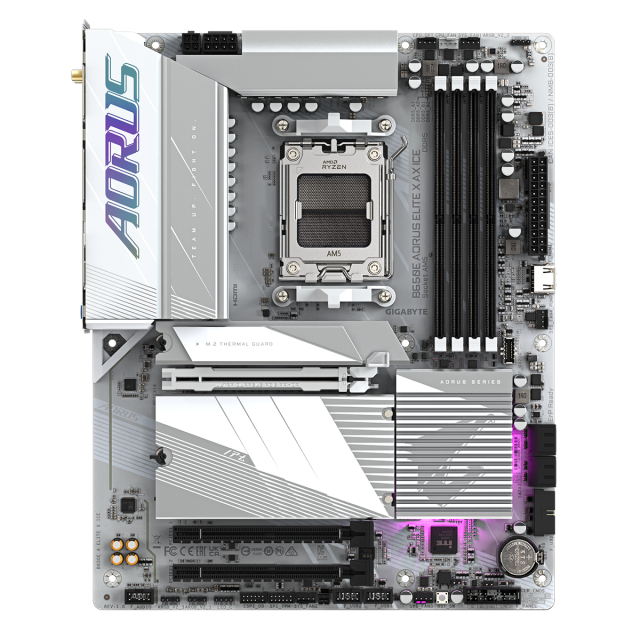

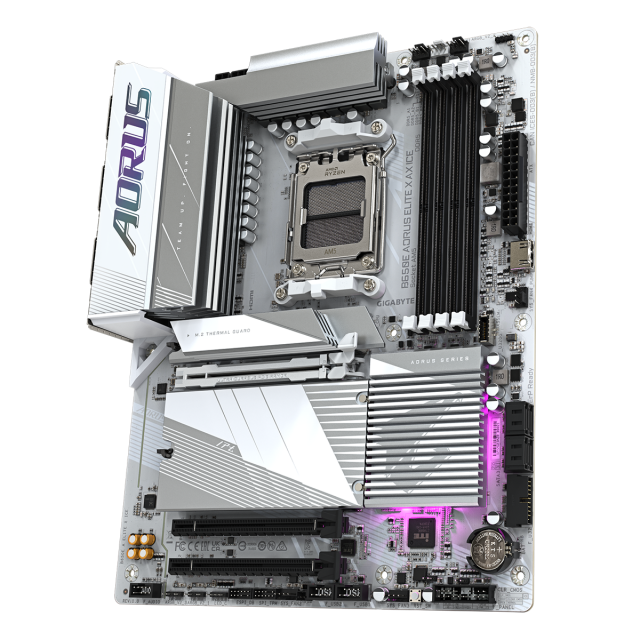

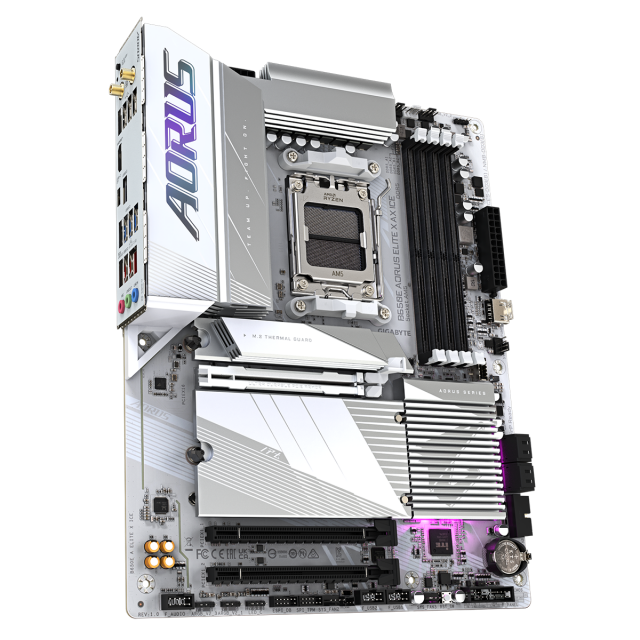

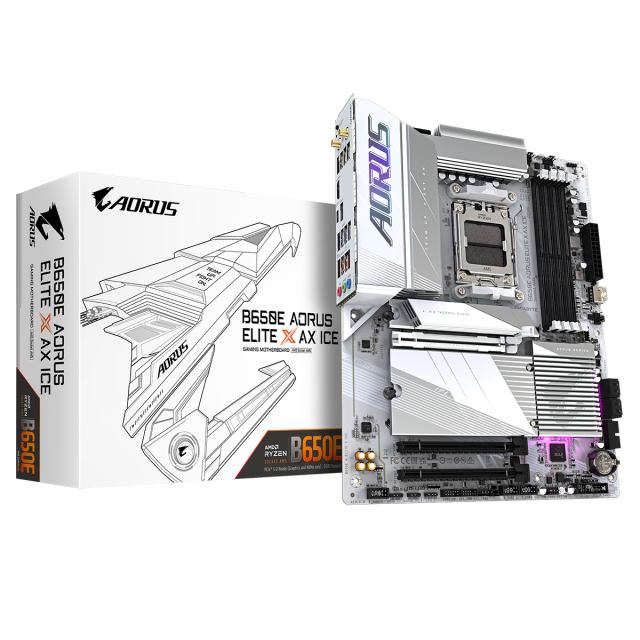

Motherboard GIGABYTE B650E AORUS ELITE X ICE, Socket AM5, DDR5
- AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- UC BIOS:User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x16
- Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking:2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity:HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
- Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B650E A ELITE X ICE |
Barcode | 4719331860554 |
CPU Socket |
AM5
|
Chipset |
AMD B650
|
CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
192 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
8000(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek AUDIO CODEC
|
Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
Integrated Wi-Fi |
Bluetooth 5.3
Realtek® Wi-Fi 6E RTL8852CE 802.11 ax
|
PCI-E x16 |
1 x PCIe 5.0 x16
|
PCI Express x4 | |
PCI-E x1 |
2
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
2 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support)
|
Raid support |
RAID 0/1/10 for M.2 NVMe
|
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
|

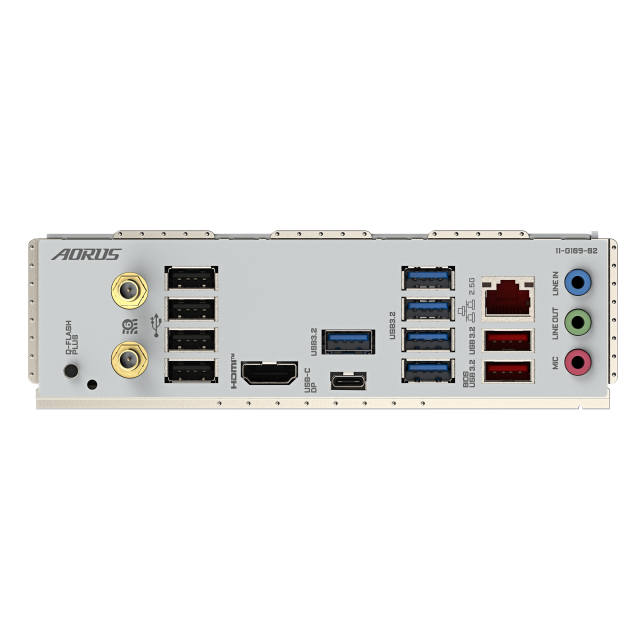

Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
2 x SMA antenna connectors
1 x Q-Flash Plus button
|
USB Ports |
1 x USB 3.2 Gen2 Type-C
5 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
4 x USB 2.0
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
