Motherboard GIGABYTE B650 AORUS ELITE AX V2
Ref. number: GA-MB-B650-A-ELITE-AX-V2
available
View availability
Шереметя
Motherboard GIGABYTE B650 AORUS ELITE AX V2
available
View availability
Шереметя
Ref. number: GA-MB-B650-A-ELITE-AX-V2
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy

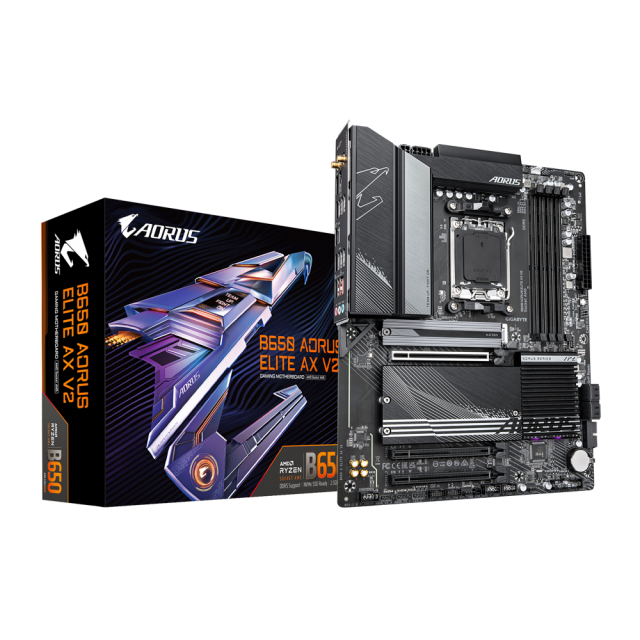

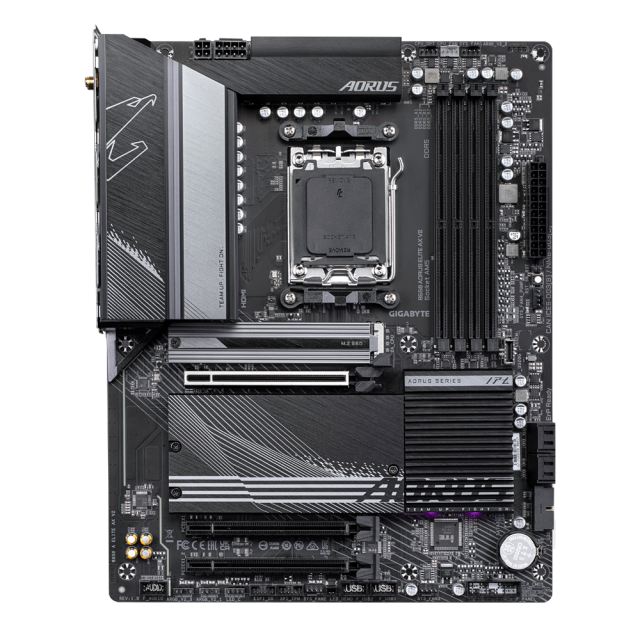

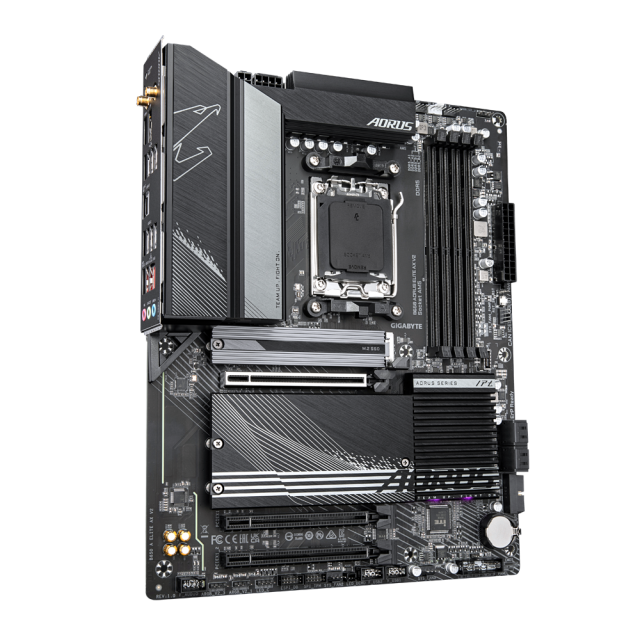

Motherboard GIGABYTE B650 AORUS ELITE AX V2, Socket AM5, Wi-Fi 6E, DDR5
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | B650 A ELITE AX V2 |
| Barcode | 4719331859381 |
| CPU Socket |
AM5
|
| Chipset |
AMD B650
|
| CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
192 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
8000(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek AUDIO CODEC
|
| Integrated LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Integrated Wi-Fi |
Bluetooth 5.3
Realtek® Wi-Fi 6E RTL8852CE 802.11 ax
|
| PCI-E x16 |
1 x PCIe 4.0/3.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support)
2 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSD support)
|
| Raid support |
RAID 0/1/10 for M.2 NVMe
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
|

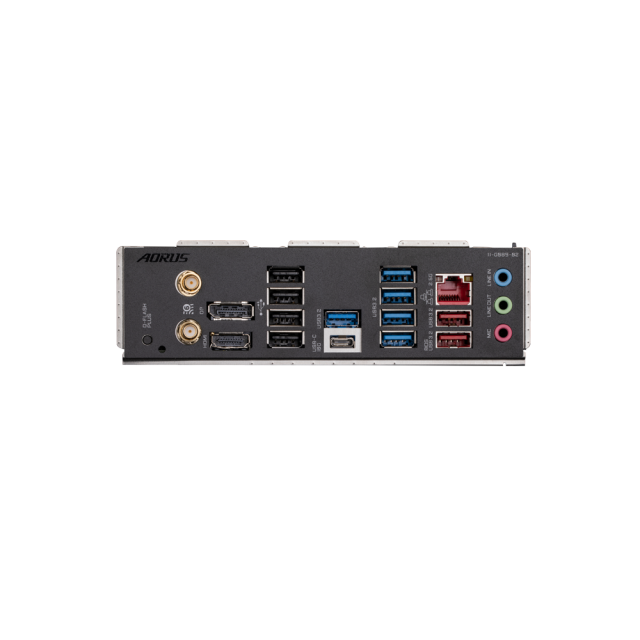

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
|
| USB Ports |
1 x USB 3.2 Gen2 Type-C
5 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
4 x USB 2.0
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Weight | 1.640 kg |
