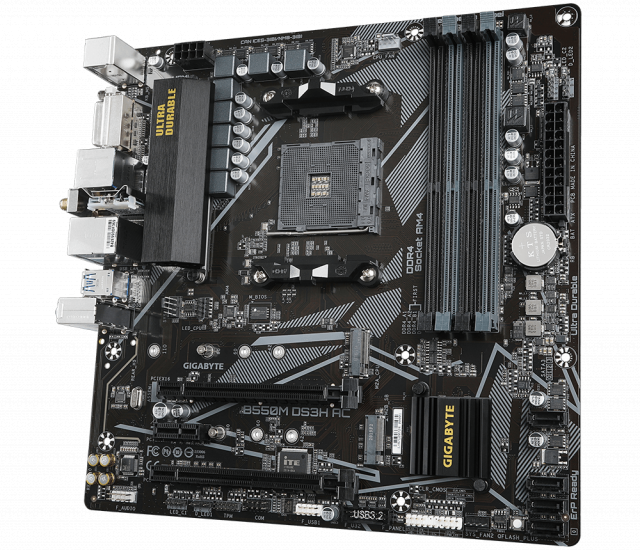

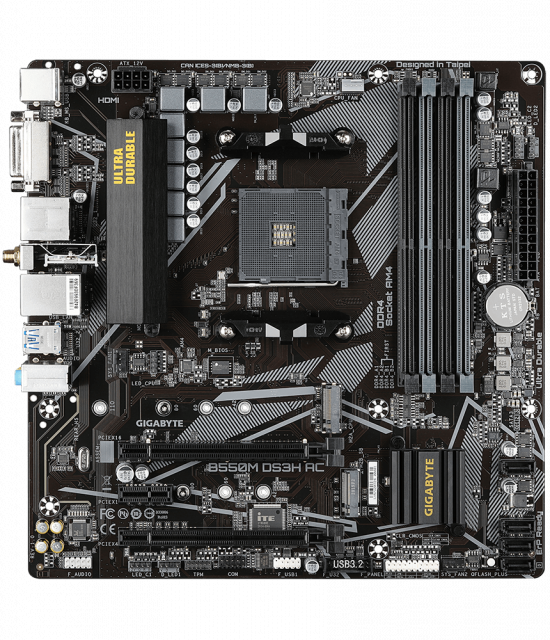

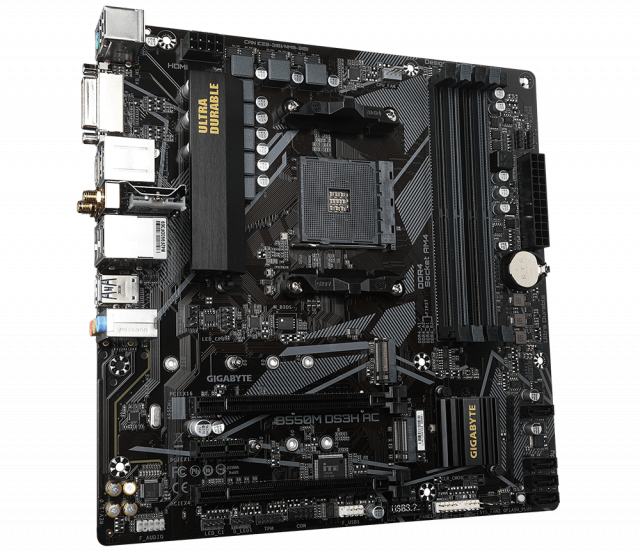

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Intel® Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B550M DS3H AC |
Barcode | 4719331810962 |
CPU Socket |
AM4
|
Chipset |
AMD B550
|
CPU supports |
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
4733(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek ALC887
|
Integrated LAN |
Realtek GbE LAN chip;(10/100/1000 Mbit)
|
Integrated Wi-Fi |
Intel® Wi-Fi AC 3168 - 802.11a/b/g/n/ac
|
PCI-E x16 |
1
|
PCI Express x4 | |
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
1 x M.2 connector type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSDs
1 x M.2 connector type 2242/2260/2280 Supporting SATA and PCIe 3.0 x2 SSDs
|
Raid support |
0,1,10
|
Power Connector |
1 x 24-pin;1 x 8-pin
|

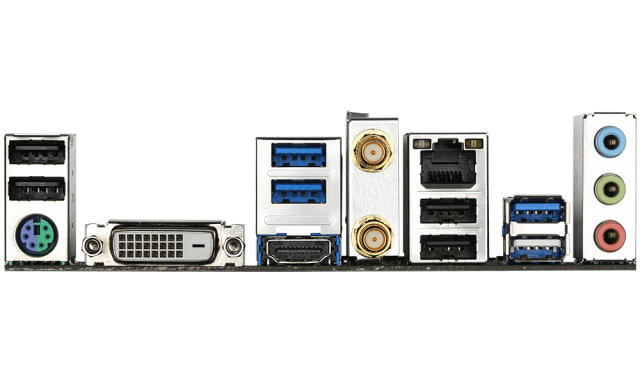

Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
2 x SMA antenna connectors
1 x DVI-D
1 x PS/2 Mouse/Keyboard
|
USB Ports |
4 x USB 3.2 Gen 1
4 x USB 2.0
|
Dimension |
Micro ATX - 24.4 x 24.4 cm
|
Other |
1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
