Motherboard GIGABYTE B550 GAMING X Socket AM4, 4 x DDR4, RGB Fusion, V2 (rev. 1.0)
Ref. number: GA-MB-B550-GAMING-X-V2
limited availability (up to 3)
View availability
Шереметя
Motherboard GIGABYTE B550 GAMING X Socket AM4, 4 x DDR4, RGB Fusion, V2 (rev. 1.0)
limited availability (up to 3)
View availability
Шереметя
Ref. number: GA-MB-B550-GAMING-X-V2
Client
w/ VAT
w/ VAT
![](/resources/frontend/images/ucf_logo.png)
![](/resources/frontend/images/tbi_logo.png)
![]() |
![]() |
|
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
Motherboard GIGABYTE B550 GAMING X Socket AM4, 4 x DDR4, RGB Fusion, V2 (rev. 1.0)
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B550 GAMING X V2 |
Barcode | 4719331810702 |
CPU Socket |
AM4
|
Chipset |
AMD B550
|
CPU supports |
AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
4733(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek ALC887
|
Integrated LAN |
Intel GbE LAN chips (10/100/1000 Mbit)
|
PCI-E x16 |
2 x PCIe 4.0/3.0 x16
|
PCI-E x1 |
2
|
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
|
Raid support |
0,1,10
|
Power Connector |
1 x 24-pin;1 x 8-pin
|
Connectors |

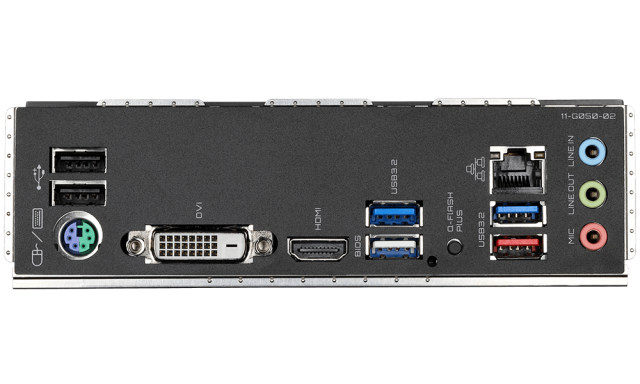

2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 3 x USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x Q-Flash Plus button, 1 x RJ-45 port, 3 x audio jacks
|
Other |
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
