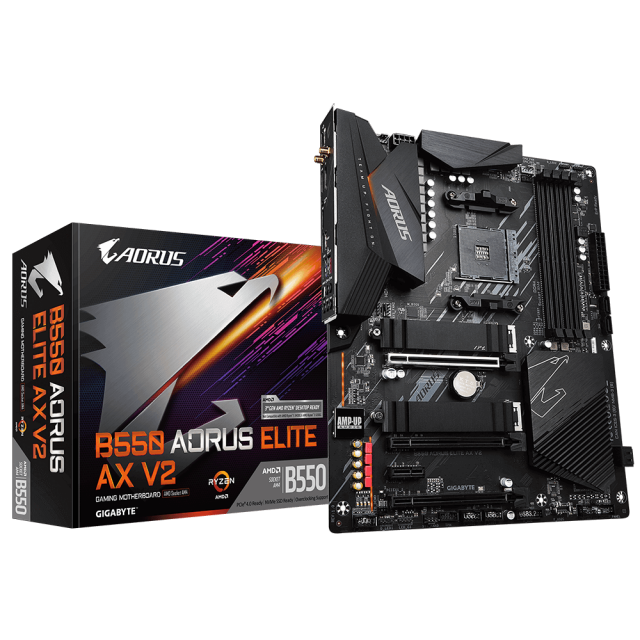

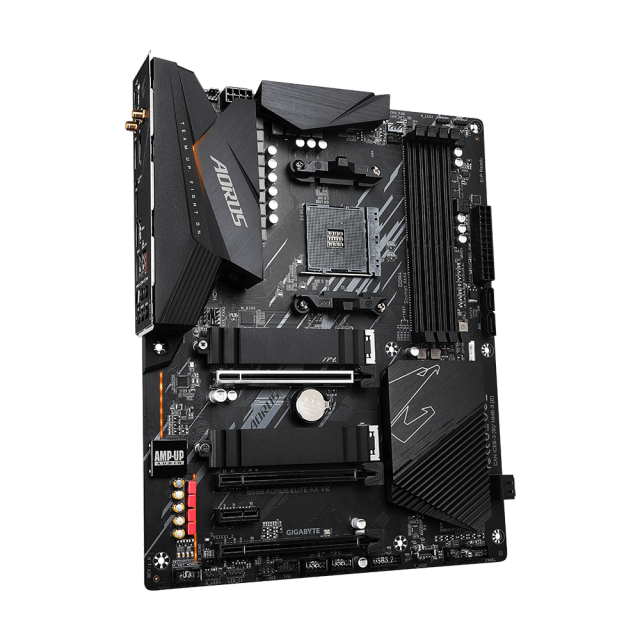

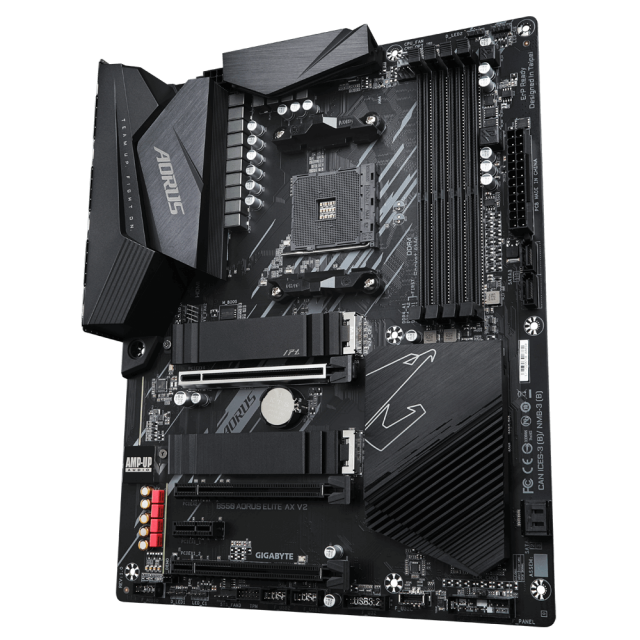

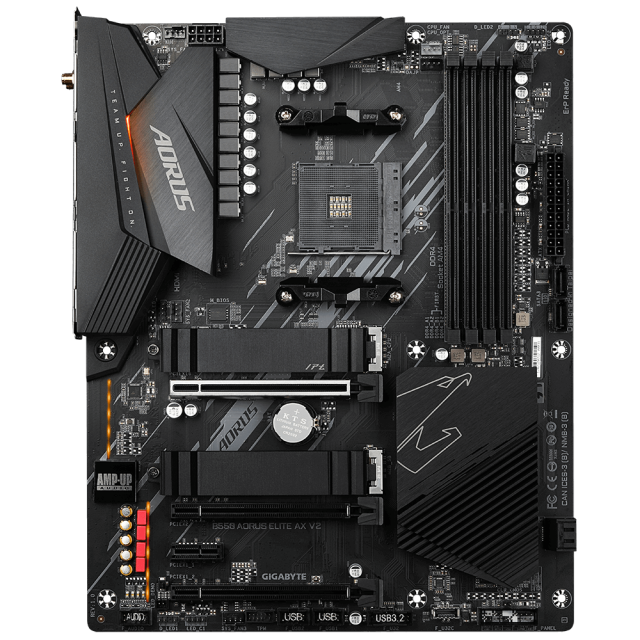

Motherboard GIGABYTE B550 AORUS ELITE AX V2 Socket AM4
Ref. number: GA-MB-B550-AORUS-E-AX-V2
View availability
Няма наличност
Motherboard GIGABYTE B550 AORUS ELITE AX V2 Socket AM4
View availability
Няма наличност
Ref. number: GA-MB-B550-AORUS-E-AX-V2
Online leasing
monthly payment | monthly payment | |
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
Manufacturer | GIGABYTE |
Warranty | 36 months |
Product code | B550 AORUS ELITE AX V2 |
Barcode | 4719331809904 |
CPU Socket |
AM4
|
Chipset |
AMD B550
|
CPU supports |
AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
4733(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek ALC1200 Audio Codec
|
Integrated LAN |
Realtek GbE LAN (10/100/1000 Mbit)
|
Integrated Wi-Fi |
Wi-Fi 6E RZ608
|
PCI-E x16 |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
|
PCI Express x4 | |
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)
|
Raid support |
0,1,10
|
Power Connector |
1 x 24-pin;1 x 8-pin
|

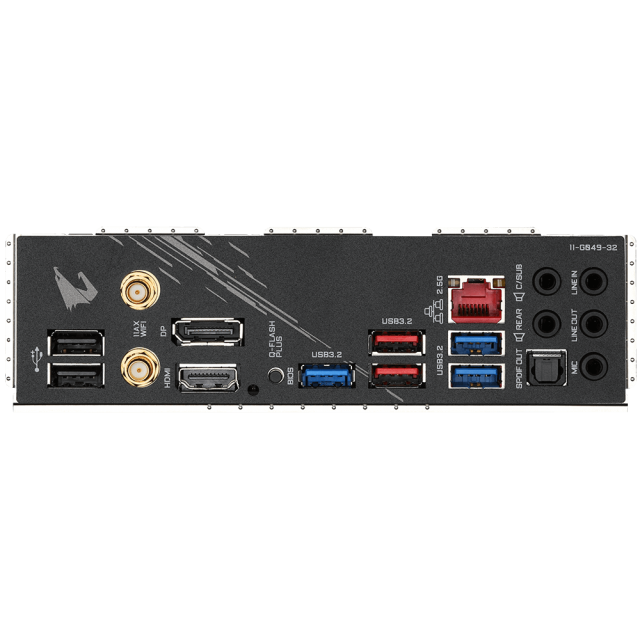

Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
1 x Q-Flash Plus button
2 x SMA antenna connectors
|
USB Ports |
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A
2 x USB 2.0
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other | |
Weight | 1.720 kg |
