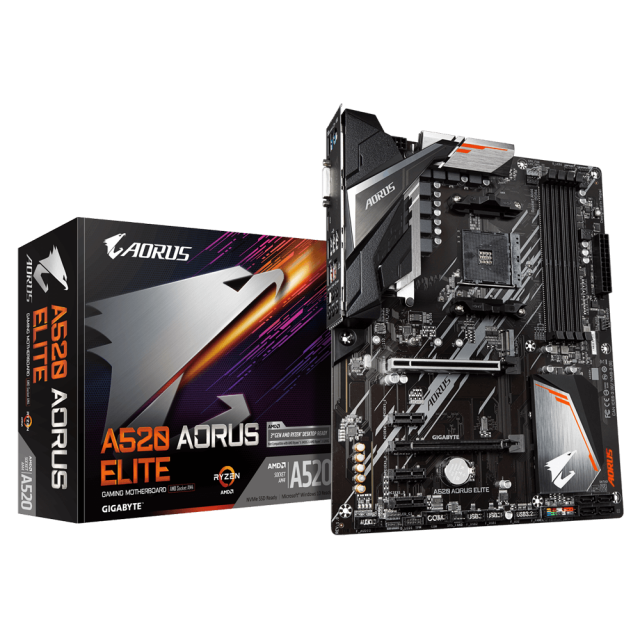

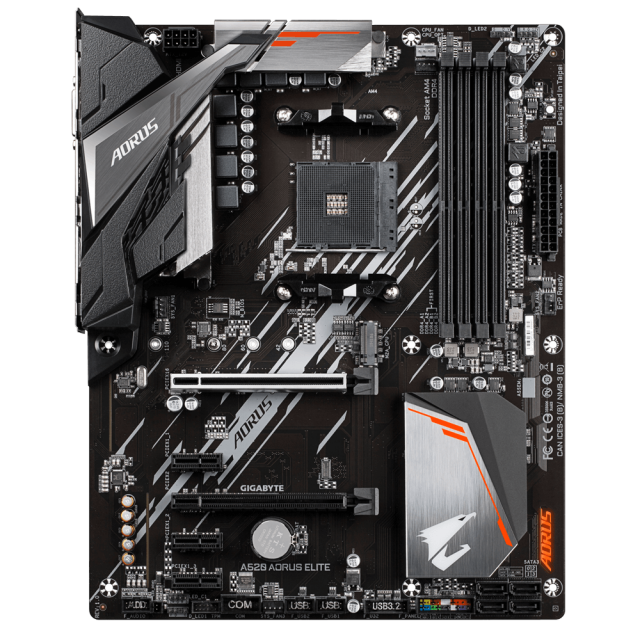

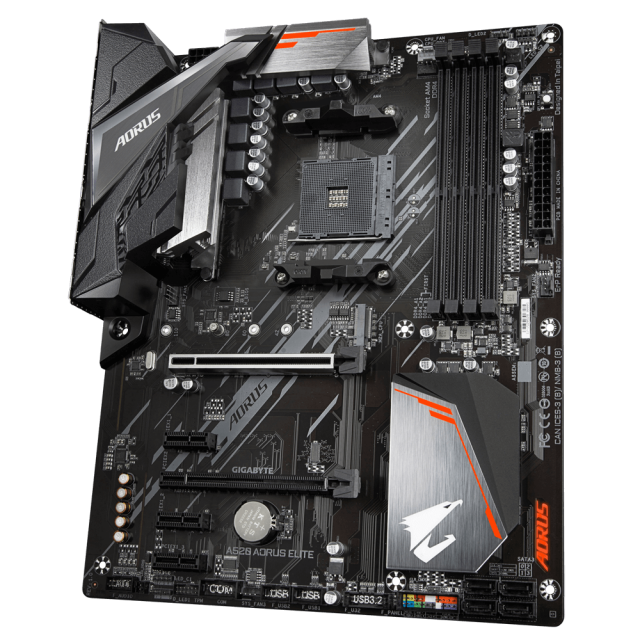

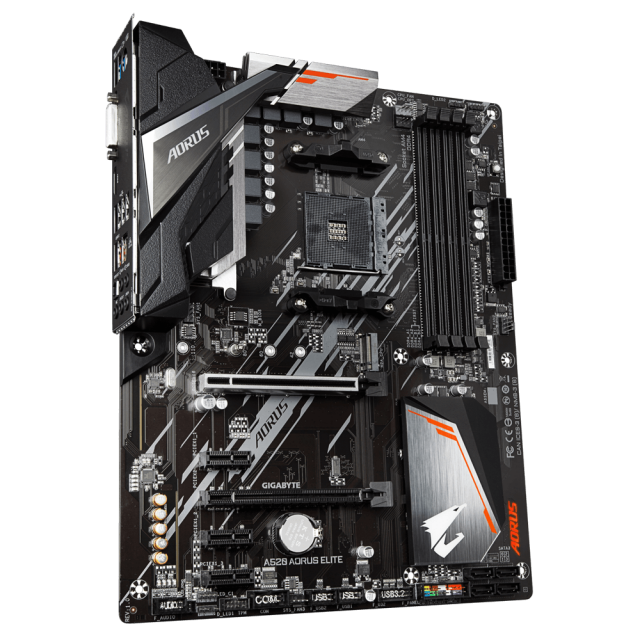

Motherboard GIGABYTE A520 AORUS ELITE AM4
Ref. number: GA-MB-A520-AORUS-ELITE
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard GIGABYTE A520 AORUS ELITE AM4
limited availability (up to 3)
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: GA-MB-A520-AORUS-ELITE
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
Дънна платка GIGABYTE A520 AORUS ELITE, AM4, ATX, DDR4
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- AMP-UP Audio with ALC1200 and High End Audio Capacitors
- GbE LAN with Bandwidth Management
- HDMI, DVI-D Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
| Manufacturer | GIGABYTE |
| Warranty | 36 months |
| Product code | A520 AORUS ELITE 1.1 |
| Barcode | 4719331809812 |
| CPU Socket |
AM4
|
| Chipset |
AMD A520
|
| CPU supports |
3rd Generation AMD
4th Generation AMD
5000 Series AMD Ryzen
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
4733(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC1200 Audio Codec
|
| Integrated LAN |
Realtek GbE LAN chip;(10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1 x PCIe 3.0/2.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
2
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD)
|
| Raid support |
0,1,10
|
| Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

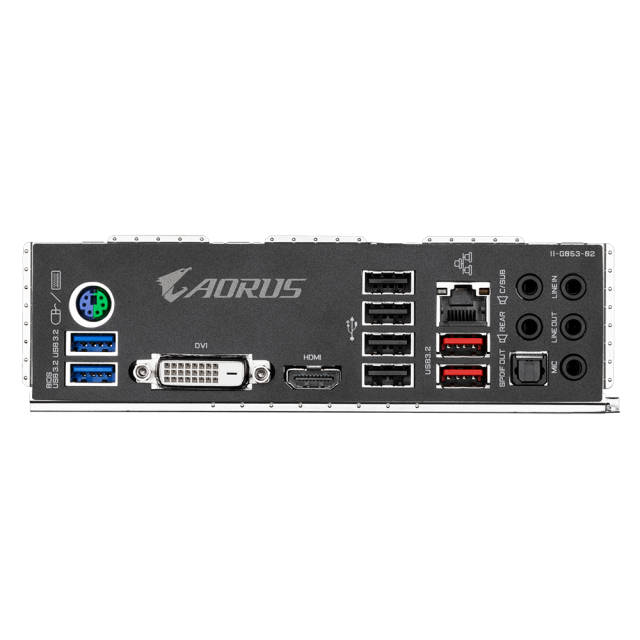

| Connectors |
1 x HDMI port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
1 x DVI-D
1 x Q-Flash Plus button
1 x PS/2 Mouse/Keyboard
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1
4 x USB 2.0
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
