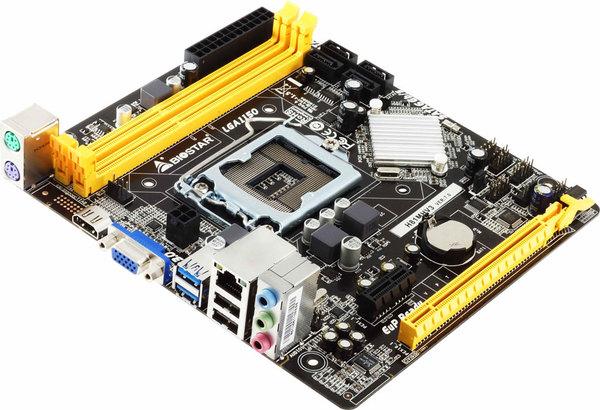

Motherboard BIOSTAR H81MHV3, Intel H81, sock. 1150, Ver 7.3
Ref. number: BIO-MB-H81MHV3
available
View availability
София-ул.Христо Ковачев 34
Шереметя
София-ул.Марин Русев 6А
Варна-бул.Хр.Смирненски 239
Motherboard BIOSTAR H81MHV3, Intel H81, sock. 1150, Ver 7.3
available
View availability
София-ул.Христо Ковачев 34
Шереметя
София-ул.Марин Русев 6А
Варна-бул.Хр.Смирненски 239
Ref. number: BIO-MB-H81MHV3
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy
Model: H81MHV3 Ver. 7.x
Chipset: Intel H81
Audio: Realtek ALC662 6-Channel HD Audio
LAN: Realtek RTL8111G - 10/100/1000Mb/s Controller
Expansion slots:
1 x PCI-E 2.0 x16 Slot
1 x PCI-E 2.0 x1 Slot
I/O:
2 x USB 2.0 Header
2 x SATA III Connector (6Gb/s)
2 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header

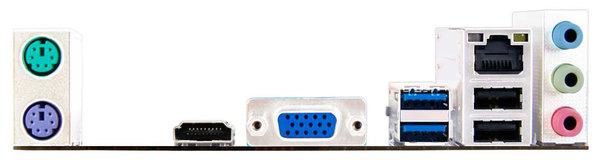

Backpanel I/O:
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
| Manufacturer | BIOSTAR |
| Warranty | 24 months |
| Product code | H81MHV3 |
| Barcode | 4712960685598 |
| CPU Socket |
1150
|
| Chipset |
Intel H81
|
| CPU supports |
Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
|
| Memory Standard |
DDR3
|
| Maximum Memory Supported |
16 GB
|
| Number of Memory Slots |
2
|
| Frequency Memory |
1600 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek ALC662 6-Channel HD Audio
|
| Integrated LAN |
Realtek RTL8111G chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi | |
| PCI-E x16 |
1
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA2 3.0 Gb/s
2 x SATA3 6.0 Gb/s
|
| M2 socket | |
| Raid support | |
| Power Connector | |
| Connectors | |
| USB Ports | |
| Dimension | |
| Other |
