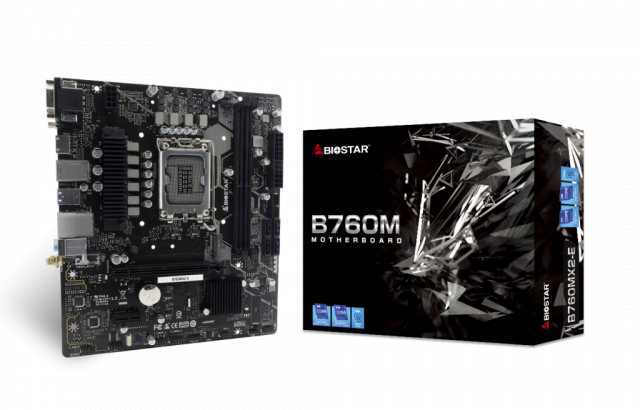

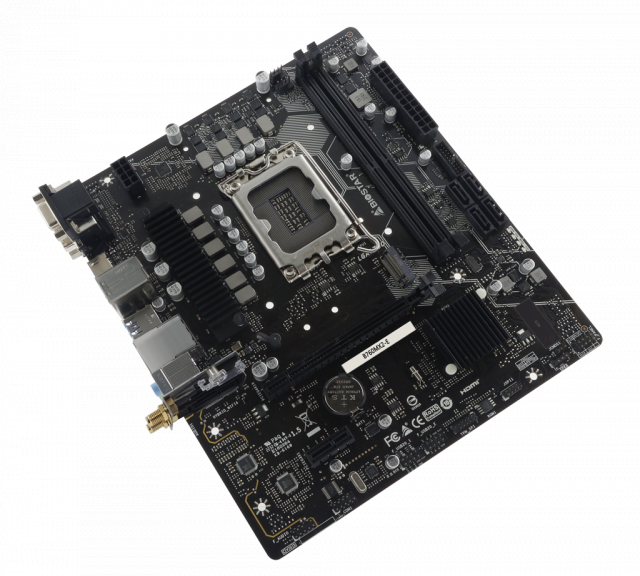

Motherboard BIOSTAR B760MX2-E DDR5, Socket 1700, mATX
- Supports 12th/ 13th Generation Intel Core™ Processor
- Intel B760 single chip architecture
- Supports 2-DIMM DDR5 up to 96 GB Memory
- Supports PCIe 4.0
- Supports PCIe 4.0 M.2 (64Gb/s)
- Supports HDMI 4K2K
- Supports USB 3.2 Gen1
- Support WiFi 6 & 6E module (No WiFi card included)
- Support 2.5G LAN
Manufacturer | BIOSTAR |
Warranty | 36 months |
Product code | B760MX2-E |
Barcode | 4712960686892 |
CPU Socket |
1700
|
Chipset |
Intel B760
|
CPU supports |
12th Generation Intel
13th Generation Intel
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
96 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
6000(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
Integrated LAN |
Realtek RTL8125B 2.5Gb Ethernet
|
Integrated Wi-Fi |
No
|
PCI-E x16 |
1 x PCIe 4.0 x16
|
PCI-E x1 |
1
|
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
1 x M.2 Socket Type 2242 /2260 /2280 SSD Supports PCIe 4.0 x4
|
Raid support |
0, 1, 5, 10
|
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

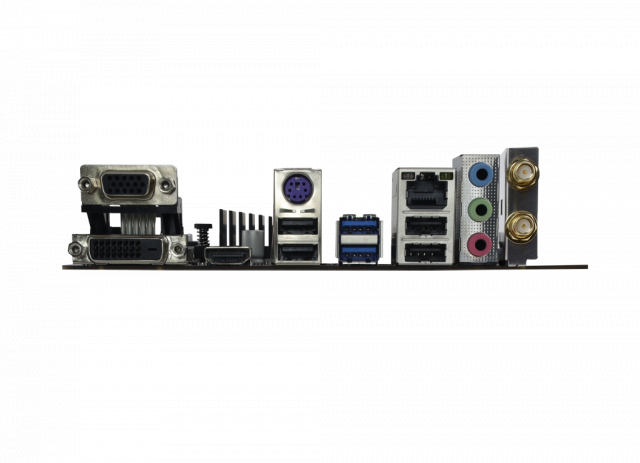

Connectors |
1 x HDMI port
1 x RJ-45
1 x VGA
3 x Audio jacks
1 x DVI-D
1 x PS/2 Mouse/Keyboard
|
USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
Dimension |
Micro ATX - 23.6 x 20.8 cm
|
Other |
128 Mb ROM, UEFI AMI BIOS
|
