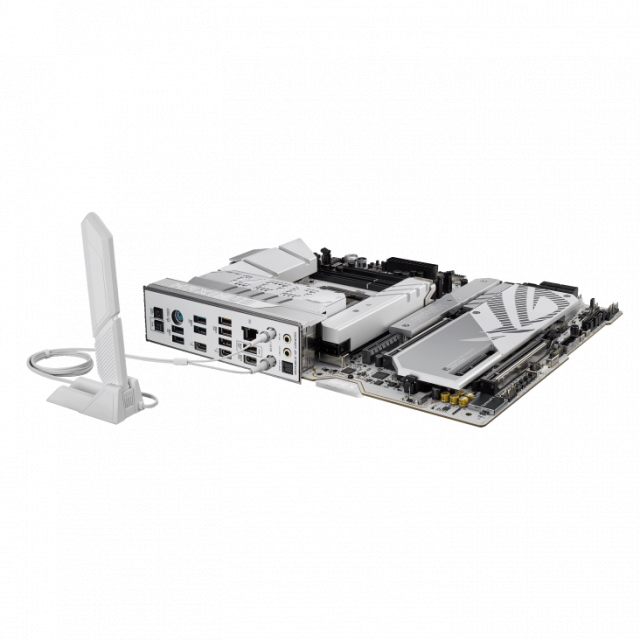

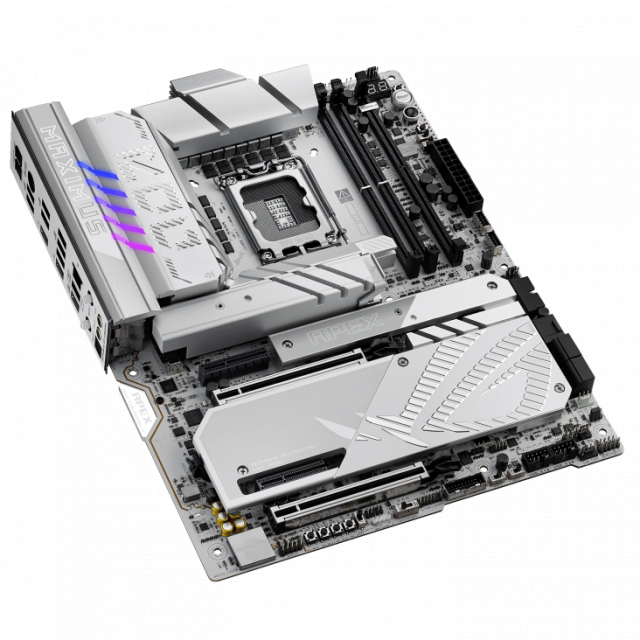

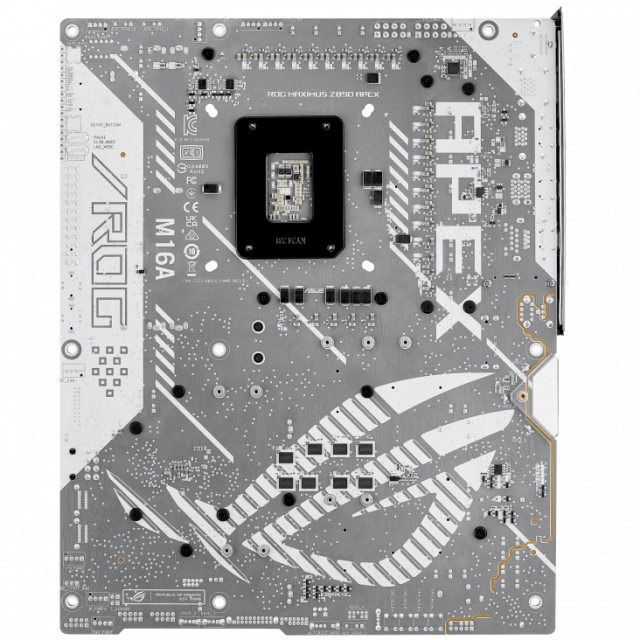

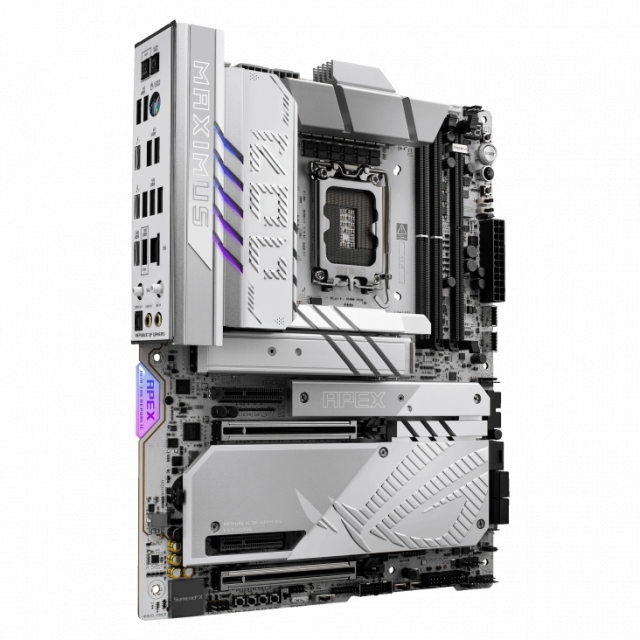

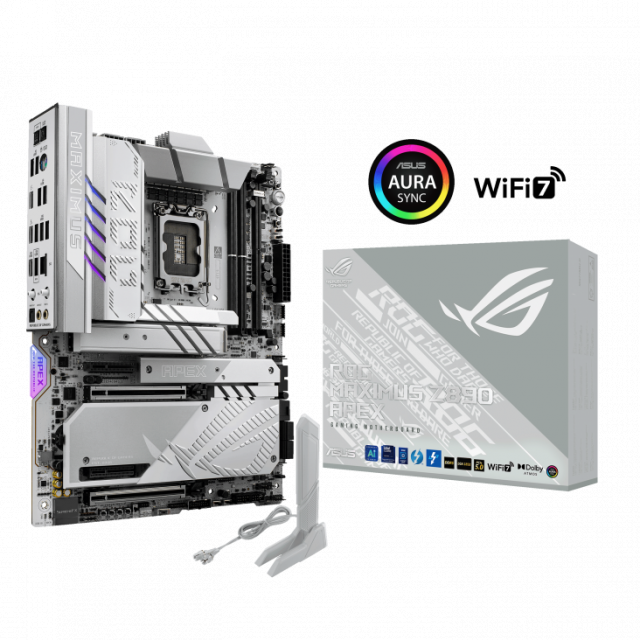

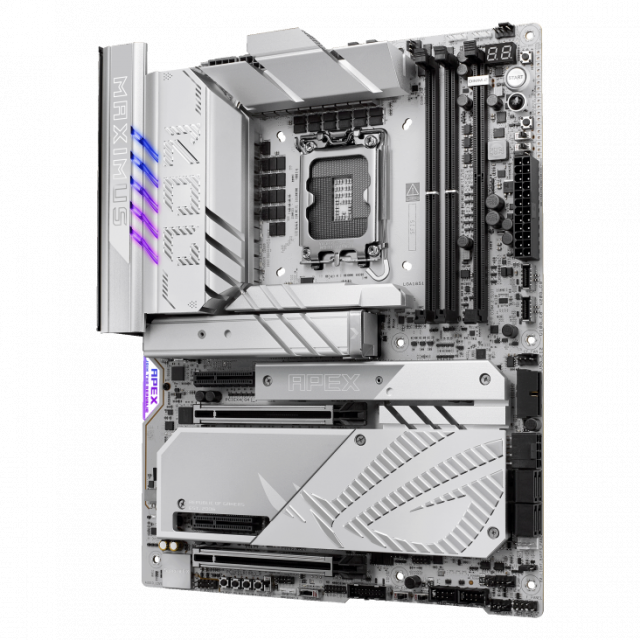

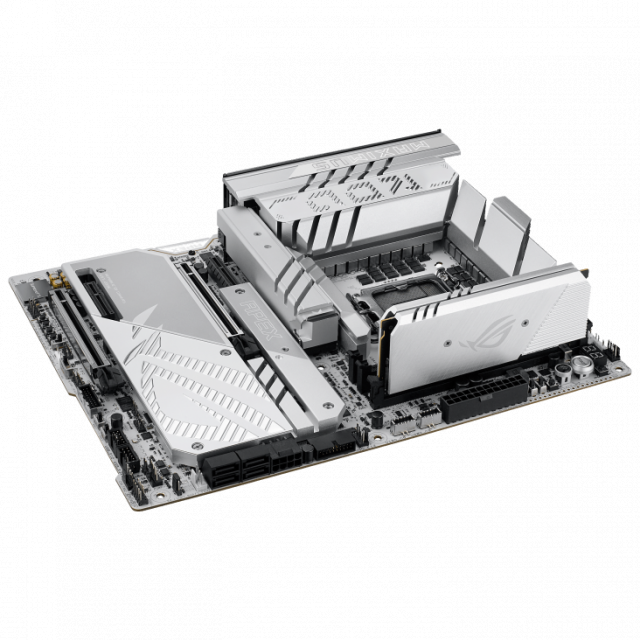

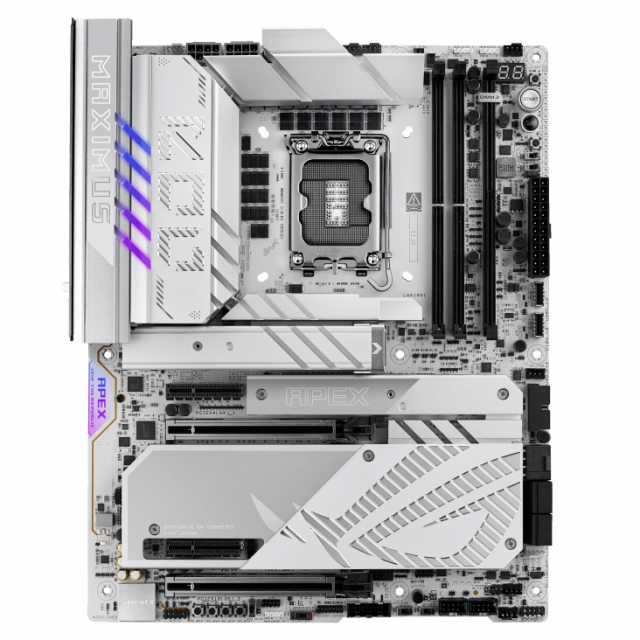

Motherboard ASUS ROG MAXIMUS Z890 APEX, LGA 1851
Ref. number: ASUS-MB-ROG-Z890-APEX
View availability
Шереметя
New
Motherboard ASUS ROG MAXIMUS Z890 APEX, LGA 1851
View availability
Шереметя
Ref. number: ASUS-MB-ROG-Z890-APEX
Online leasing
monthly payment | monthly payment | |
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB1IP0-M0EAY0 |
Barcode | 4711387754290 |
CPU Socket |
1851
|
Chipset |
Intel Z890
|
CPU supports |
Intel® Core™ Ultra Processors (Series 2)
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
96 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
9600(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
ALC4080 + Savitech SV3H712 AMP
Supports up to 32-Bit/384 kHz playback
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
|
Integrated LAN |
1 x Realtek 5Gb Ethernet
|
Integrated Wi-Fi |
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
|
PCI-E x16 |
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
|
PCI Express x4 |
1
|
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
DIMM.2_1,2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
Raid support |
0, 1, 5, 10
|
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x 8-pin +12V Power connector
|

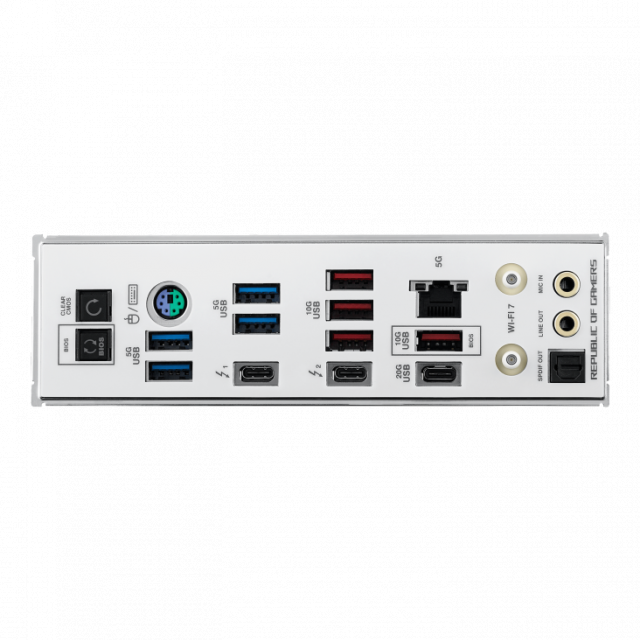

Connectors |
1 x PS/2 Mouse/Keyboard
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
2 x SMA antenna connectors
1 x Clear CMOS button
1 x Realtek 5Gb Ethernet port
|
USB Ports |
1 x USB 20Gbps port Type-C
2 x Thunderbolt 4.0 USB Type-C
4 x USB 5Gbps ports Type-A
4 x USB 10Gbps ports Type-A
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
Weight | 1.224 kg |
