Motherboard ASUS ProArt Z790-CREATOR WIFI, LGA 1700
Ref. number: ASUS-MB-PRO-Z790-C-WF
available
View availability
Шереметя
Motherboard ASUS ProArt Z790-CREATOR WIFI, LGA 1700
available
View availability
Шереметя
Ref. number: ASUS-MB-PRO-Z790-C-WF
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy

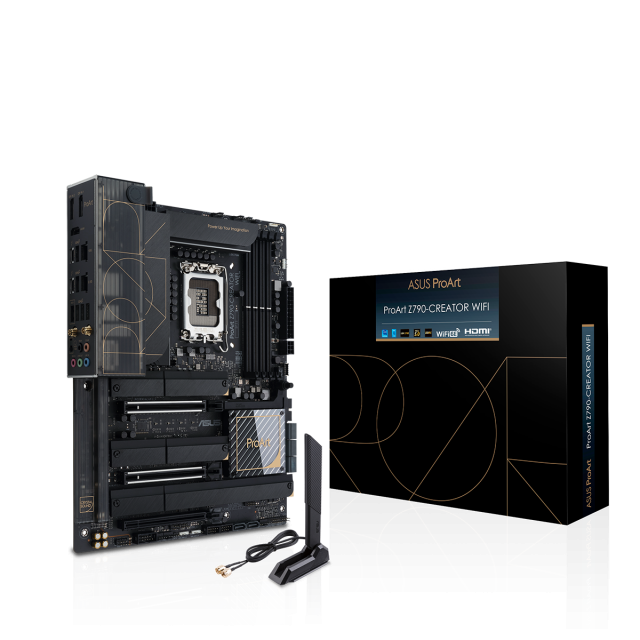

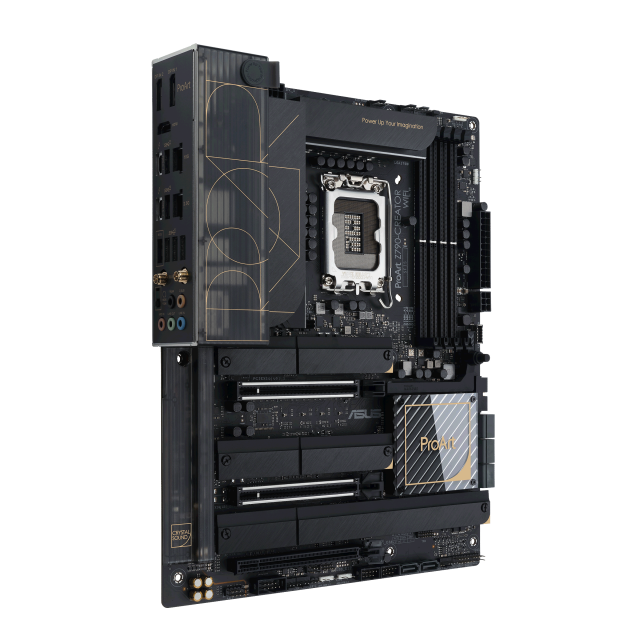

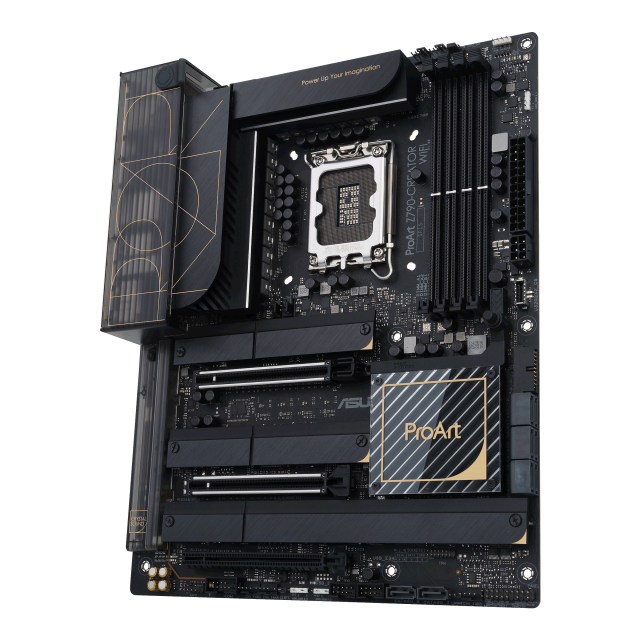

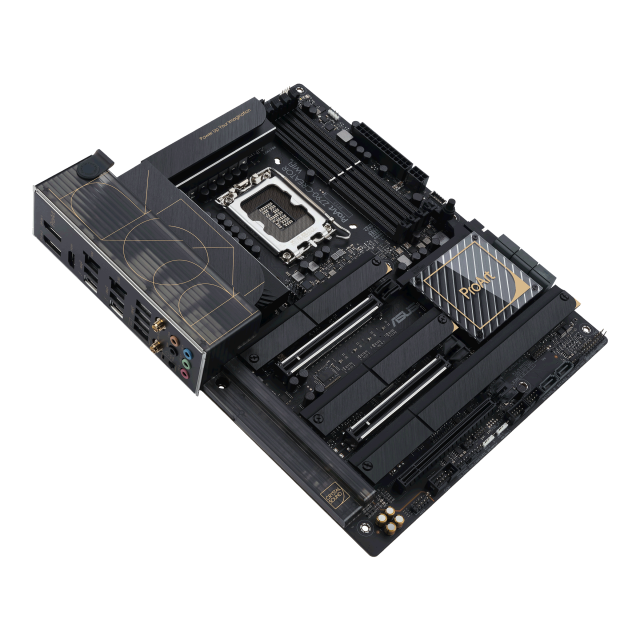

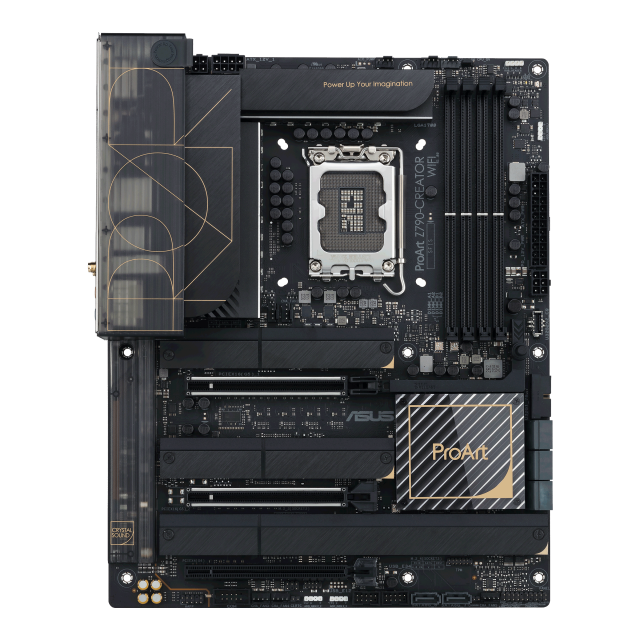

Motherboard ASUS ProArt Z790-CREATOR WIFI, LGA 1700, ATX, Wi-Fi 6E, DDR5, PCIe 5.0
| Manufacturer | ASUS |
| Warranty | 36 months |
| Product code | 90MB1DV0-M0EAY0 |
| Barcode | 4711081988984 |
| CPU Socket |
1700
|
| Chipset |
Intel Z790
|
| CPU supports |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
|
| Integrated LAN |
ASUS LANGuard
1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
|
| Integrated Wi-Fi |
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
|
| PCI-E x16 |
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
|
| PCI-E x1 |
1
|
| Interface Serial ATA |
8 x SATA3 6.0 Gb/s
|
| M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
|
| Raid support |
0, 1, 5, 10
|
| Power Connector |
1x 24-pin; 1x 8-pin; 1x 4-pin
1 x 6-pin PCIe Power connector
|

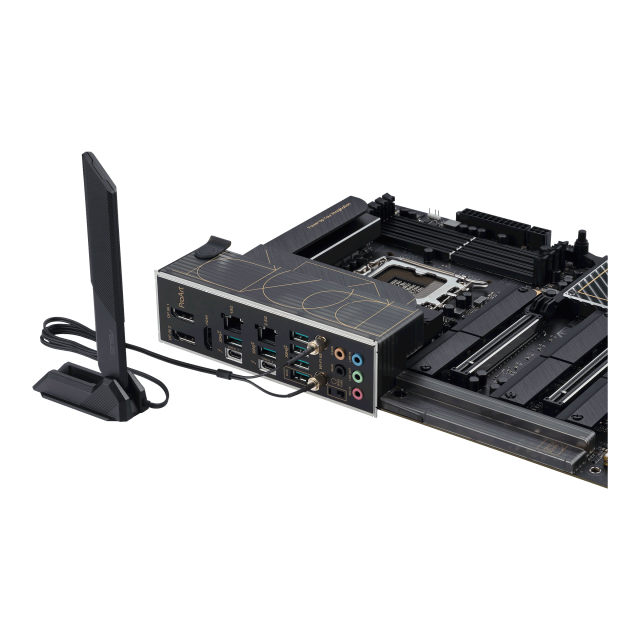

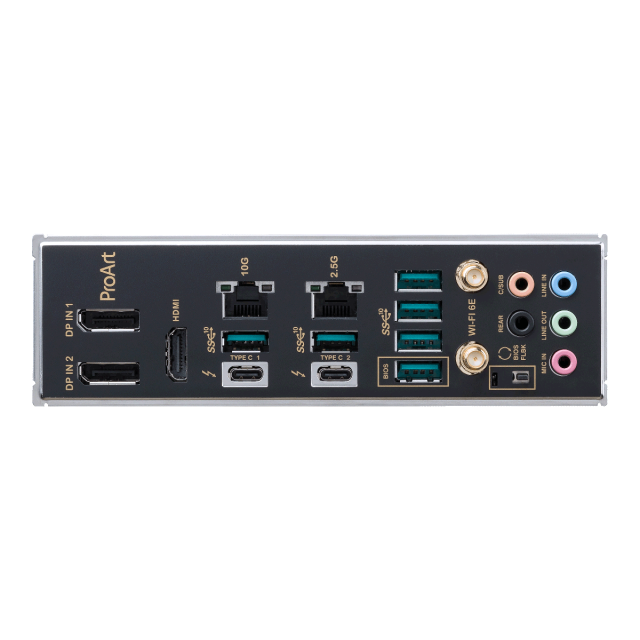

| Connectors |
1 x HDMI port
1 x BIOS Flashback Button
2 x Thunderbolt
2 x Display Port
1 x ASUS Wi-Fi Module
5 x Audio jacks
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
|
| USB Ports |
4 x USB 3.2 Gen 1 Type-A
2 x USB 3.2 Gen 2 Type-A
|
| Dimension |
ATX - 30.5 x 24.4 cm
|
| Other |
256 Mb Flash ROM, UEFI AMI BIOS
|
