Motherboard ASUS ProArt B650-CREATOR socket AM5, 4xDDR5
ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ Desktop Processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB1C40-M0EAY0 |
Barcode | 4711081988090 |
CPU Socket |
AM5
|
Chipset |
AMD B650
|
CPU supports |
AMD 7000 Series Processors
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
7600(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
Integrated LAN |
1 x Realtek 2.5Gb Ethernet
|
Integrated Wi-Fi |
No
|
PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
|
PCI Express x4 |
1
|
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
Raid support |
0,1,10
|
Power Connector |
1 x 4-pin +12V Power connector
1 x 24-Pin Power Connector
1 x 8-Pin Power Connector
1 x 6-Pin PCIe Power Connector
|

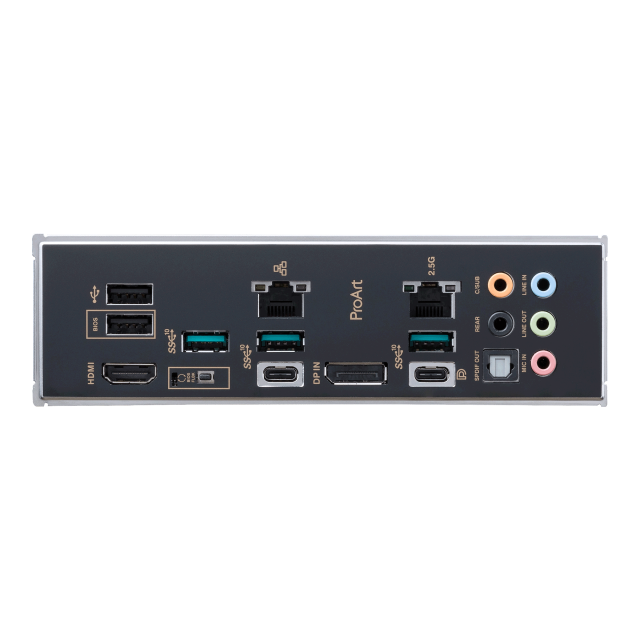

Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
1 x BIOS Flashback Button
5 x Audio jacks
2 x RJ-45
|
USB Ports |
3 x USB 3.2 Gen 2
2 x USB 2.0
2 x USB 3.2 Gen 2 Type-C
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other |
Bios: 256 Mb Flash ROM, UEFI AMI BIOS
|
