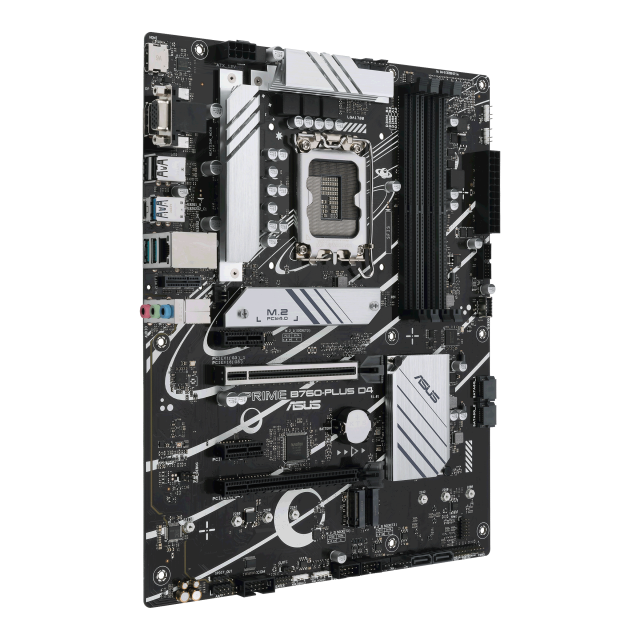

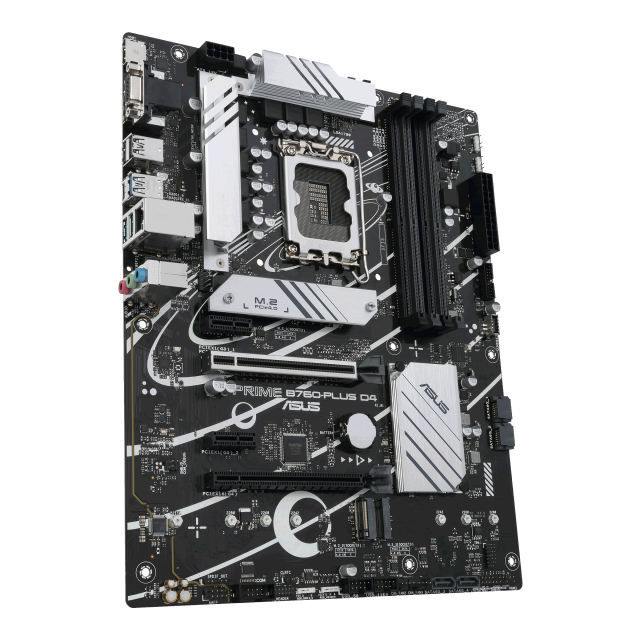

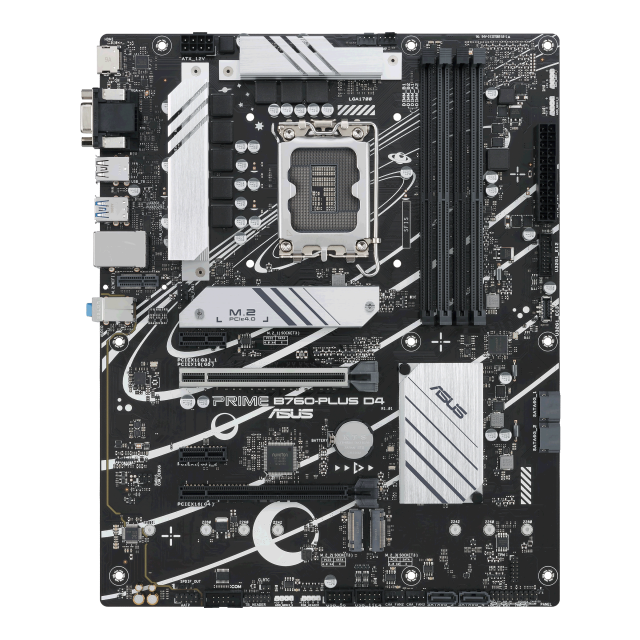

Motherboard ASUS PRIME B760-PLUS D4, LGA 1700, ATX
Ref. number: ASUS-MB-PRIME-B760-PLUS
View availability
Велико Търново-ул.Самуил 6
Шереметя
София-ул.Марин Русев 6А
Motherboard ASUS PRIME B760-PLUS D4, LGA 1700, ATX
View availability
Велико Търново-ул.Самуил 6
Шереметя
София-ул.Марин Русев 6А
Ref. number: ASUS-MB-PRIME-B760-PLUS
Online leasing
monthly payment | monthly payment | |
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
Motherboard ASUS PRIME B760-PLUS D4, LGA 1700, ATX, 4xDDR4, PCIe 5.0
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB1CW0-M1EAY0 |
Barcode | 4711081970309 |
CPU Socket |
1700
|
Chipset |
Intel B760
|
CPU supports |
12th Generation Intel
13th Generation Intel
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
5066(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
Premium audio capacitors
|
Integrated LAN |
1 x Intel® 2.5Gb Ethernet
|
Integrated Wi-Fi |
No
|
PCI-E x16 |
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
|
PCI Express x4 |
1
|
PCI-E x1 |
2
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
|
Raid support |
SATA RAID 0/1/5/10
|
Power Connector |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
|

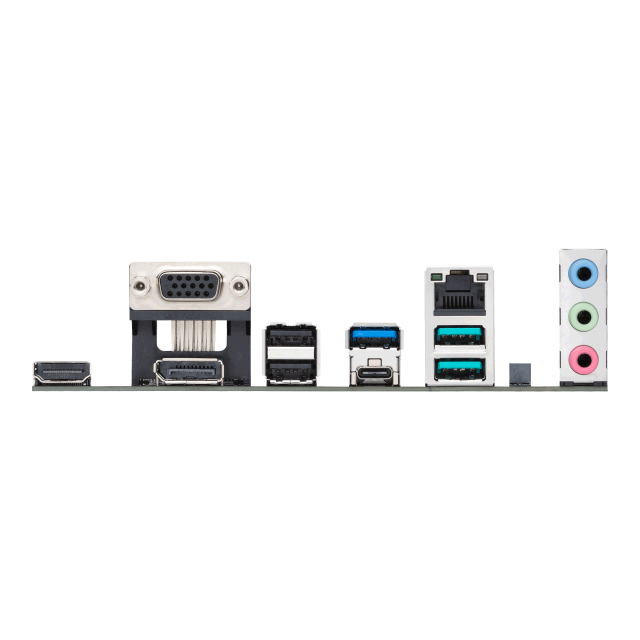

Connectors |
1 x VGA
1 x HDMI port
1 x Display Port
1 x RJ-45
3 x Audio jacks
|
USB Ports |
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A
2 x USB 2.0
|
Dimension |
ATX - 30.5 x 24.4 cm
|
Other | |
Weight | 0.000 kg |
