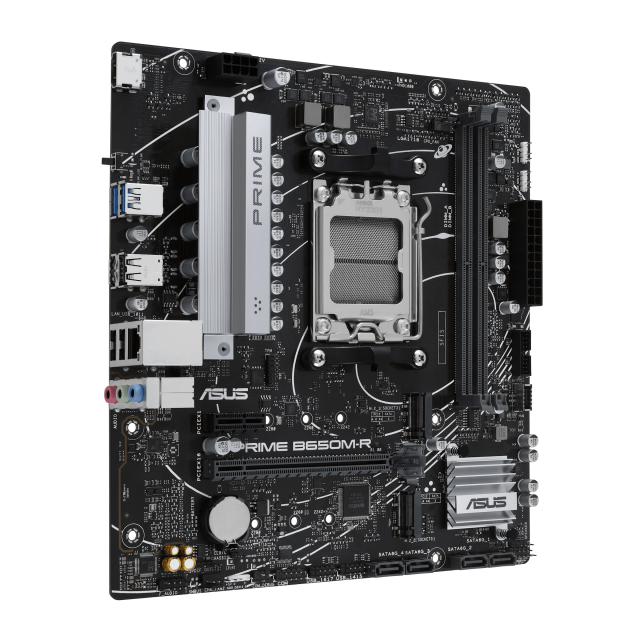

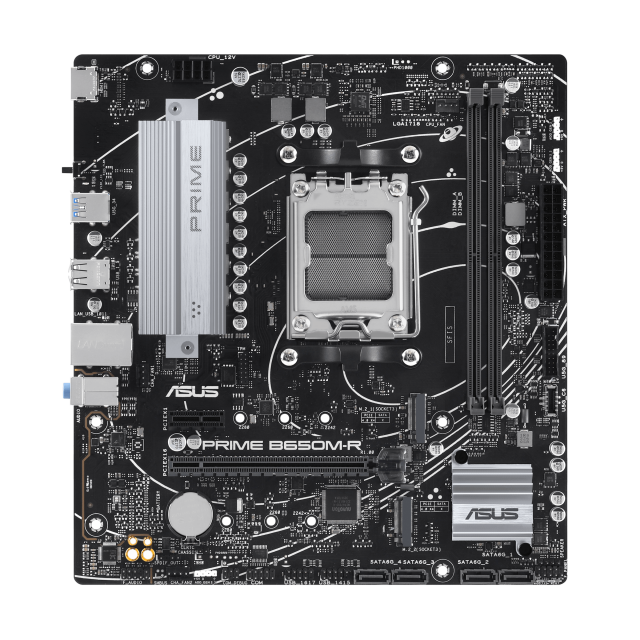

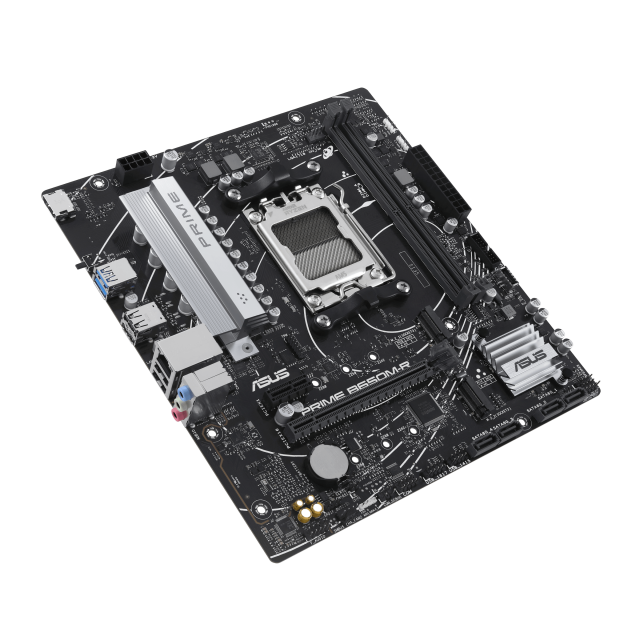

Motherboard ASUS PRIME B650M-R socket AM5, 2xDDR5
Ref. number: ASUS-MB-PRIME-B650M-R
View availability
Шереметя
София-ул.Марин Русев 6А
Motherboard ASUS PRIME B650M-R socket AM5, 2xDDR5
View availability
Шереметя
София-ул.Марин Русев 6А
Ref. number: ASUS-MB-PRIME-B650M-R
Online leasing
monthly payment | monthly payment | |
---|---|---|
3 payments |
|
- |
6 payments |
|
|
9 payments |
|
|
12 payments |
|
|
15 payments |
|
|
24 payments |
|
|
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB1H30-M0EAY0 |
Barcode | 4711387429761 |
CPU Socket |
AM5
|
Chipset |
AMD B650
|
CPU supports |
AMD 7000 Series Processors
AMD 8000 Series Processors
AMD 9000 Series Processors
|
Memory Standard |
DDR5
|
Maximum Memory Supported |
96 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
7200(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
Integrated LAN |
1 x Realtek 2.5Gb Ethernet port
|
Integrated Wi-Fi |
No
|
PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode)
|
PCI Express x4 | |
PCI-E x1 |
1
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA 6Gb/s
|
M2 socket |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
|
Raid support |
0,1,10
RAID 0/1/10 for M.2 NVMe
|
Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|

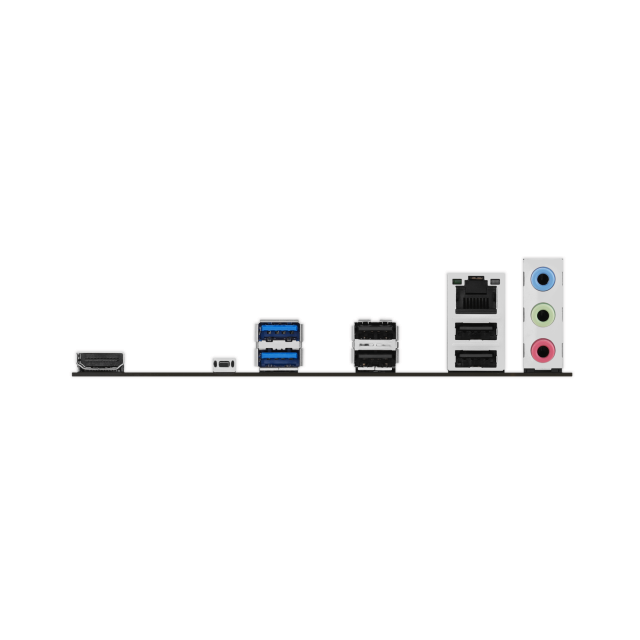

Connectors |
1 x HDMI port
1 x RJ-45
3 x Audio jacks
1 x BIOS Flashback Button
|
USB Ports |
4 x USB 2.0
2 x USB 5Gbps ports Type-A
|
Dimension |
Micro ATX - 23.6 x 22.1 cm
|
Other | |
Weight | 0.804 kg |
