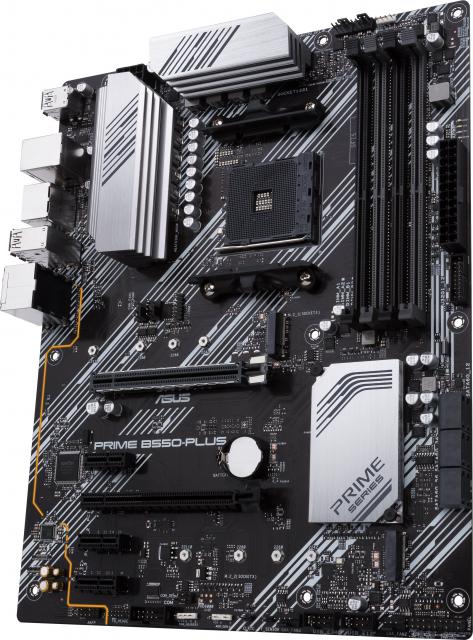

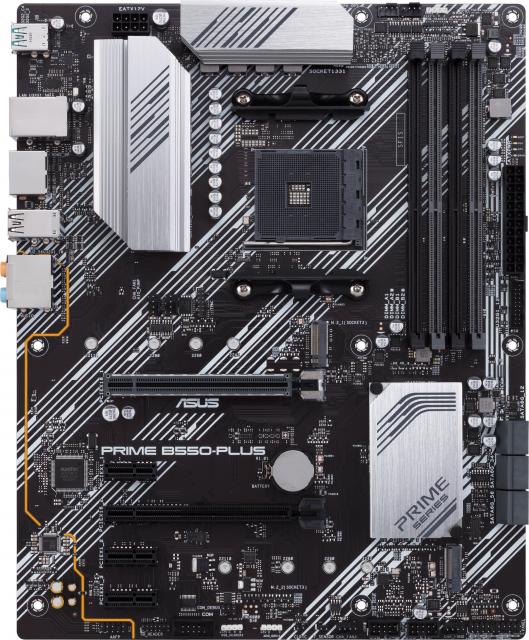

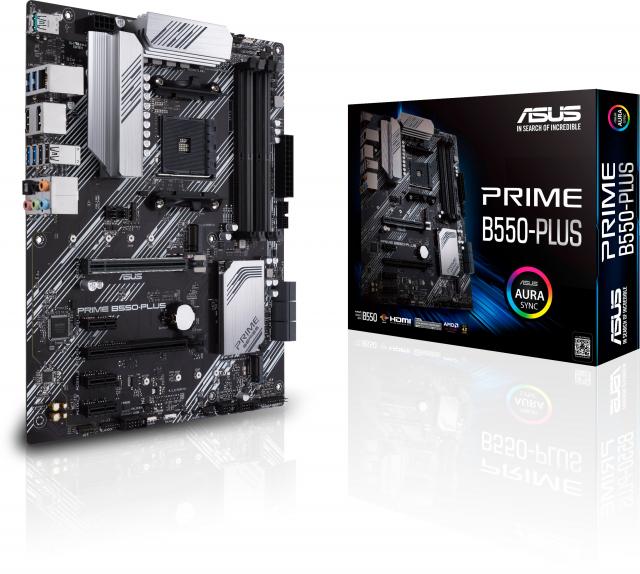

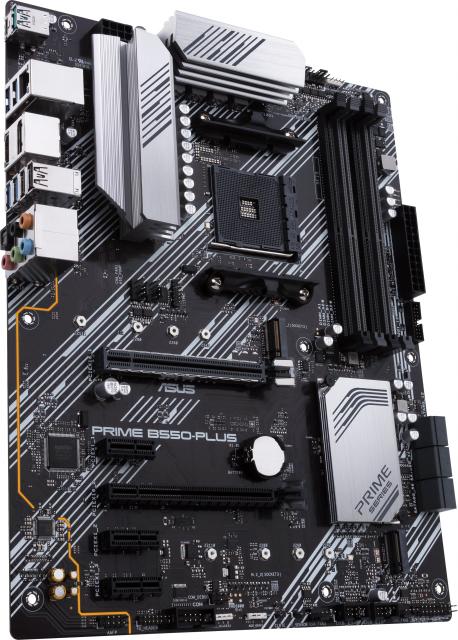

Motherboard ASUS PRIME B550-PLUS socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2
PRIME
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
Manufacturer | ASUS |
Warranty | 36 months |
Product code | 90MB14U0-M0EAY0 |
Barcode | 4718017782340 |
CPU Socket |
AM4
|
Chipset |
AMD B550
|
CPU supports |
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
128 GB
|
Number of Memory Slots |
4
|
Frequency Memory |
4600(OC) MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Realtek ALC887
|
Integrated LAN |
Realtek RTL8111H chip (10/100/1000 Mbit) + ASUS Lan Guard
|
Integrated Wi-Fi | |
PCI-E x16 |
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0/2.0 x16
|
PCI Express x4 | |
PCI-E x1 |
3
|
PCI-E slots | |
Interface Serial ATA |
6 x SATA3 6.0 Gb/s
|
M2 socket |
1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 PCIE 3.0 x4 and SATA modes
1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support)
|
Raid support |
0,1,10
|
Power Connector |
1 x 24-pin;1 x 8-pin
|

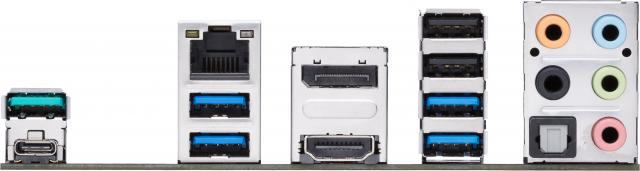

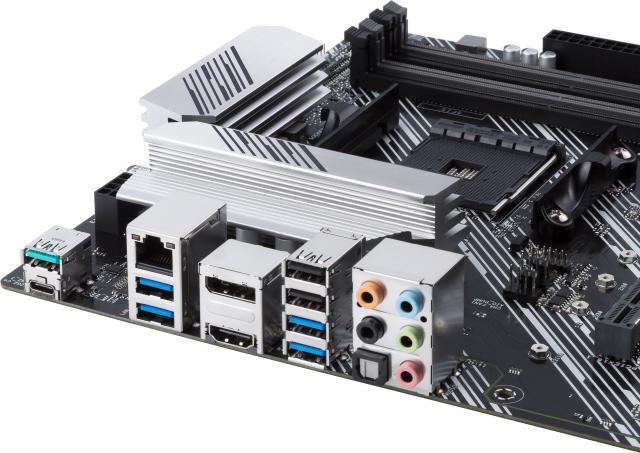

Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x optical S/PDIF Out connector
5 x Audio jacks
|
USB Ports |
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen2
2 x USB 2.0
|
Dimension | |
Other |
Bios: 256 Mb Flash ROM, UEFI AMI BIOS
|
