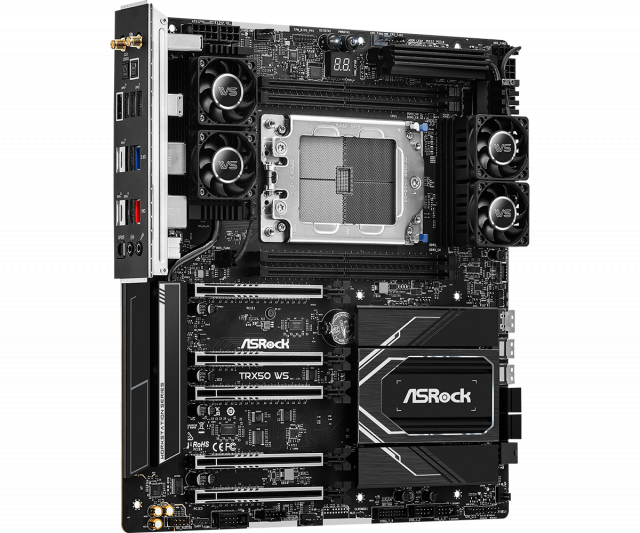

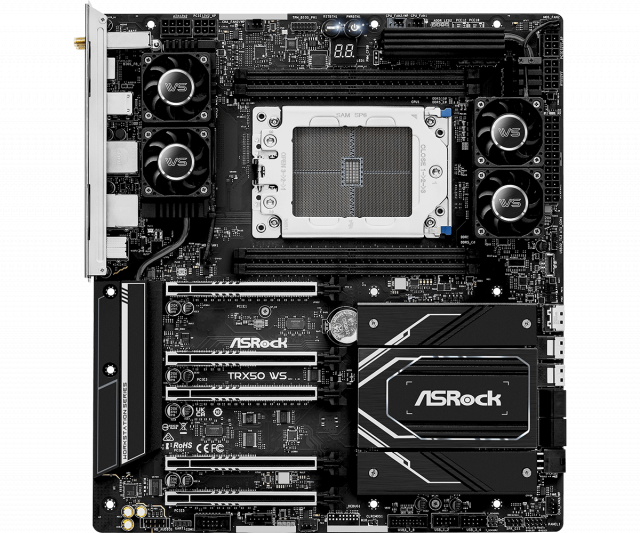

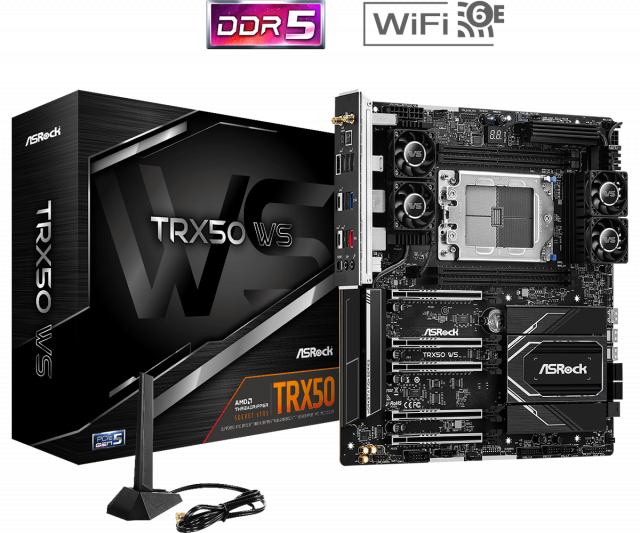

Motherboard ASROCK TRX50 WS, Socket sTR5, ATX, 4xDDR5
Ref. number: ASR-MB-TRX50-WS
limited availability (up to 3)
View availability
Шереметя
Motherboard ASROCK TRX50 WS, Socket sTR5, ATX, 4xDDR5
limited availability (up to 3)
View availability
Шереметя
Ref. number: ASR-MB-TRX50-WS
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
‧Supports AMD Socket AM5 RyzenTM 7000 Series Processors
‧16+2+1 Phase SPS Power Design
‧4 x DDR5 DIMMs, supports up to 6600+(OC)
‧1PCIe5.0x16,1PCIe3.0x16,1PCIe3.0x1 10USB3.2Gen1(6Rear,4Front)
‧Graphics Output Options: 1 HDMI, 1 DisplayPort 8 USB 2.0 (4 Rear, 4 Front)
‧7.1CH HDAudio with ContentProtection (RealtekALC1220AudioCodec), NahimicAudio
‧1 Blazing M.2 (PCIe Gen5x4)
‧3 Hyper M.2, 4SATA3
‧1 USB 3.2 Gen 2 Type-A, 10 USB 3.2 Gen 1, 8 USB 2.0
‧Realtek 2.5GLAN, Realtek1GLAN
‧802.11ax Wi-Fi 6E + Bluetooth
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | TRX50 WS |
| Barcode | 4710483944529 |
| CPU Socket |
sTR5
|
| Chipset |
AMD TRX50
|
| CPU supports |
7th Series AMD Threadripper and Threadripper PRO processors
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
1 TB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7600(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
| Integrated LAN |
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
|
| Integrated Wi-Fi |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2
|
| PCI-E x16 |
2 x PCIe 4.0 x16 (x16 or dual x8)
3 x PCIe 5.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode
2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
|
| Raid support |
0,1,10
RAID 0/1/10 for M.2 NVMe
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector)
|

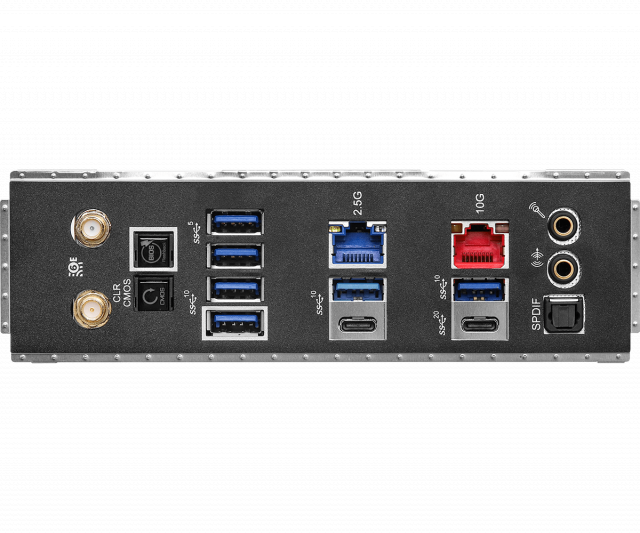

| Connectors |
2 x RJ-45
1 x optical S/PDIF Out connector
2 x Аudio jacks
1 x BIOS Flashback Button
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 3.2 Gen 2
1 x USB Type-C 10Gbps
1 x USB Type-C 20Gbps
|
| Dimension |
Extended ATX - 30.5 x 27.7 cm
|
| Other | |
| Weight | 0.000 kg |
