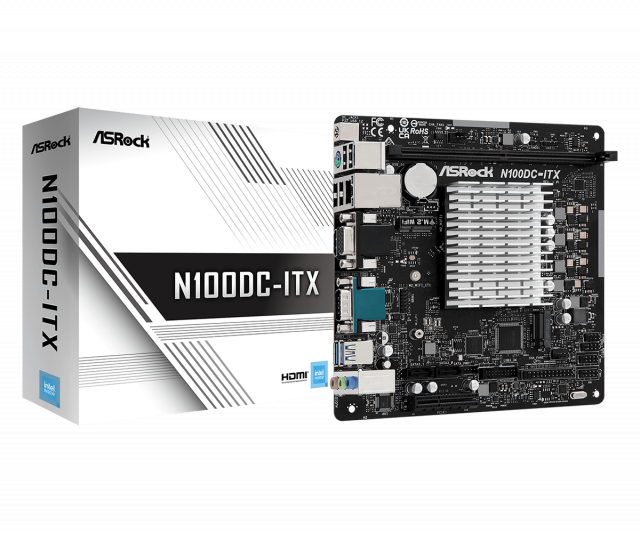

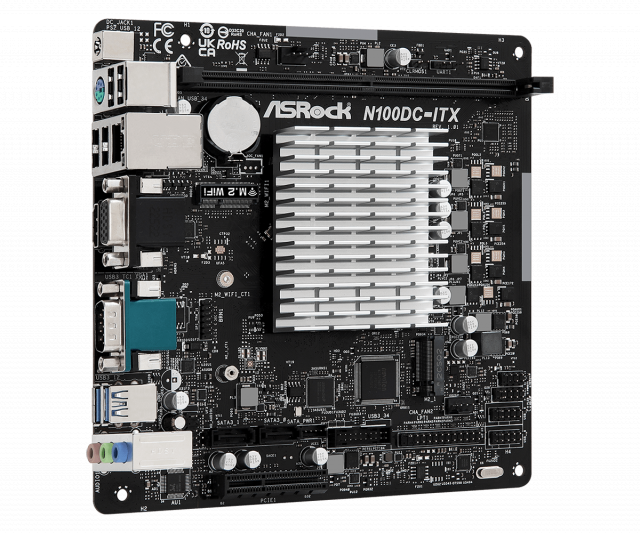

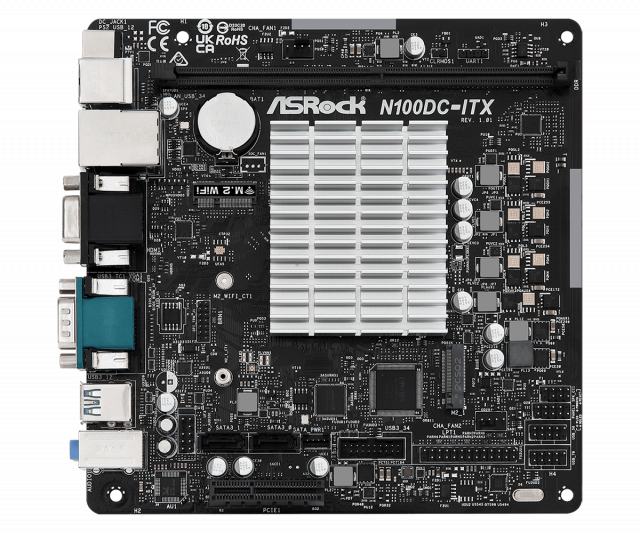

Motherboard ASROCK N100DC-ITX, Intel® Quad-Core Processor N105, Mini-ITX
Ref. number: ASR-MB-N100DC-ITX
not available
View availability
Няма наличност
Motherboard ASROCK N100DC-ITX, Intel® Quad-Core Processor N105, Mini-ITX
not available
View availability
Няма наличност
Ref. number: ASR-MB-N100DC-ITX
Client
w/ VAT
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
Fast and secure delivery
14 day return policy
N100DC-ITX
- Intel® Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | N100DC-ITX |
| Barcode | 4710483943188 |
| CPU Socket | |
| Chipset | |
| CPU supports |
Intel® Quad-Core Processor N100
|
| Memory Standard |
DDR4
|
| Maximum Memory Supported |
32 GB
|
| Number of Memory Slots |
1
|
| Frequency Memory |
3200 MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Integrated LAN |
Realtek RTL8111GR chip (10/100/1000 Mbit)
|
| Integrated Wi-Fi |
No
|
| PCI-E x16 |
1 x PCIe 3.0 x4
|
| PCI Express x4 | |
| PCI-E x1 | |
| PCI-E slots | |
| Interface Serial ATA |
2 x SATA3 6.0 Gb/s
|
| M2 socket |
1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode
|
| Raid support | |
| Power Connector |
1 x 24 pin ATX
|

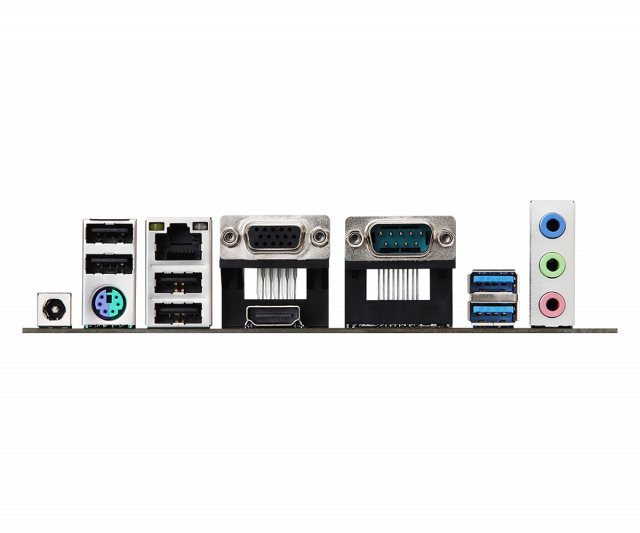

| Connectors |
1 x VGA
1 x HDMI port
1 x RJ-45
3 x Audio jacks
2 x SMA antenna connectors
1 x Serial Port: COM1
|
| USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
| Dimension |
Mini ITX - 17.0 x 17.0 cm
|
| Weight | 0.000 kg |
