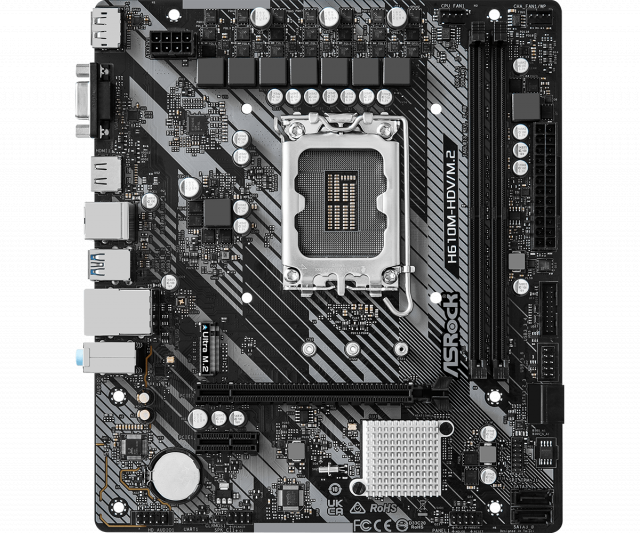

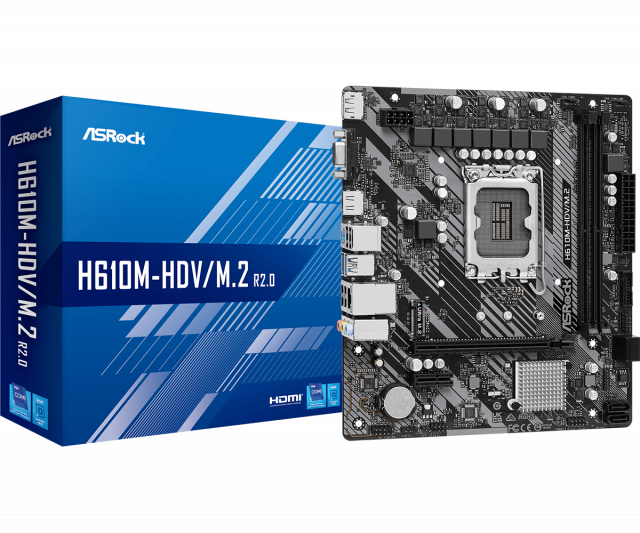

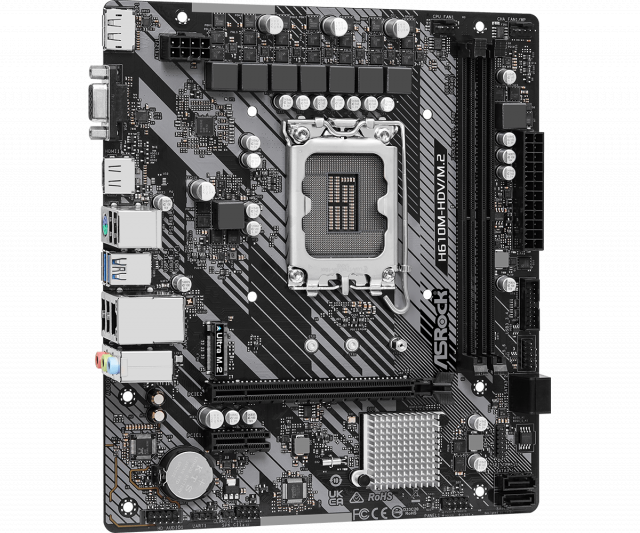

Motherboard ASRock H610M-HDV/M.2, LGA1700, DDR4, mATX
H610M-HDV/M.2
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 4 USB 3.2 Gen1 (2 Rear, 2 Front)
5 USB 2.0 (2 Rear, 3 Front) - Intel® Gigabit LAN
Manufacturer | ASROCK |
Warranty | 36 months |
Product code | H610M-HDV/M.2 R2.0 |
Barcode | 4710483939860 |
CPU Socket |
1700
|
Chipset |
Intel H610
|
CPU supports |
12th Generation Intel
13th Generation Intel
|
Memory Standard |
DDR4
|
Maximum Memory Supported |
64 GB
|
Number of Memory Slots |
2
|
Frequency Memory |
3200 MHz
|
Support Dualchannel |
Yes
|
Integrated Audio |
Supports Surge Protection
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
|
Integrated LAN |
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Intel® Gigabit LAN
|
Integrated Wi-Fi | |
PCI-E x16 |
1 x PCIe 4.0 x16
|
PCI Express x4 | |
PCI-E x1 |
2
|
PCI-E slots | |
Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
M2 socket |
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) modes
|
Raid support | |
Power Connector |
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
|
USB Ports |
2 x USB 3.2 Gen1
4 x USB 2.0
|
Dimension |
Micro ATX - 24.4 x 20.1 cm
|
Other | |
Connectors | |
Weight | 0.000 kg |
