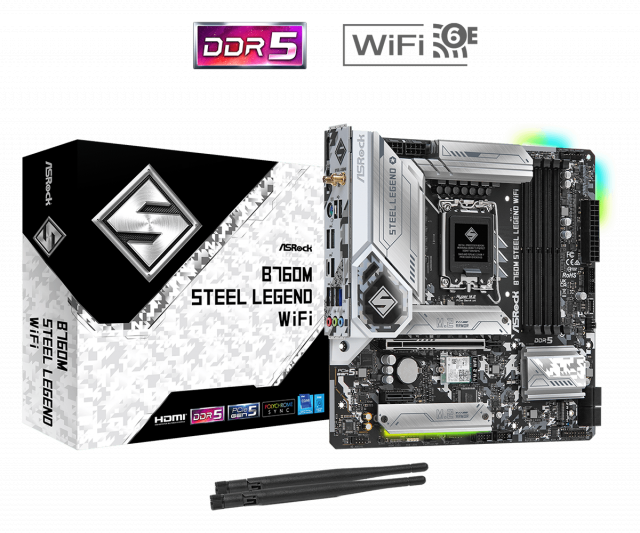

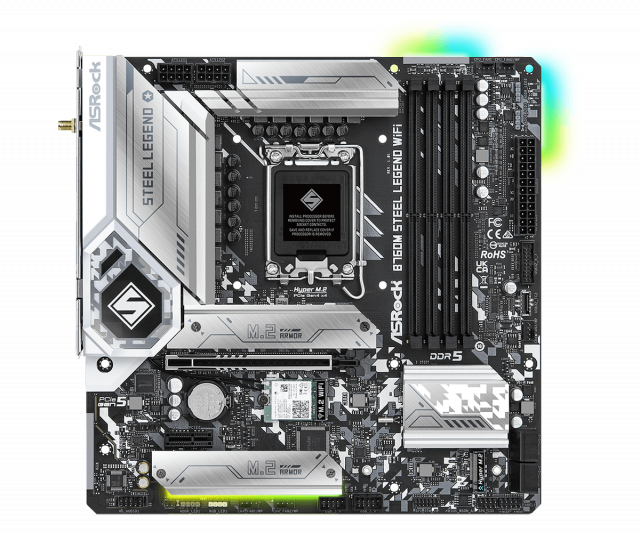

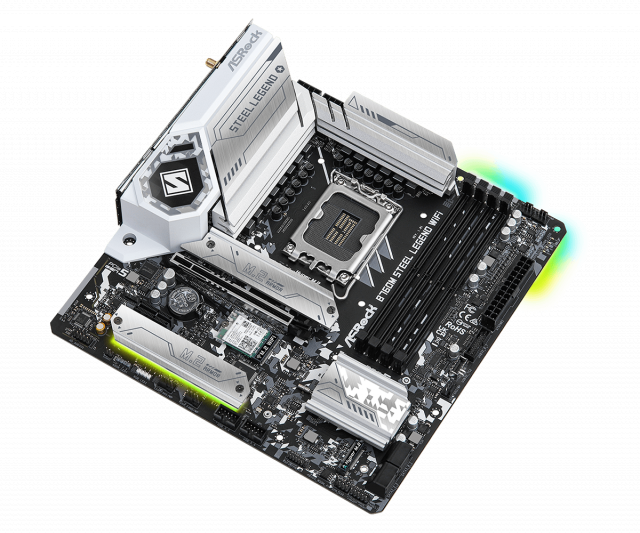

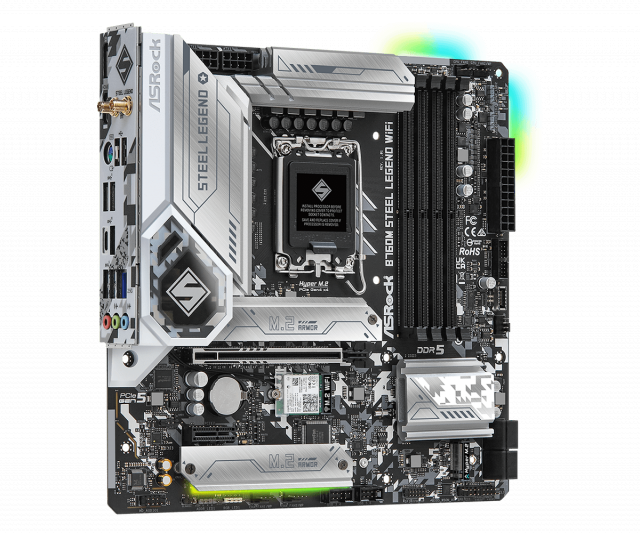

Motherboard ASRock B760M Steel Legend WIFI, LGA1700, DDR5, mATX
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
| Manufacturer | ASROCK |
| Warranty | 36 months |
| Product code | B760M STEEL LEGEND WIFI |
| Barcode | 4710483941795 |
| CPU Socket |
1700
|
| Chipset |
Intel B760
|
| CPU supports |
12th Generation Intel
13th Generation Intel
14th Generation Intel
|
| Memory Standard |
DDR5
|
| Maximum Memory Supported |
128 GB
|
| Number of Memory Slots |
4
|
| Frequency Memory |
7200(OC) MHz
|
| Support Dualchannel |
Yes
|
| Integrated Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
Nahimic Audio
|
| Integrated LAN |
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
|
| Integrated Wi-Fi |
802.11ax Wi-Fi 6E Module
Bluetooth 5.3
|
| PCI-E x16 |
1 x PCIe 5.0 x16
|
| PCI Express x4 | |
| PCI-E x1 |
1
|
| PCI-E slots | |
| Interface Serial ATA |
4 x SATA3 6.0 Gb/s
|
| M2 socket |
2 x Hyper M.2 Socket (M2_2,3 Key M), supports type 2280 PCIe Gen4x4
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
|
| Raid support |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
| Power Connector |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|

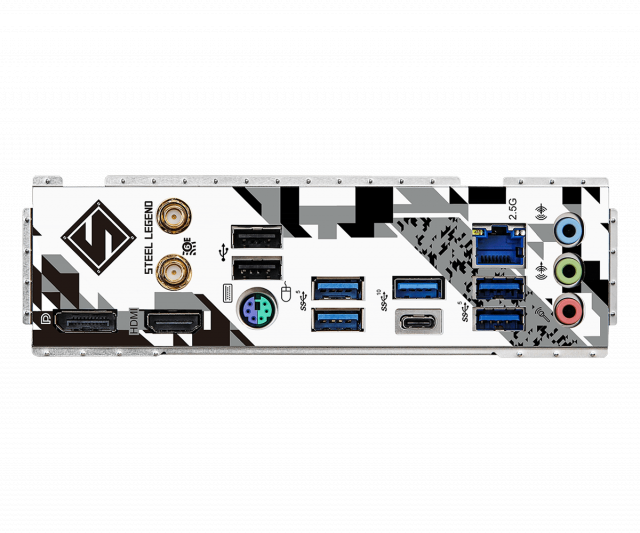

| Connectors |
1 x HDMI port
1 x Display Port
1 x RJ-45
1 x PS/2 Mouse/Keyboard
3 x Audio jacks
2 x SMA antenna connectors
|
| USB Ports |
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen 1
2 x USB 2.0
|
| Dimension |
Micro ATX - 24.4 x 24.4 cm
|
| Other | |
| Weight | 0.000 kg |
