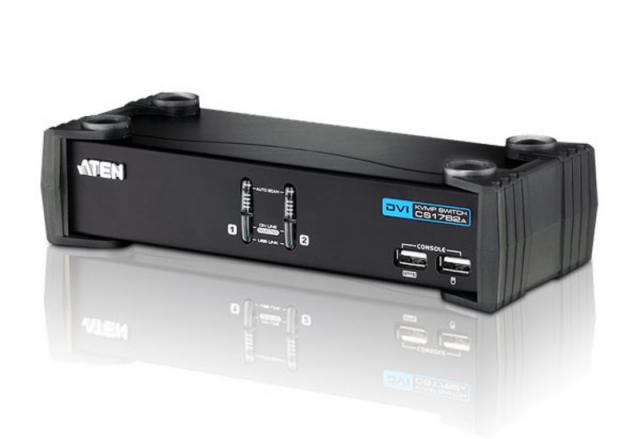

KVMP switch ATEN CS1762A-AT 2-port

CubiQ ™ CS1764A combines in one device 2-port KVM switch for computers with DVI video and 2-port USB 2.0 hub
to divide the periphery between them.
In addition, the model supports ATEN Video DynaSync ™ technology that optimizes resolutions as well as power on
detection for automatic switching to another port if there is no power supply at the moment.
As a KVM switch, the CS1764A allows the user full control of 2 computers from a single USB keyboard set
and a mouse and a monitor. Each of the computers can use the included USB peripherals (one computer at a time).

1 USB console controls 2 DVI computers and 2 additional USB 2.0 devices
2-port USB 2.0 built-in hub
Full compatibility with USB 2.0 specifications

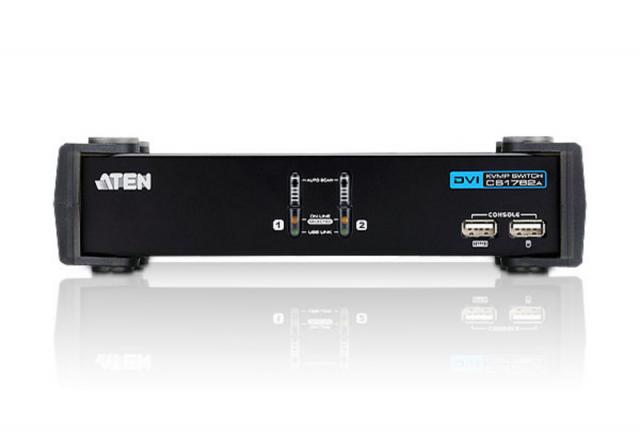

Switch via front panel buttons and keyboard shortcuts
Supports sound - full bass response support provides a rich experience for 2.1 channel surround systems
Multi-platform support - Windows, Linux, Mac and Sun.
Excellent video quality - 1920 x 1200, 60Hz; DDC2B
Independent switching of KVM, USB and Audio focus
Supports digital and analog DVI monitors - full compatibility with DVI specifications
HDCP compliant
Video DynaSync ™ - stores EDID (Extended Display Identification Data) information on the console monitor to optimize the resolution
Power on detection - if one of the computers is turned off, CS1764A will automatically switch to the next available
Mouse port console emulation / bypass option, supports most mouse drivers and multifunction mice
Sun / Mac keyboard support and emulation *
Auto Scan mode for monitoring all computers
Supports firmware update via USB

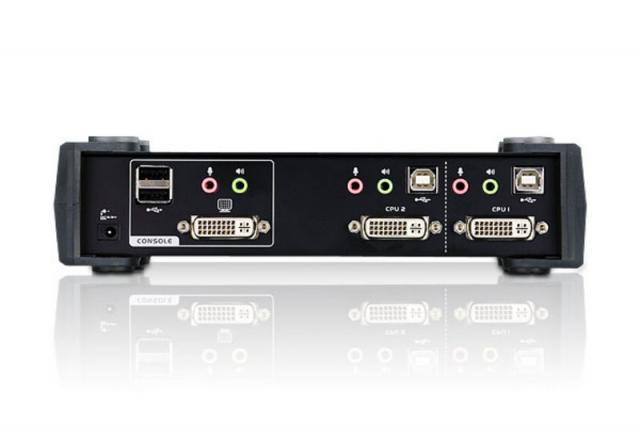

Console ports 2 x USB Type A Female
1 x DVI-I Female (White)
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM ports 2 x USB Type B Female
2 x DVI-I Female (White)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
