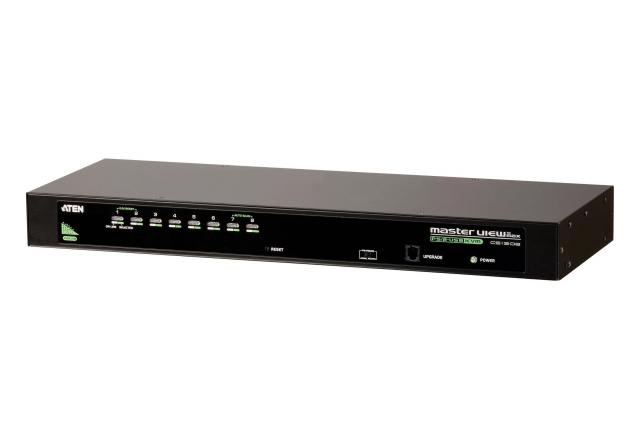

KVM Switch ATEN CS1308, 8-Port, PS/2-USB, VGA
KVM Switch ATEN CS1308, 8-Port, PS/2-USB, VGA
w/ VAT
Online leasing
|
monthly payment
|
monthly payment |
|
|---|---|---|
| 3 payments |
|
- |
| 6 payments |
|
|
| 9 payments |
|
|
| 12 payments |
|
|
| 15 payments |
|
|
| 24 payments |
|
|
- One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers
- Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

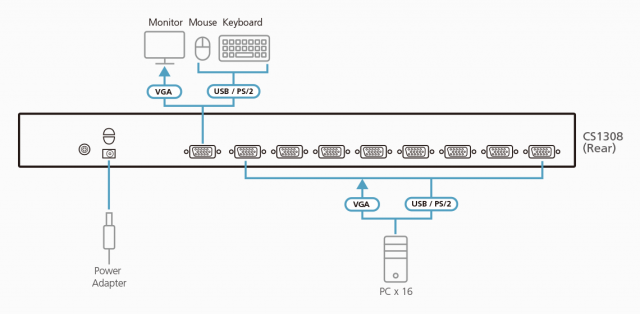

Computer Connections:
Direct: 8
Maximum: 64 (via Cascade)
Port Selection: OSD, Hotkey, Pushbutton

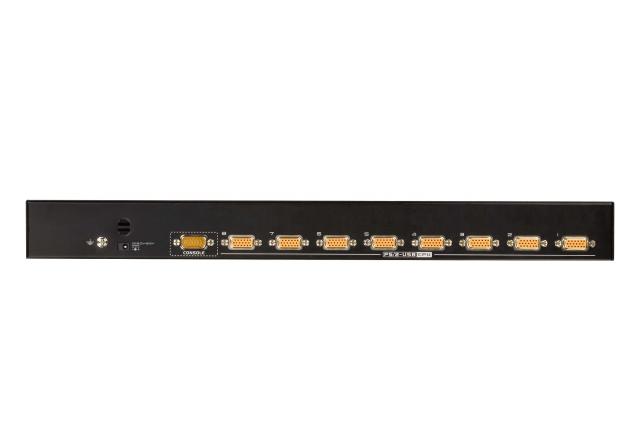

Connectors:
Console Ports: 1 x SPHD-18 Male (Yellow)
KVM Ports: 8 x SPHD-15 Female (Yellow)
Firmware Upgrade: 1 x RJ-11 Female (Black)
Power: 1 x DC Jack

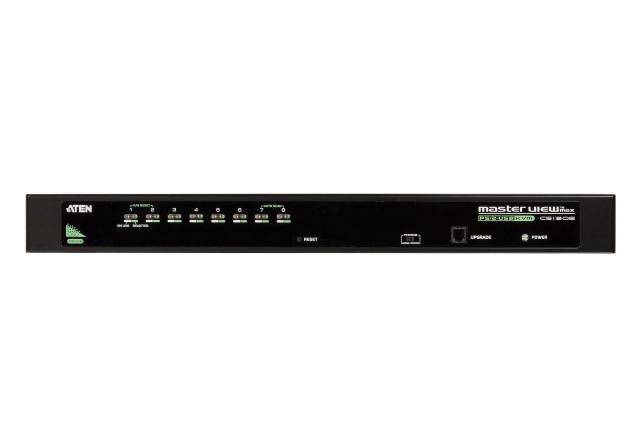

Switches:
Ports: 8 x Pushbutton
Firmware Upgrade: 1 x Slide
LEDs:
Online: 8 (Orange)
Selected: 8 (Green)
Power: 1 (Dark Green)
Emulation:
Keyboard / Mouse: PS/2, USB
Video: 2048 x 1536; DDC2B
Dimensions: 43.72 x 16.13 x 4.40 cm
| Manufacturer | ATEN |
| Warranty | 24 months |
| Product code | CS1308-AT-G |
| Barcode | 4710423775916 |
| Ports |
8
|
| Ports type |
PS/2
VGA
3.5mm jack
RJ-11
SPHD
|
| Cables |
No
|
| Audio |
Yes
|
| Weight | 1.890 kg |
Quantity discounts
