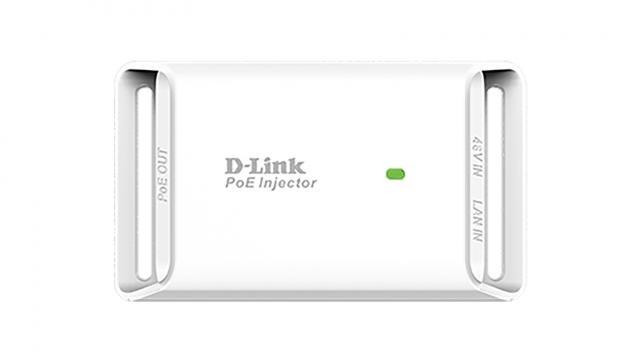

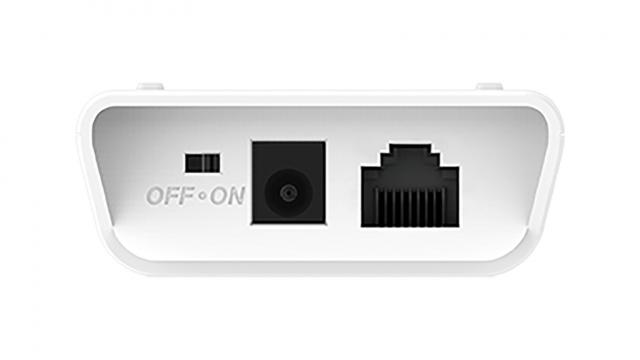

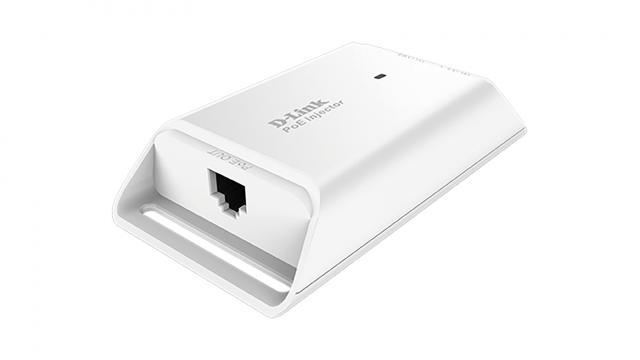

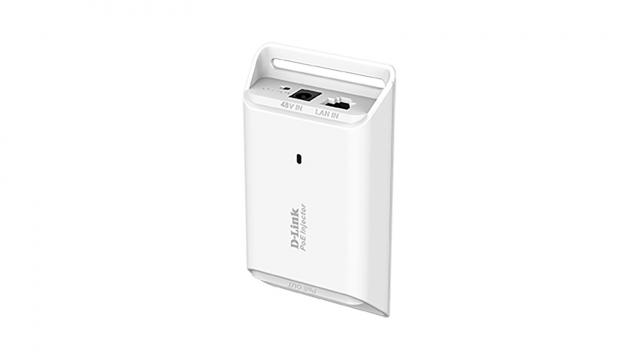

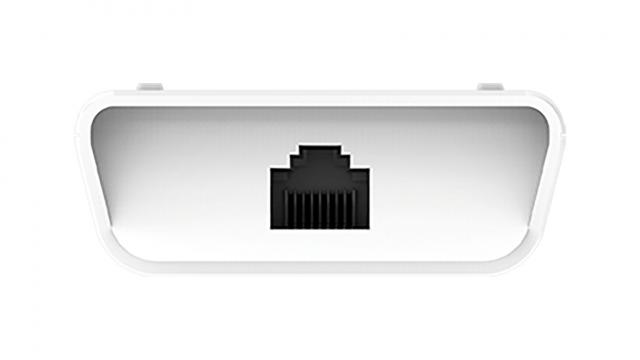

1-Port Gigabit PoE Injector
- 10/100/100BASE-T
- Half-/Full-Duplex
- 802.3/3u/3ab compliant
-including EURO/UK AC Adapter, Output 48V DC/0.4A
- up to 15.4 Watt Output, 802.3af compliant
- Injects power over unused pairs (4, 5, 7, 8)
- white housing
Manufacturer | D-Link |
Warranty | 24 months |
Product code | DPE-101GI |
Barcode | 790069341335 |
Ports |
2 x RJ-45
|
Standard |
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Ethernet;IEEE 802.3ab 1000Base-T Ethernet;IEEE 802.3at PoE;IEEE 802.3af PoE
|
Operating temperature |
0 to 50°C
|
LED Indicators |
Power; PoE
|
PoE |
Yes
|
Dimension (mm) |
109.8 x 62.2 x 24.5 mm
|
Weight | 0.065 kg |
DPE_101GI_B1_Datashe... | PDF, 308.8 KB | Download |
