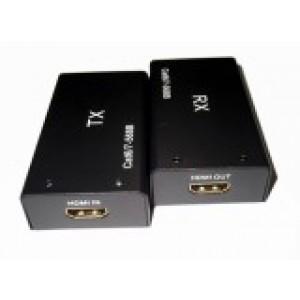

HDMI Extender (amplifier) ESTILLO HDEX002M1, amplifies HDMI signal up to 60 m via UTP cable
HDMI Extender (amplifier) ESTILLO HDEX002M1, amplifies HDMI signal up to 60 m via UTP cable
w/ VAT
HDMI Extender by single CAT5E/6 till 60 m
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
1.One pair as a full functional module, no need of setting.
2.One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
3. Follow the standard of IEEE-568B.
4.Transmission distance can be up to 50 meters for 1080p using CAT-6 Cable.
5.Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
6.Compact size.
7.Support HDMI1.2a.
8.Support highest video resolution 1080p.
9.Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
10. Support 8bit per channel (24bit all channel) deep color.
11. Support uncompressed 2 channel audio such as LPCM
| Manufacturer | ESTILLO |
| Warranty | 12 months |
| Product code | HDEX007M1 |
| Barcode | 3807000004291 |
| Type accessory |
Adapter
|
| Connector type 1 |
HDMI Socket
|
| Connector type 2 |
RJ-45
|
| Data Transfer Rate | |
| Gold-Plated | |
| Max. Resolution |
1080p
|
| Filter | |
| Length | |
| Color |
Black
|
| Weight | 0.000 kg |
