Fan Noctua NF-A14 industrial PPC - 3000PWM, 140 mm
Ref. number: NOCTUA-FAN-NF-A14X25-IPPC
limited availability (up to 3)
View availability
София-ул.Марин Русев 6А
Fan Noctua NF-A14 industrial PPC - 3000PWM, 140 mm
limited availability (up to 3)
View availability
София-ул.Марин Русев 6А
Ref. number: NOCTUA-FAN-NF-A14X25-IPPC
Client
w/ VAT
w/ VAT
Fast and secure delivery
14 day return policy
Size: 140x140x25 mm
Mounting hole spacing: 124.5x124.5 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 40cm
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO
Material: Fibre-glass reinforced polyamide

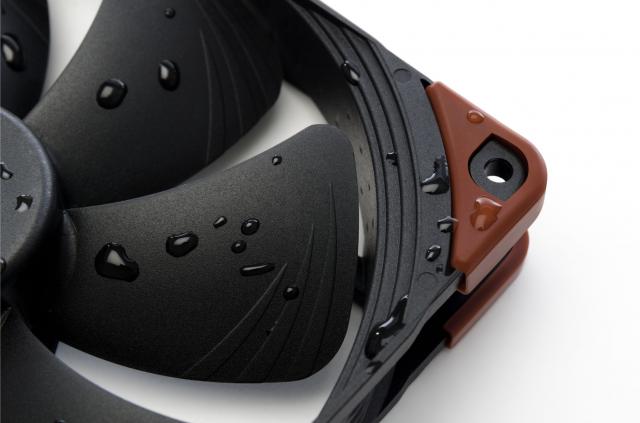

Ingress protection: IP52
Motor type: Three-phase
Rotational speed (+/- 10%): 3000 RPM
Min. rotational speed (PWM, +/-20%): 800 RPM
Airflow: 269.3 m³/h
Acoustical noise: 41.3 dB(A)
Max. input power: 6.6 W
Max. input current: 0.55 A
Operating voltage: 12 V
MTTF: > 150.000 h
| Manufacturer | Noctua |
| Warranty | 72 months |
| Product code | NF-A14-iPPC-3000-PWM |
| Barcode | 4716123315452 |
| Application |
Cooler box
|
| Dimension |
140
|
| Speed fan |
300 - 1500 RPM
|
| Connector |
4 PIN
|
| Noise Level |
24.6 dB
|
| CFM |
158.6
|
| Other | |
| Weight | 0.340 kg |
