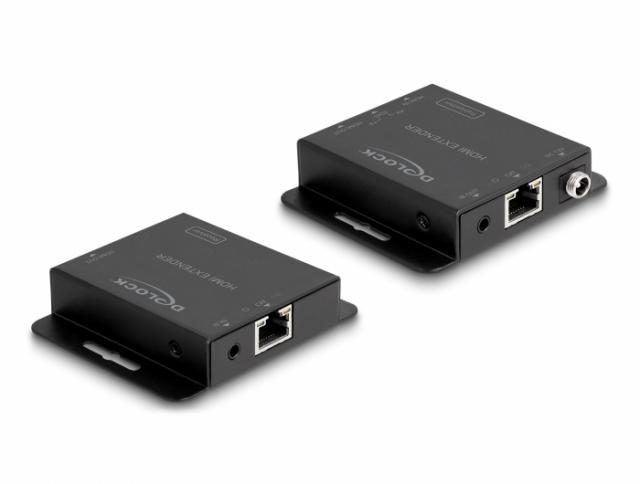

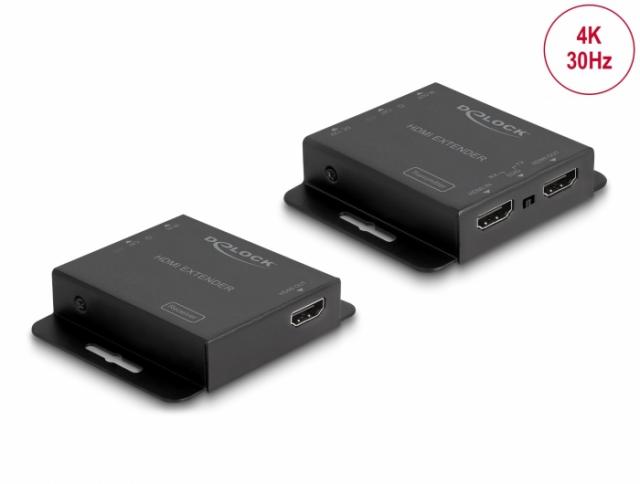

Delock HDMI Extender Set over Cat.6 cable 4K 30 Hz

This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over
a single network cable. At 4K 30 Hz resolution, distances of up to 40 m are possible, and at 1080p resolution, 70 m
can be achieved. The set has wide applications in conference rooms, for tele-education or on large screens.

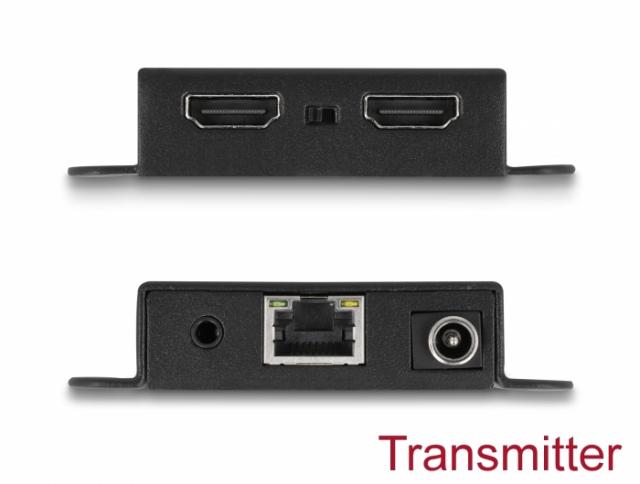

Connectors Transmitter:
Input:
1 x HDMI-A female
1 x DC 12 V power connector screwable
Output:
1 x RJ45 jack
1 x HDMI-A female
1 x 3.5 mm 3 pin stereo jack female (IR)

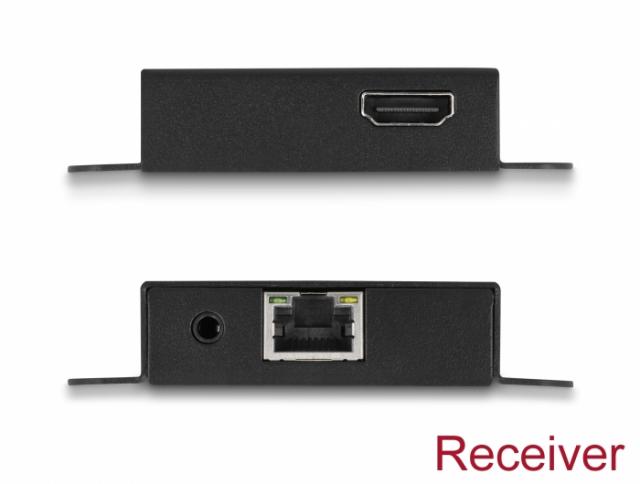

Connectors Receiver:
Input:
1 x RJ45 jack
1 x 3.5 mm 3 pin stereo jack female (IR)
Output:
1 x HDMI-A female
Transmission of audio and video signals
Transmission of IR signals 30 - 60 kHz
Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
Supports EDID und HDCP
Supports PoC (Power Over Cable)
Power consumption: max. 3.0 W
Metal housing
Wall-mount option
Colour: black
Dimensions (LxWxH): ca. 80 x 69 x 17 mm
