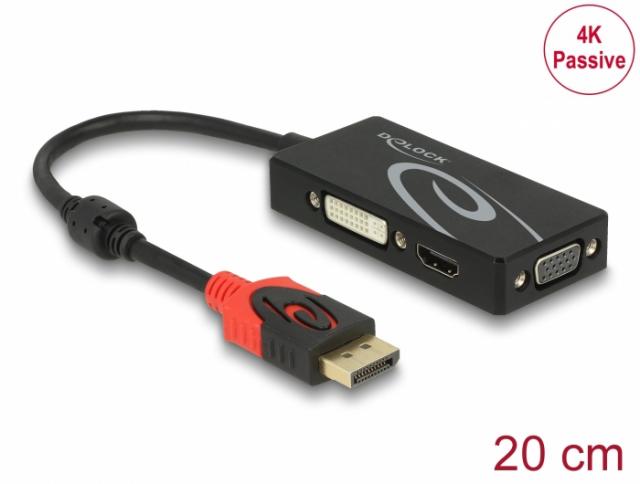

Delock Adapter DisplayPort 1.2 male > VGA / HDMI / DVI female 4K
Delock Adapter DisplayPort 1.2 male > VGA / HDMI / DVI female 4K
w/ VAT

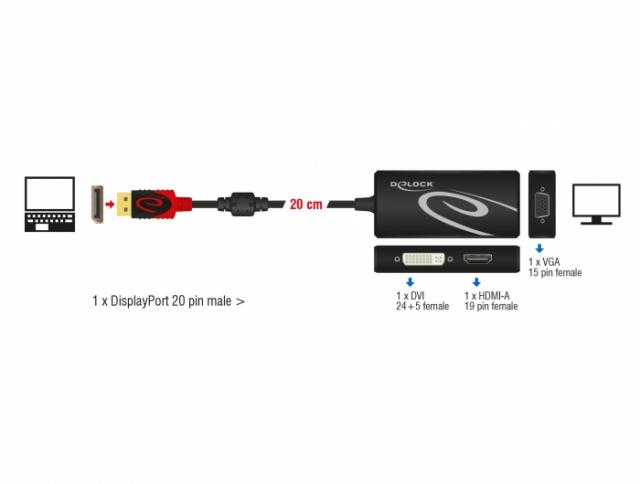

- Connectors:
1 x DisplayPort 20 pin male >
1 x VGA 15 pin female
1 x HDMI-A 19 pin female
1 x DVI-D (Single Link) 24+1 female
- Chipset: 2 x Parade PS8339 (HDMI + DVI), 1 x Analogix ANX9833 (VGA)
- DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
- DVI-D (Single Link) 24+1 port with nuts (VGA not wired)
- Passive converter (level shifter), suitable only for graphics cards with DP++ output
- Only 1 monitor to the adapter available
- Audio signal is transmitted only over HDMI
- HDMI / DVI specification:
Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
- Supports 3D displays (1080p @ 60 Hz)
- VGA specification:
- Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the connected hardware)
- 1 x ferrite core
- Cable length without connectors: ca. 20 cm
- Colour: black
- OS independent, no driver installation necessary
| Manufacturer | DeLock |
| Warranty | 24 months |
| Product code | 62902 |
| Barcode | 4043619629022 |
| Type accessory |
Adapter
|
| Connector type 1 |
DisplayPort Plug
|
| Connector type 2 |
HDMI Socket
VGA Socket
DVI male
|
| Data Transfer Rate | |
| Gold-Plated | |
| Filter | |
| Length |
0.20
|
| Color |
Black
|
| Weight | 0.100 kg |
