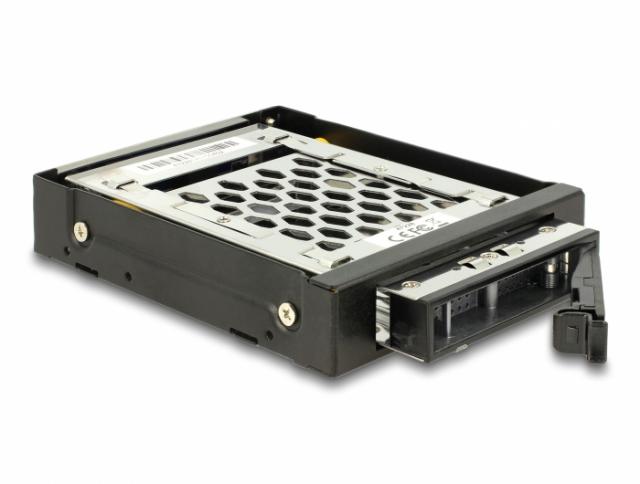

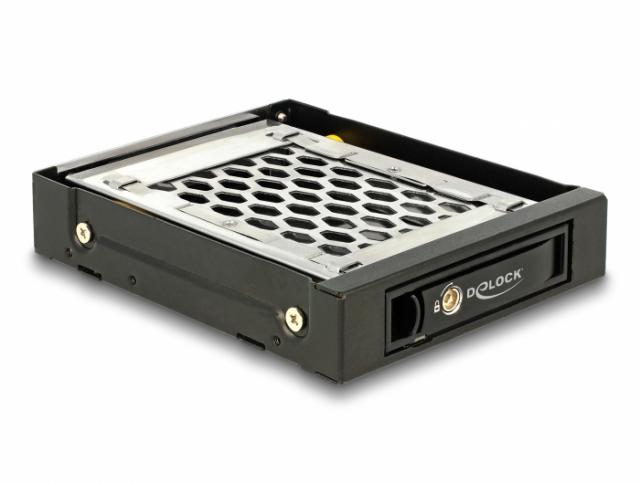

Delock 3.5″ Mobile Rack for 1 x 2.5″ SATA / SAS HDD / SSD with vibration protection

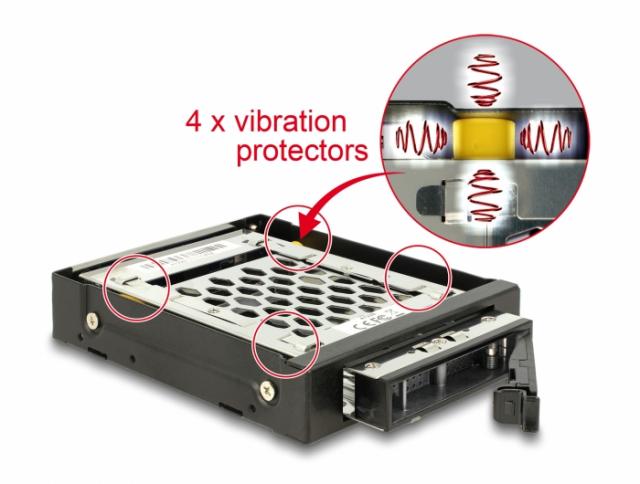

This solid metal mobile rack by Delock can be installed into a free 3.5″ bay of a PC and ensures a 360°
vibration protection against horizontal and vertical vibrations through the built-in rubber bumpers.
A 2.5″ SATA or SAS hard drive can be screwed into the frame. For operation with a SAS drive, a SAS
controller is required. The mobile rack is equipped with a key lock to prevent unauthorised access.
The hot swap function allows the exchange of the hard disk drive during operation. Furthermore the

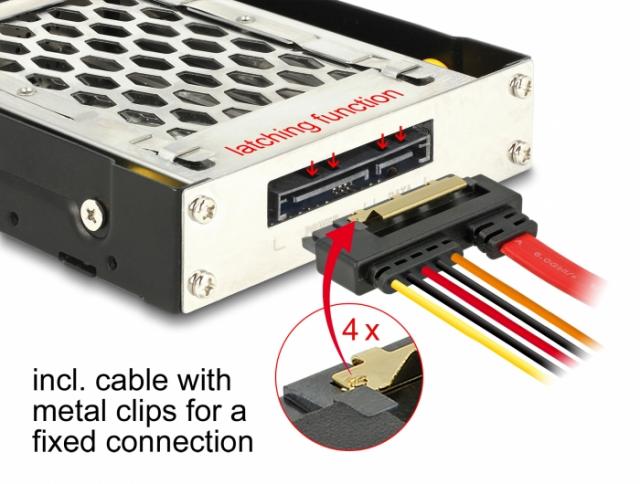

SATA plug on the outside of the device has a locking port, which will ensure the SATA cables click
into place, and are protected against vibrations. The mobile rack can be used wherever the PC is
subject to vibrations. As an additional inner tray for the fast hard disk change the item

For installation into an available 3.5″ bay
Connectors:
inside:
1 x SATA 6 Gb/s / SAS 12 Gb/s 29 pin receptacle

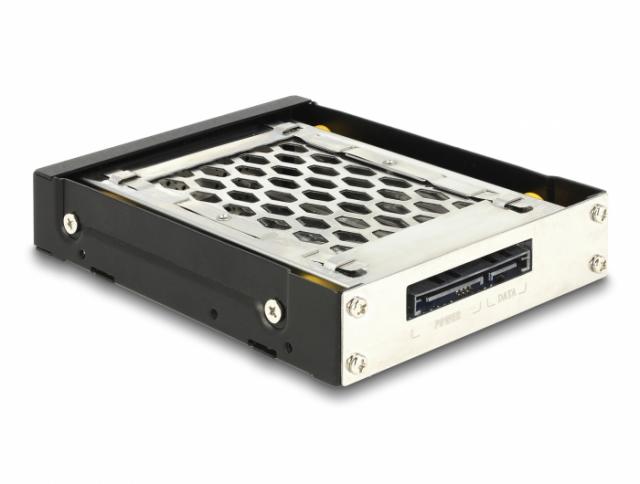

outside:
1 x SATA 6 Gb/s 22 pin plug with locking port
Suitable for 2.5″ SATA / SAS HDD / SSD:
HDD height up to 15 mm
supports 5 V HDD / SSD
Data transfer rate:
SATA up to 6 Gb/s
SAS up to 12 Gb/s
With key lock
Hot Swap
OS independent, no driver installation necessary
