Controller Estillo SATA PCI Express Card - 4 ports
Controller Estillo SATA PCI Express Card - 4 ports
w/ VAT

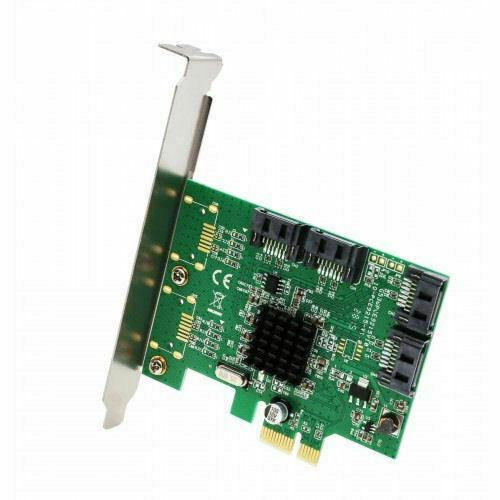

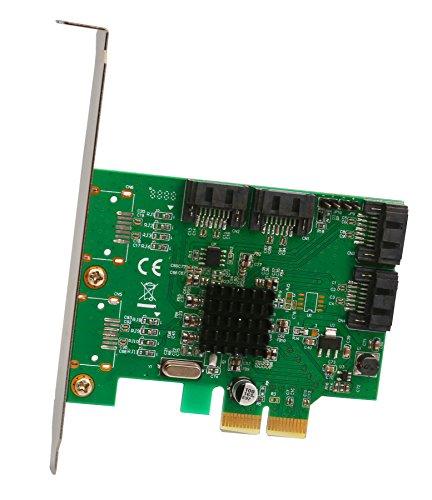

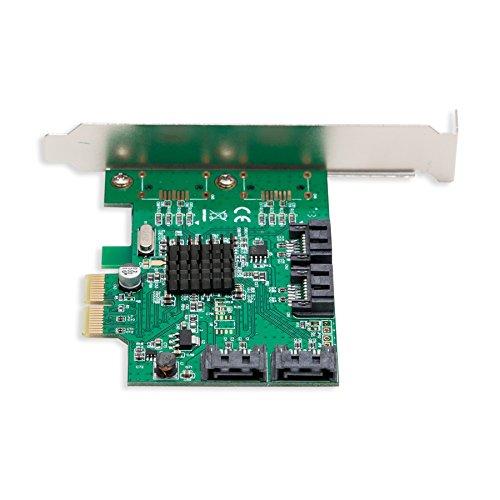

The PCI Express card by Delock expands a PC by four internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
Specification
• Connector:
internal:
4 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x4, V2.0
2 x pin header for PWR LED for indication of hard drive accessing
• Chipset: Marvell 88SE9230
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, RAID 1, RAID 10, Port Multiplier, HyperDuo Virtual Disk (Safe/Capacity)
• Supports HDD and SSD
• Supports Native Command Queuing (NCQ)
System requirements
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.7
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• LED cable
• Driver CD
• User manual
| Manufacturer | ESTILLO |
| Product code | CI-40-52-E3-1 |
| Barcode | 3807000007520 |
| Intarface |
PCI
|
| RAID |
Yes
|
| Connectors |
4x SATA3
|
| Weight | 0.110 kg |
